RM024-P10-C-01 Equivalent & Substitute Parts

Part Overview

The RM024-P10-C-01 is a General ISM > 1GHz RAMP Transceiver Module manufactured by Laird Connectivity Inc. This through-hole module operates at 2.4GHz with FHSS modulation and provides 500kbps data rate communication capability. The module features a U.FL connector for antenna connection and UART serial interface.

The RM024-P10-C-01 carries an Obsolete product status. Identification of equivalent substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this transceiver module.

Substiute Parts

RM024-P10-C-01

Laird Connectivity Inc.In Stock: 908RM024-P10-C-01 Datasheet

Current PartRFQ

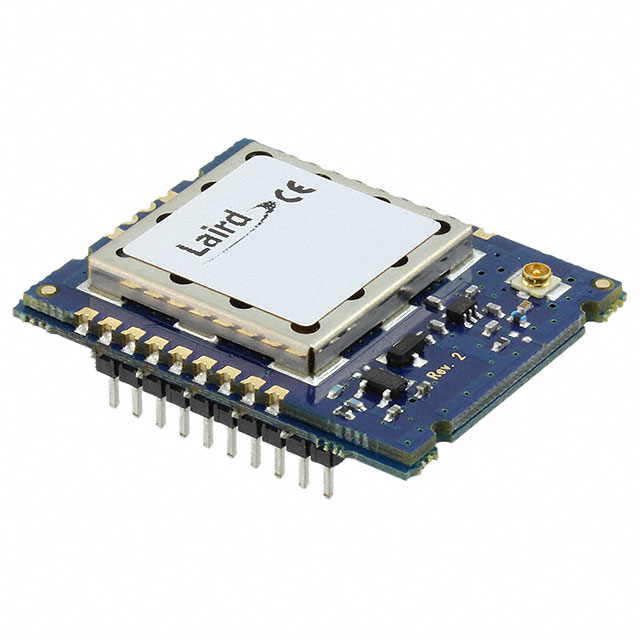

RM024-P10-C-30

Laird Connectivity Inc.In Stock: 2742RM024-P10-C-30 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RM024-P10-C-01 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications in the following categories:

RF and Communication Parameters: RF family (General ISM > 1GHz), protocol (RAMP), modulation scheme (FHSS), operating frequency (2.4GHz), data rate (500kbps), output power (18dBm), and receiver sensitivity (-95dBm) must be identical.

Interface and Connectivity: Serial interface type (UART) and antenna connector type (U.FL) must match exactly.

Power and Current Characteristics: Supply voltage range (2.3V ~ 3.6V), receiving current (36mA), and transmitting current (166mA) must be identical.

Physical and Environmental Specifications: Mounting type (Through Hole), operating temperature range (-40°C ~ 85°C), and package type (Module) must be equivalent.

The RM024-P10-C-30 meets all these criteria and qualifies as a direct substitute for the obsolete RM024-P10-C-01.

Parameter Comparison

Engineering Selection Recommendations

The RM024-P10-C-30 is the direct substitute for the obsolete RM024-P10-C-01. Both parts share identical electrical and mechanical specifications across all critical parameters including RF performance, power consumption, interface configuration, and environmental operating range.

Product Status Consideration: The RM024-P10-C-01 is classified as Obsolete, while the RM024-P10-C-30 maintains Active product status. This ensures long-term availability and continued manufacturer support for the RM024-P10-C-30.

Compliance Advantage: The RM024-P10-C-30 is RoHS Compliant, providing enhanced environmental compliance for new designs and production runs.

Inventory Availability: The RM024-P10-C-30 is available in significantly higher quantities (2716 Pcs) compared to the obsolete part, supporting both immediate and future procurement requirements.

Packaging Difference: The RM024-P10-C-01 is supplied in standard packaging, while the RM024-P10-C-30 is supplied in Bulk packaging. This difference does not affect electrical or mechanical compatibility.

Frequently Asked Questions (FAQ)

Q: Can the RM024-P10-C-30 be used as a direct replacement for the RM024-P10-C-01 in existing designs?

A: Yes. The RM024-P10-C-30 is electrically and mechanically identical to the RM024-P10-C-01 across all specified parameters. No design modifications are required for substitution.

Q: What is the difference between the RM024-P10-C-01 and RM024-P10-C-30?

A: The primary differences are product status (Obsolete vs. Active), packaging format (standard vs. Bulk), RoHS compliance status, and Moisture Sensitivity Level (MSL 1 vs. MSL 3). All RF, power, interface, and environmental specifications are identical.

Q: Are there any compatibility concerns with the U.FL antenna connector?

A: No. Both parts use identical U.FL through-hole antenna connectors. Existing antenna assemblies and PCB layouts are fully compatible with the substitute part.

Q: Does the Moisture Sensitivity Level difference affect substitution?

A: The MSL difference reflects different manufacturing or storage conditions but does not affect the electrical performance or functional compatibility of the module in application.

Q: Is the RM024-P10-C-30 suitable for new production designs?

A: Yes. The RM024-P10-C-30 is the recommended part for new designs due to its Active product status, RoHS compliance, and superior inventory availability.

Q: What is the base product number for these modules?

A: Both the RM024-P10-C-01 and RM024-P10-C-30 share the base product number RM024-P10, indicating they are variants of the same core transceiver module platform.
