RG2012P-682-D-T5 Equivalent & Substitute Parts

Part Overview

The RG2012P-682-D-T5 is a 6.8 kOhms ±0.5% thin film chip resistor manufactured by Susumu in 0805 (2012 Metric) package format. This component is rated for 0.125W (1/8W) power dissipation and meets automotive AEC-Q200 qualification standards with anti-sulfur construction. The part is actively produced and available in high volume (5276 pcs in stock). Equivalent and substitute parts are identified to support design flexibility, supply chain continuity, and performance optimization across applications requiring 6.8 kOhm resistive elements in compact surface-mount configurations.

Substiute Parts

RG2012P-682-D-T5

SusumuIn Stock: 5349RG2012P-682-D-T5 Datasheet

Current PartRFQ

RG2012N-682-D-T5

SusumuIn Stock: 5928RG2012N-682-D-T5 Datasheet

UpgradeRFQ

RG2012N-682-W-T1

SusumuIn Stock: 3120RG2012N-682-W-T1 Datasheet

UpgradeRFQ

RG2012P-682-B-T5

SusumuIn Stock: 58764RG2012P-682-B-T5 Datasheet

UpgradeRFQ

RG2012V-682-P-T1

SusumuIn Stock: 2130RG2012V-682-P-T1 Datasheet

UpgradeRFQ

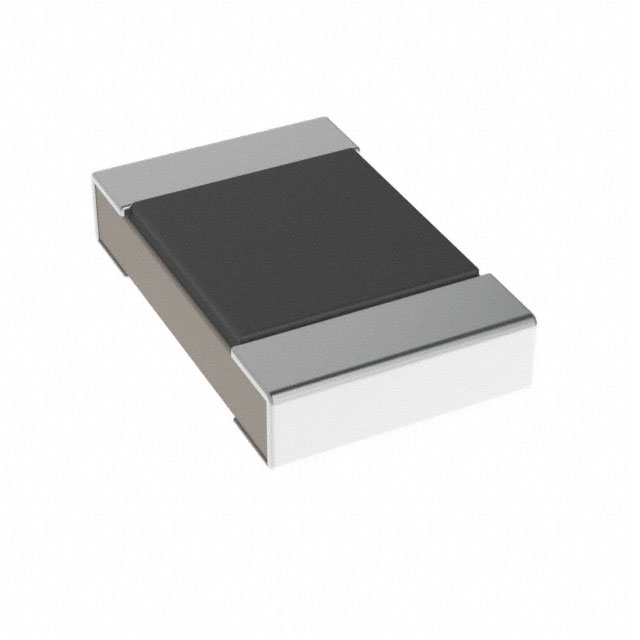

RS2012P-682-D-T5-3

SusumuIn Stock: 830RS2012P-682-D-T5-3 Datasheet

SimilarRFQ

ERA-6AED682V

Panasonic Electronic ComponentsIn Stock: 29295ERA-6AED682V Datasheet

DirectRFQ

RT0805DRD076K8L

YAGEOIn Stock: 4754RT0805DRD076K8L Datasheet

DirectRFQ

ERA-6AEB682V

Panasonic Electronic ComponentsIn Stock: 13332ERA-6AEB682V Datasheet

UpgradeRFQ

ERA-6APB682V

Panasonic Electronic ComponentsIn Stock: 1216ERA-6APB682V Datasheet

UpgradeRFQ

ERA-6ARB682V

Panasonic Electronic ComponentsIn Stock: 22679ERA-6ARB682V Datasheet

UpgradeRFQ

ERA-6ARW682V

Panasonic Electronic ComponentsIn Stock: 20146ERA-6ARW682V Datasheet

UpgradeRFQ

RT0805BRD076K8L

YAGEOIn Stock: 15474RT0805BRD076K8L Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RG2012P-682-D-T5 is determined by strict equivalence across the following critical parameters: resistance value (6.8 kOhms), package format (0805 / 2012 Metric), power rating (0.125W), composition (thin film), operating temperature range (-55°C ~ 155°C), and compliance certifications (AEC-Q200, ROHS3). Tolerance and temperature coefficient variations are permitted within the substitute categories, as these parameters define performance grades rather than functional compatibility. Packaging format (Tape & Reel vs. Cut Tape) does not affect electrical or mechanical substitution but reflects supply and handling differences. All listed substitutes maintain identical resistance, package dimensions, and thermal operating envelope.

Parameter Comparison

Engineering Selection Recommendations

Direct Equivalents (Same Tolerance ±0.5%)

The RG2012P-682-D-T5 is directly equivalent to ERA-6AED682V (Panasonic) and RT0805DRD076K8L (YAGEO) in all critical electrical parameters. Both parts maintain 6.8 kOhms resistance, ±0.5% tolerance, 0.125W power rating, and -55°C to 155°C operating range. ERA-6AED682V carries AEC-Q200 automotive qualification identical to the primary part. RT0805DRD076K8L does not carry AEC-Q200 rating and is suitable only for non-automotive applications. Both alternatives are available in high volume and ROHS3 compliant.

Susumu Series Upgrades (Same Manufacturer)

RG2012N-682-D-T5 provides improved temperature coefficient (±10ppm/°C vs. ±25ppm/°C) while maintaining ±0.5% tolerance and identical package dimensions. RG2012P-682-B-T5 offers tighter tolerance (±0.1%) with equivalent temperature coefficient. RG2012N-682-W-T1 combines superior tolerance (±0.05%) with improved temperature coefficient (±10ppm/°C). RG2012V-682-P-T1 represents the highest precision option with ±0.02% tolerance and ±5ppm/°C temperature coefficient. All Susumu variants maintain AEC-Q200 qualification and 0805 package compatibility.

Panasonic ERA-6A Series Alternatives

ERA-6AEB682V and ERA-6ARB682V both provide ±0.1% tolerance upgrade with AEC-Q200 rating. ERA-6ARB682V offers superior temperature coefficient (±10ppm/°C). ERA-6APB682V provides ±0.1% tolerance with intermediate temperature coefficient (±15ppm/°C). All Panasonic alternatives are AEC-Q200 qualified and ROHS3 compliant. Maximum seated height increases to 0.60mm compared to 0.50mm for Susumu parts, requiring PCB layout verification in space-constrained applications.

Susumu RS Series Alternative

RS2012P-682-D-T5-3 maintains electrical equivalence with ±0.5% tolerance and ±25ppm/°C temperature coefficient. This part lacks anti-sulfur construction feature present in RG series. Maximum seated height is 0.55mm, intermediate between RG and Panasonic variants. Suitable for applications where anti-sulfur protection is not required.

Frequently Asked Questions (FAQ)

Q: Can RG2012P-682-D-T5 be replaced with ERA-6AED682V in automotive applications?

A: Yes. Both parts are AEC-Q200 qualified, maintain identical 6.8 kOhms resistance, ±0.5% tolerance, 0.125W power rating, and -55°C to 155°C operating range. The primary difference is maximum seated height (0.50mm vs. 0.60mm). Verify PCB layout clearance before substitution.

Q: What is the difference between RG2012P-682-D-T5 and RG2012N-682-D-T5?

A: Both parts are electrically equivalent with 6.8 kOhms, ±0.5% tolerance, and 0.125W rating. RG2012N-682-D-T5 provides improved temperature coefficient (±10ppm/°C vs. ±25ppm/°C), resulting in better stability across the -55°C to 155°C operating range. Package dimensions and AEC-Q200 rating are identical.

Q: Is RT0805DRD076K8L suitable as a replacement for automotive applications?

A: No. While RT0805DRD076K8L matches electrical specifications (6.8 kOhms, ±0.5%, 0.125W), it does not carry AEC-Q200 automotive qualification. Use only in non-automotive applications. For automotive designs, select ERA-6AED682V or Susumu RG series alternatives.

Q: What is the impact of tolerance differences between substitute parts?

A: Tolerance defines the acceptable resistance variation from the nominal 6.8 kOhm value. RG2012P-682-D-T5 allows ±0.5% variation (6.6-7.0 kOhms). Tighter tolerance alternatives (±0.1%, ±0.05%, ±0.02%) reduce this variation band, improving circuit accuracy in precision applications. Select based on circuit requirements, not as a general upgrade.

Q: Can parts with different temperature coefficients be used interchangeably?

A: Temperature coefficient determines resistance change across the -55°C to 155°C operating range. Parts with lower temperature coefficients (±5ppm/°C vs. ±25ppm/°C) maintain more stable resistance at temperature extremes. Interchangeability depends on circuit tolerance to resistance drift. Verify application requirements before substituting parts with different temperature coefficients.

Q: What is the significance of packaging format differences (Tape & Reel vs. Cut Tape)?

A: Packaging format affects supply and handling only, not electrical or mechanical performance. Tape & Reel (TR) is standard for high-volume automated assembly. Cut Tape (CT) & Digi-Reel® supports lower-volume or mixed-component orders. Both formats deliver identical components in 0805 package with equivalent performance.

Q: Are all listed substitutes ROHS3 compliant?

A: Yes. All substitute parts listed carry ROHS3 compliance certification. All are also MSL 1 (Unlimited moisture sensitivity level), requiring no special moisture control during storage or handling.

Q: What is the maximum seated height consideration for PCB design?

A: RG2012P-682-D-T5 has maximum seated height of 0.50mm. Panasonic ERA-6A series parts reach 0.60mm, and RS2012P-682-D-T5-3 reaches 0.55mm. In applications with tight vertical clearance constraints, verify PCB layout accommodates the taller component before substitution.
