RF700072 RFID Tag Read/Write Inlay - Equivalent & Substitute Parts

Part Overview

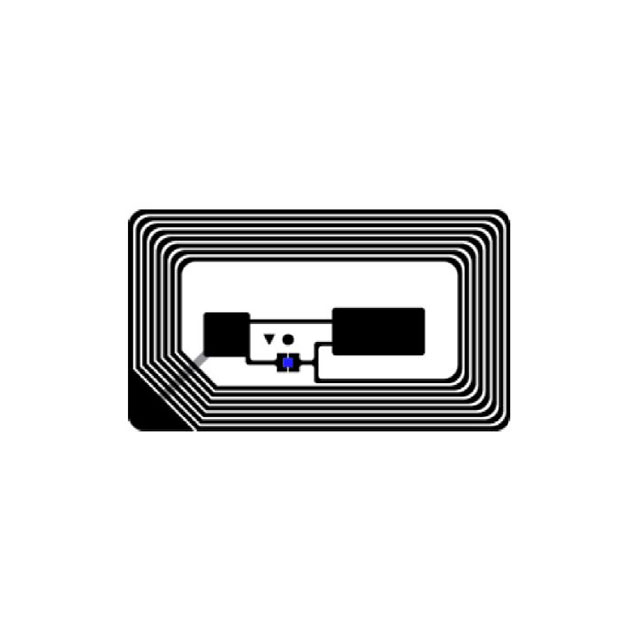

The RF700072 is an RFID tag read/write inlay manufactured by Avery Dennison RFID, designed for 14.66MHz ISO 14443 applications with 384 bits of user-writable memory. This component is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system support and new design implementations. The inlay form factor and passive technology enable integration into various label and card-based RFID solutions.

Substiute Parts

RF700072

Avery Dennison RFIDIn Stock: 982RF700072 Datasheet

Current PartRFQ

3003070

Avery Dennison RFIDIn Stock: 10903003070 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the RF700072 are identified based on the following critical parameters that determine functional equivalence:

• Manufacturer: Avery Dennison RFID (same manufacturer ensures design compatibility and support continuity)
• Technology: Passive RFID inlay
• Frequency: 14.66MHz operation
• Memory Type: Read/Write capability
• Standards Compliance: ISO 14443 protocol support
• Form Factor: Inlay configuration
• Moisture Sensitivity Level: MSL 1 (Unlimited) for storage and handling compatibility

The substitute part 3003070 is grouped as an equivalent alternative based on manufacturer alignment and product category. However, specific technical parameters for this substitute (frequency, memory capacity, standards, operating temperature, and physical dimensions) are not provided in the available data, limiting detailed parameter-level comparison.

Parameter Comparison

Engineering Selection Recommendations

For Obsolete Component Replacement:

The RF700072 is classified as obsolete. The substitute part 3003070 is currently in active production status with Avery Dennison RFID, making it the appropriate selection for new designs and long-term system support. Both components share identical Moisture Sensitivity Level (MSL 1 - Unlimited), indicating compatible storage and handling requirements.

For Existing System Support:

If RF700072 inventory is available (932 units in stock), continued use in existing applications is viable. Transition to 3003070 should be evaluated based on detailed technical parameter alignment, which requires complete specification data for the substitute part.

Compliance Considerations:

The RF700072 is RoHS Compliant. Verification of RoHS compliance status for substitute part 3003070 is required before final selection.

Frequently Asked Questions (FAQ)

Q: Can 3003070 directly replace RF700072 in existing designs?

A: Both parts are manufactured by Avery Dennison RFID and share the same MSL rating. However, direct substitution requires confirmation that 3003070 meets the same frequency (14.66MHz), memory capacity (384b user memory), standards compliance (ISO 14443), operating temperature range (-20°C ~ 50°C), and physical dimensions (38.00mm x 22.50mm) as the RF700072. Complete technical specifications for 3003070 must be obtained from the manufacturer.

Q: Why is RF700072 marked as obsolete?

A: Obsolete status indicates the manufacturer has discontinued production. Existing inventory (932 units) may be available for immediate use, but long-term availability cannot be guaranteed. Planning for transition to active alternatives is recommended.

Q: What does MSL 1 (Unlimited) mean for component handling?

A: MSL 1 indicates the component has unlimited shelf life under normal storage conditions and requires no special moisture control measures during handling or storage.

Q: Are both parts RoHS compliant?

A: RF700072 is confirmed RoHS Compliant. RoHS compliance status for 3003070 must be verified through the manufacturer's documentation.

Q: What are the critical parameters for RFID inlay substitution?

A: Critical parameters include operating frequency (14.66MHz), memory capacity and type (read/write), standards compliance (ISO 14443), physical dimensions, operating temperature range, and form factor (inlay). All parameters must match or be verified as compatible for the application.
