RF55-33H-T-00-50-A-SH Equivalent & Substitute Parts

Part Overview

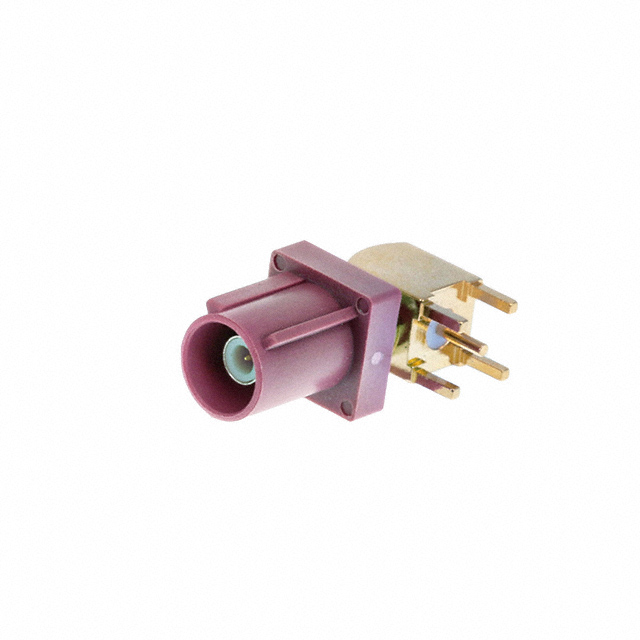

The RF55-33H-T-00-50-A-SH is an SMB Fakra connector plug manufactured by Adam Tech, designed for 50 Ohm coaxial applications requiring right-angle through-hole solder termination. This connector operates at frequencies up to 4 GHz and is classified as Active product status with full ROHS3 compliance. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the connector interface, enabling direct replacement in circuit designs without performance degradation.

Substiute Parts

RF55-33H-T-00-50-A-SH

Adam TechIn Stock: 857RF55-33H-T-00-50-A-SH Datasheet

Current PartRFQ

RF55-23H-T-00-50-G-A-SH

Adam TechIn Stock: 1232RF55-23H-T-00-50-G-A-SH Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the RF55-33H-T-00-50-A-SH is determined by strict equivalence across the following critical parameters:

Connector interface compatibility: SMB Fakra plug, male pin configuration Electrical performance: 50 Ohm impedance, 4 GHz maximum frequency Mechanical interface: Through-hole right-angle mounting, solder termination for both contact and shield Environmental specifications: Operating temperature range -40°C to 85°C, MSL 1 rating Regulatory compliance: ROHS3 Compliant, REACH Unaffected status

The identified substitute RF55-23H-T-00-50-G-A-SH maintains all critical parameters within these categories, enabling direct functional replacement in applications where the RF55-33H-T-00-50-A-SH is specified.

Parameter Comparison

Engineering Selection Recommendations

Both RF55-33H-T-00-50-A-SH and RF55-23H-T-00-50-G-A-SH are Active status products with identical ROHS3 compliance and REACH Unaffected certification. Selection between these parts is based on inventory availability and application-specific requirements. The RF55-33H-T-00-50-A-SH features phosphor bronze center contact material with nickel body finish, while the RF55-23H-T-00-50-G-A-SH features brass center contact material with gold body finish. Both configurations maintain 50 Ohm impedance and 4 GHz frequency performance. Current inventory shows 817 units of RF55-33H-T-00-50-A-SH and 1158 units of RF55-23H-T-00-50-G-A-SH available.

Frequently Asked Questions (FAQ)

Q: Can RF55-23H-T-00-50-G-A-SH directly replace RF55-33H-T-00-50-A-SH in existing designs?

A: Yes. Both connectors maintain identical electrical specifications (50 Ohm impedance, 4 GHz maximum frequency), mechanical interface (SMB Fakra plug, male pin, through-hole right-angle solder termination), and environmental ratings (-40°C to 85°C operating temperature, MSL 1). Direct substitution is supported without circuit redesign.

Q: What are the material differences between these two parts?

A: RF55-33H-T-00-50-A-SH uses phosphor bronze center contact with nickel body finish. RF55-23H-T-00-50-G-A-SH uses brass center contact with gold body finish. Both achieve equivalent electrical performance and comply with identical regulatory standards.

Q: Are both parts suitable for high-frequency RF applications?

A: Both parts are rated for operation up to 4 GHz and are designed for 50 Ohm coaxial RF applications. Frequency performance is equivalent across both part numbers.

Q: What is the significance of the Code H feature designation?

A: Code H is a feature designation common to both connectors, indicating a specific connector configuration within the SMB Fakra product family. This designation is maintained across both substitute parts.

Q: Do these connectors require any special handling or storage considerations?

A: Both parts carry MSL 1 (Unlimited) moisture sensitivity rating, indicating no moisture sensitivity restrictions. Standard component storage practices apply.
