RF292A2PDFDP Equivalent & Substitute Parts

Part Overview

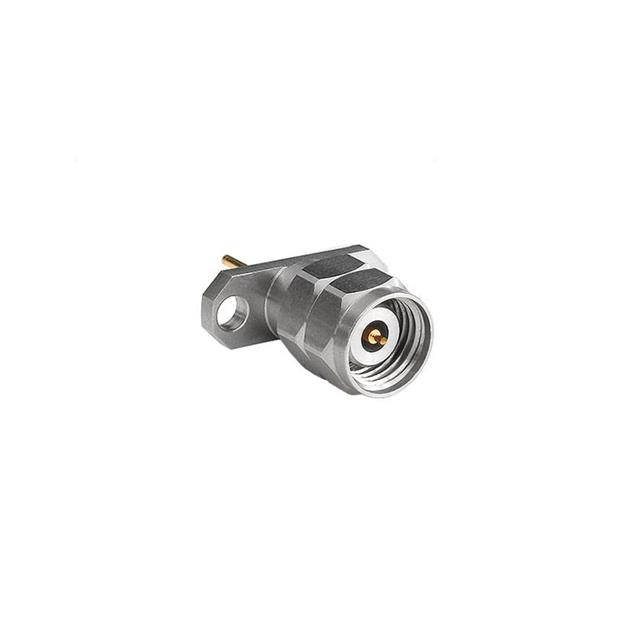

The RF292A2PDFDP is a 2.92mm coaxial connector plug manufactured by Bulgin, designed for panel mount applications with through-hole solder termination. This connector operates at frequencies up to 40 GHz with 50 Ohm impedance and is rated for 250 V operation across a temperature range of -40°C to 85°C. The part is Active in product status and ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained, particularly when mounting configuration variations or inventory availability necessitate alternative part selection.

Substiute Parts

RF292A2PDFDP

BulginIn Stock: 858RF292A2PDFDP Datasheet

Current PartRFQ

RF292A2PEGDK

BulginIn Stock: 1171RF292A2PEGDK Datasheet

Parametric EquivalentRFQ

RF292A4PCCA

BulginIn Stock: 1050RF292A4PCCA Datasheet

Parametric EquivalentRFQ

RF292A4PCCDK

BulginIn Stock: 981RF292A4PCCDK Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RF292A2PDFDP is determined by equivalence across the following critical parameters: connector style (2.92mm), connector type (Plug, Male Pin), impedance (50 Ohms), frequency rating (40 GHz maximum), contact and shield termination method (Solder), mounting type (Panel Mount, Through Hole), fastening type (Threaded), operating temperature range (-40°C to 85°C), voltage rating (250 V), and mating cycle rating (500 cycles). All substitute parts maintain these electrical and mechanical specifications.

The primary distinction among substitute parts is the mounting feature configuration. The RF292A2PDFDP features a 2-hole flange mount, while substitute parts RF292A4PCCA and RF292A4PCCDK feature 4-hole flange mounts. This difference affects panel layout and mechanical fastening but does not alter electrical performance or RF characteristics. All parts share the same base product number (RF292) and are manufactured by Bulgin with identical material composition and environmental ratings.

Parameter Comparison

Engineering Selection Recommendations

All substitute parts listed maintain full electrical and mechanical equivalence to the RF292A2PDFDP across RF performance, impedance, frequency response, and environmental operating conditions. Selection among these parts is determined by panel mounting hole configuration requirements.

RF292A2PEGDK provides direct mechanical and electrical equivalence with identical 2-hole flange mounting configuration. This part is suitable for direct replacement in applications where the original 2-hole mounting pattern is specified.

RF292A4PCCA and RF292A4PCCDK feature 4-hole flange mounting and are suitable for applications requiring increased mechanical stability through additional fastening points. These parts are electrically and functionally equivalent but require panel redesign or modification to accommodate the 4-hole mounting pattern.

All parts are Active in product status, ROHS3 compliant, and carry identical compliance certifications (ECCN: EAR99, HTSUS: 8536.69.4010). Inventory availability varies across the product line, with RF292A2PEGDK offering the highest current stock level at 1128 pieces.

Frequently Asked Questions (FAQ)

Q: Can RF292A4PCCA or RF292A4PCCDK be used as direct replacements for RF292A2PDFDP?

A: These parts are electrically and functionally equivalent but feature 4-hole flange mounting instead of 2-hole. Direct mechanical substitution requires panel modification to accommodate the additional mounting holes. RF electrical performance and impedance characteristics are identical.

Q: What is the primary difference between RF292A2PDFDP and RF292A2PEGDK?

A: Both parts are mechanically and electrically identical with 2-hole flange mounting. The difference lies in packaging or internal designation codes. Both maintain all specified electrical parameters and environmental ratings.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. RF292A2PDFDP, RF292A2PEGDK, RF292A4PCCA, and RF292A4PCCDK are all ROHS3 compliant with identical environmental and compliance certifications.

Q: What mounting hole configuration should I select?

A: Selection depends on panel design specifications. RF292A2PDFDP and RF292A2PEGDK require 2-hole mounting patterns. RF292A4PCCA and RF292A4PCCDK require 4-hole mounting patterns. Electrical performance is independent of mounting hole count.

Q: Do all parts operate across the same temperature range?

A: Yes. All substitute parts operate across -40°C to 85°C with identical voltage rating of 250 V and mating cycle rating of 500 cycles.

Q: What is the moisture sensitivity level for these connectors?

A: All parts carry Moisture Sensitivity Level 1 (Unlimited), indicating no moisture sensitivity restrictions during storage or handling.
