RF200P81 802.15.4 Transceiver Module Equivalent & Substitute Parts

Part Overview

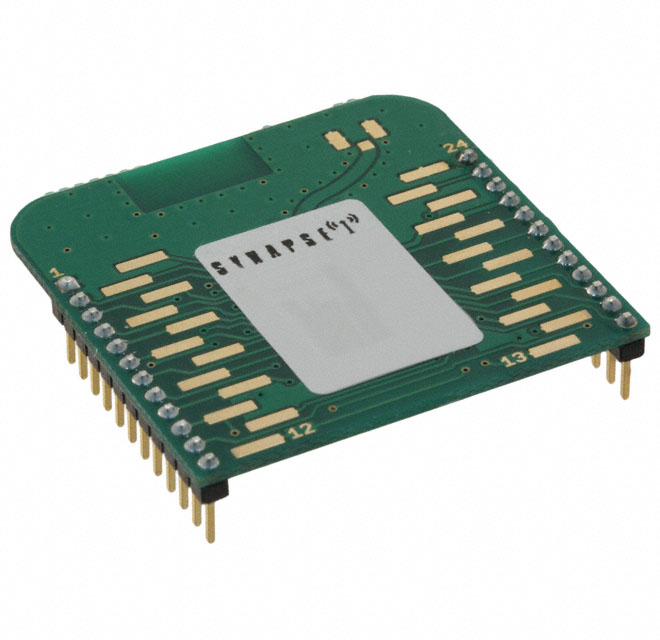

The RF200P81 is an 802.15.4 transceiver module manufactured by Synapse Wireless, designed for 2.4GHz wireless communication applications. This module integrates a complete RF transmitter/receiver with an embedded processor, supporting DSSS and O-QPSK modulation schemes. The product is currently obsolete, making equivalent and substitute parts necessary for ongoing system support, maintenance, and new design implementations where legacy compatibility is required.

Substiute Parts

RF200P81

Synapse WirelessIn Stock: 1059RF200P81 Datasheet

Current PartRFQ

RF220UF1

Synapse WirelessIn Stock: 1635RF220UF1 Datasheet

DirectRFQ

34224

Dresden ElektronikIn Stock: 70134224 Datasheet

MFR RecommendedRFQ

34491

Dresden ElektronikIn Stock: 367834491 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the RF200P81 is determined by the following core parameters:

• RF Family/Standard: 802.15.4 compliance is mandatory
• Frequency: 2.4GHz operation is required
• Data Rate: 2Mbps minimum capability
• Voltage Supply Range: Must accommodate 1.8V ~ 3.6V or compatible subset
• Serial Interfaces: Must support at least SPI and UART; I2C and JTAG support enhances compatibility
• Operating Temperature: -40°C ~ 85°C range or equivalent
• Antenna Configuration: Integrated antenna types are preferred for form factor compatibility
• RoHS/Environmental Compliance: ROHS3 or equivalent compliance required

The substitute parts listed below meet these core electrical and mechanical criteria, though with variations in output power, sensitivity, current consumption, and mounting technology that reflect their respective product generations and design objectives.

Parameter Comparison

Engineering Selection Recommendations

RF220UF1 (Synapse Wireless): This part maintains manufacturer continuity within the Synapse Wireless SNAP RF Engine series and is currently in active production. It provides enhanced output power (20dBm vs. 3dBm) and improved sensitivity (-103dBm vs. -100dBm). However, it supports only SPI and UART interfaces, omitting I2C and JTAG support present in the RF200P81. The minimum supply voltage is 2V instead of 1.8V. This substitute is suitable for applications where higher transmit power is beneficial and I2C/JTAG functionality is not required. ROHS3 compliance ensures environmental regulatory alignment.

34224 (Dresden Elektronik deRFmega128): This part provides full electrical parameter compatibility with the RF200P81, including identical power output (3dBm), sensitivity (-100dBm), voltage supply range (1.8V ~ 3.6V), and complete serial interface support (I2C, JTAG, SPI, UART). It is currently in active production with ROHS3 compliance. The primary difference is mounting type (unspecified vs. through hole) and the use of CC1101 as the utilized IC. This substitute offers the closest functional equivalence for direct replacement scenarios.

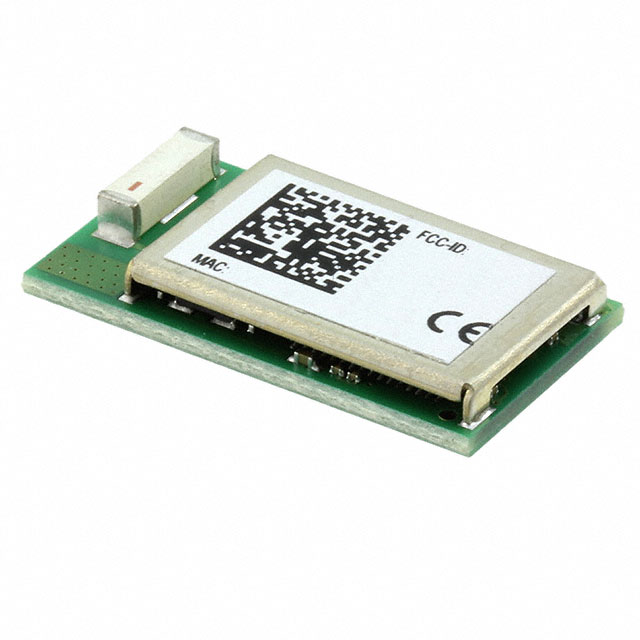

34491 (Dresden Elektronik deRFmega128): This part is electrically identical to 34224 but employs surface mount technology (51-SMD Module) instead of through hole mounting. It adds protocol support for 6LoWPAN and Zigbee in addition to base 802.15.4 compliance. It is currently in active production with ROHS3 compliance. This substitute is appropriate for new designs or PCB redesigns that can accommodate surface mount assembly, offering the same electrical performance as 34224 with enhanced protocol flexibility.

Frequently Asked Questions (FAQ)

Q: Can RF220UF1 directly replace RF200P81 in existing through-hole PCB designs?

A: RF220UF1 maintains through-hole mounting compatibility and operates within the same frequency and data rate specifications. However, it lacks I2C and JTAG interface support and requires a minimum supply voltage of 2V instead of 1.8V. Verify that your application does not depend on I2C or JTAG functionality and that your power supply meets the 2V minimum before substitution.

Q: What is the primary difference between 34224 and 34491?

A: Both parts are from the Dresden Elektronik deRFmega128 series with identical electrical specifications. The key difference is mounting technology: 34224 uses through-hole mounting, while 34491 uses surface mount (51-SMD). Additionally, 34491 explicitly supports 6LoWPAN and Zigbee protocols. Select based on your PCB assembly capability and protocol requirements.

Q: Is 34224 a suitable replacement for RF200P81 in legacy systems?

A: Yes. 34224 provides full electrical and interface compatibility with RF200P81, including identical power output, sensitivity, voltage supply range, and all serial interfaces (I2C, JTAG, SPI, UART). Both operate across -40°C ~ 85°C and maintain RoHS compliance. The primary consideration is mechanical mounting verification, as mounting type specifications differ between the datasheets.

Q: Why does RF220UF1 have higher current consumption during transmission (150mA vs. 14.5mA ~ 22.5mA)?

A: RF220UF1 delivers significantly higher output power (20dBm vs. 3dBm), which requires proportionally higher transmit current. This is a direct trade-off between power output capability and power consumption. Evaluate your application's power budget and range requirements to determine if this trade-off is acceptable.

Q: Are all substitute parts RoHS compliant?

A: Yes. RF200P81 is RoHS Compliant, while all substitute parts (RF220UF1, 34224, 34491) are ROHS3 Compliant, which represents a more recent and stringent environmental compliance standard. ROHS3 compliance is backward compatible with RoHS requirements.

Q: Can 34491 be used in applications requiring through-hole mounting?

A: No. 34491 is a surface mount module (51-SMD). If your PCB design requires through-hole mounting, select either RF200P81, RF220UF1, or 34224. If PCB redesign is feasible, 34491 offers the same electrical performance with enhanced protocol support.
