RF064PJ390CS Equivalent & Substitute Parts

Part Overview

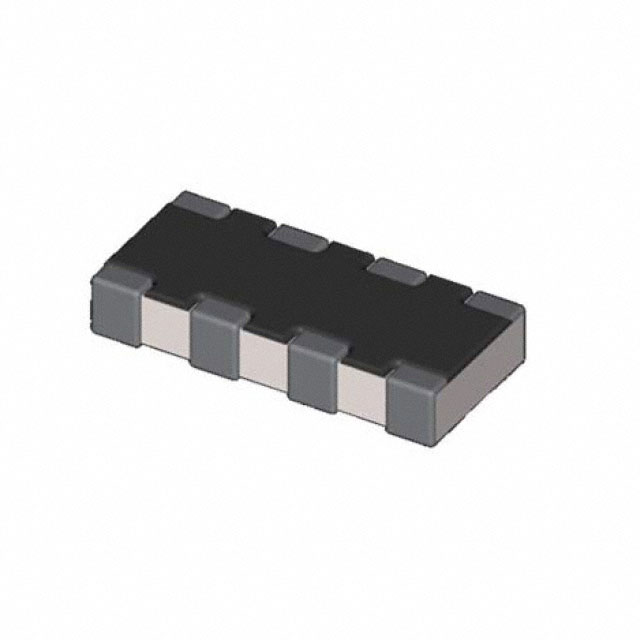

The RF064PJ390CS is a 4-resistor isolated network array manufactured by Samsung Electro-Mechanics. This surface mount component features 39 Ohm resistors with ±5% tolerance and 31mW power per element rating in a 0502 (1406 Metric) package with long side terminals. The part is actively produced and ROHS3 compliant, making it suitable for applications requiring precision resistor networks in compact form factors. Equivalent parts may be required due to inventory availability, lead time considerations, or specific performance requirements within allowable parameter ranges.

Substiute Parts

RF064PJ390CS

Samsung Electro-MechanicsIn Stock: 851RF064PJ390CS Datasheet

Current PartRFQ

EXB-18V390JX

Panasonic Electronic ComponentsIn Stock: 20752EXB-18V390JX Datasheet

UpgradeRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RF064PJ390CS with equivalent parts is permissible when the following critical parameters remain unchanged:

Mandatory Matching Parameters:

• Resistance value: 39 Ohm
• Tolerance: ±5%
• Number of resistors: 4
• Circuit type: Isolated
• Power per element: 31mW
• Package designation: 0502 (1406 Metric) with long side terminals
• Number of pins: 8
• Operating temperature range: -55°C ~ 125°C
• Mounting type: Surface Mount
• RoHS3 compliance status

Allowable Variation Parameters:

• Temperature coefficient: May vary within acceptable limits for the application
• Physical height (seated): Minor variations acceptable if within assembly clearance
• Packaging format: Cut Tape (CT) or Tape & Reel (TR) formats are interchangeable for component functionality
• Manufacturer: Different manufacturers permitted if all electrical and mechanical parameters align

The EXB-18V390JX from Panasonic Electronic Components qualifies as a direct substitute based on these criteria.

Parameter Comparison

Engineering Selection Recommendations

Primary Part: RF064PJ390CS (Samsung Electro-Mechanics)

Selection criteria:

• Active product status with established supply chain
• ROHS3 compliant for regulatory requirements
• MSL 1 rating eliminates moisture sensitivity constraints
• Temperature coefficient of ±250ppm/°C suitable for standard industrial applications
• Cut Tape packaging appropriate for lower-volume or manual assembly operations

Substitute Part: EXB-18V390JX (Panasonic Electronic Components)

Selection criteria:

• Active product status with higher inventory availability (20,717 Pcs vs. 770 Pcs)
• ROHS3 compliant for regulatory requirements
• MSL 1 rating eliminates moisture sensitivity constraints
• Temperature coefficient of ±200ppm/°C provides superior thermal stability compared to primary part
• Tape & Reel packaging optimized for high-volume automated assembly
• Seated height of 0.018" (0.45mm) versus 0.013" (0.33mm) remains within standard PCB assembly clearance specifications

Both parts satisfy identical electrical performance requirements and mechanical compatibility with 0502 package footprints. Selection between them should be based on inventory availability, packaging format requirements, and thermal stability needs for the specific application.
