RES-60 Equivalent & Substitute Parts

Part Overview

The RES-60 is a Super Lag Renewable Fuse manufactured by Eaton - Bussmann Electrical Division. This component is classified as Obsolete, necessitating identification of active equivalent parts for continued system support and procurement. The RES-60 operates at 60/600 electrical parameters and is RoHS Compliant with MSL 1 rating. Due to its obsolete status, the LPS-RK-60SP has been identified as the manufacturer-recommended substitute to maintain functional equivalence in applications requiring 60A protection at 600VAC/300VDC.

Substiute Parts

RES-60

Eaton - Bussmann Electrical DivisionIn Stock: 1093RES-60 Datasheet

Current PartRFQ

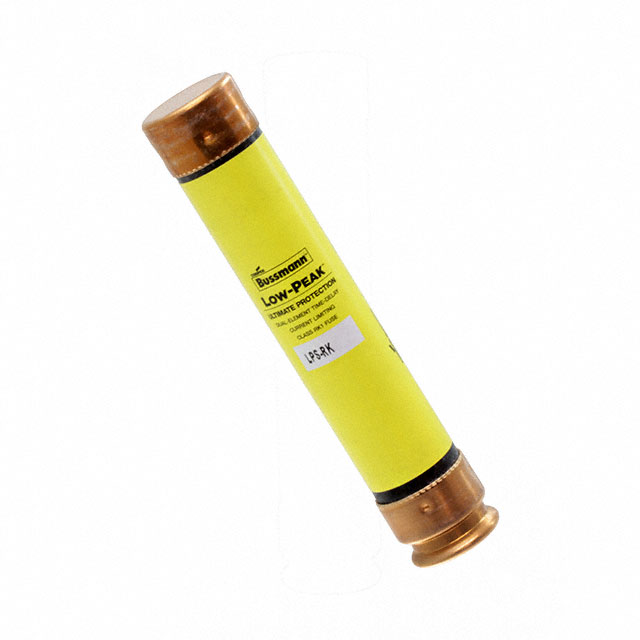

LPS-RK-60SP

Eaton - Bussmann Electrical DivisionIn Stock: 1042LPS-RK-60SP Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The LPS-RK-60SP qualifies as a direct substitute for the RES-60 based on the following critical parameters:

• Current Rating: Both parts are rated at 60A
• Voltage Rating - AC: Both parts are rated at 600VAC
• Voltage Rating - DC: LPS-RK-60SP provides 300VDC rating
• Manufacturer: Both parts are manufactured by Eaton - Bussmann Electrical Division
• RoHS Compliance: Both parts meet RoHS requirements
• ECCN Classification: Both parts share EAR99 classification
• HTSUS Code: Both parts share 8536.10.0040 classification

The LPS-RK-60SP is an active product within the Low-Peak™ LPS series, providing current substitution capability for the obsolete RES-60 while maintaining electrical parameter compatibility.

Parameter Comparison

Engineering Selection Recommendations

The LPS-RK-60SP is the appropriate substitute for the obsolete RES-60 based on the following factors:

• Active Product Status: The LPS-RK-60SP is an active product, ensuring ongoing availability and supply chain continuity.
• Electrical Parameter Alignment: Both parts maintain 60A current rating and 600VAC voltage rating, satisfying core circuit protection requirements.
• Regulatory Compliance: Both parts are RoHS Compliant and share identical ECCN and HTSUS classifications, ensuring regulatory equivalence.
• Manufacturer Continuity: Both parts originate from Eaton - Bussmann Electrical Division, maintaining design and quality standards.
• Enhanced Specifications: The LPS-RK-60SP provides additional DC voltage rating (300VDC) and specified breaking capacity, offering expanded application flexibility.

Frequently Asked Questions (FAQ)

Q: Can the LPS-RK-60SP directly replace the RES-60 in existing installations?

A: The LPS-RK-60SP meets the core electrical parameters (60A, 600VAC) required for RES-60 substitution. However, the LPS-RK-60SP is a cartridge fuse requiring a holder, whereas the RES-60 is a renewable fuse. Installation compatibility depends on the existing fuse holder type in your circuit.

Q: What is the primary difference between the RES-60 and LPS-RK-60SP?

A: The RES-60 is a renewable fuse (obsolete), while the LPS-RK-60SP is a cartridge fuse (active). Both provide 60A protection at 600VAC. The LPS-RK-60SP additionally specifies 300VDC rating and RK1 class protection.

Q: Are there any compliance concerns when substituting the RES-60 with the LPS-RK-60SP?

A: Both parts are RoHS Compliant and share identical ECCN (EAR99) and HTSUS (8536.10.0040) classifications. No compliance barriers exist for substitution.

Q: What mounting considerations apply to the LPS-RK-60SP?

A: The LPS-RK-60SP requires a cartridge fuse holder for installation. Verify that your existing circuit accommodates cartridge fuse holders before substitution.

Q: Is the LPS-RK-60SP suitable for motor and transformer protection applications?

A: Yes, the LPS-RK-60SP is specified for motor protection and transformer protection applications with RK1 class rating and slow-blow response characteristics.
