RE96FWP 96-Position DIN Receptacle Connector Equivalent & Substitute Parts

Part Overview

The RE96FWP is a 96-position DIN connector receptacle manufactured by Vector Electronics, designed for backplane applications requiring through-hole mounting with press-fit termination. This connector features female sockets with gold plating and operates across an industrial temperature range of -55°C to 125°C. The part is currently active in production with 747 units in stock.

Equivalent and substitute parts are identified to provide design flexibility, support supply chain continuity, and accommodate specific application requirements such as compliance certifications or material specifications.

Substiute Parts

RE96FWP

Vector ElectronicsIn Stock: 811RE96FWP Datasheet

Current PartRFQ

535032-5

TE Connectivity AMP ConnectorsIn Stock: 1607535032-5 Datasheet

MFR RecommendedRFQ

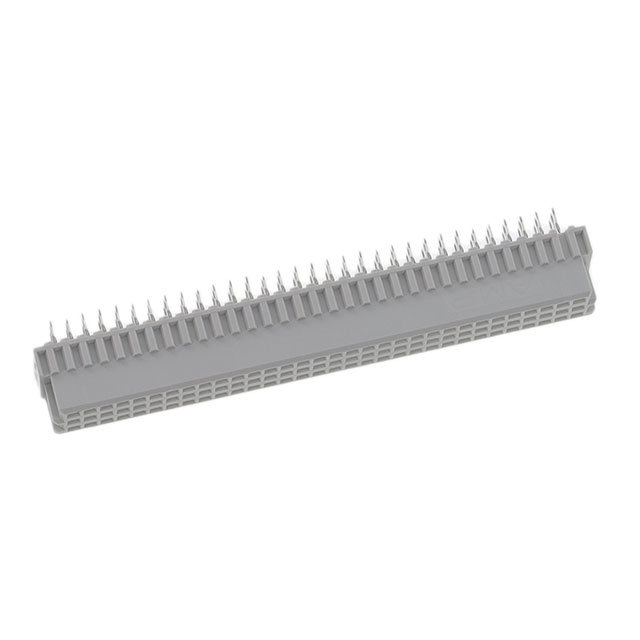

535056-5

TE Connectivity AMP ConnectorsIn Stock: 939535056-5 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the RE96FWP is determined by strict equivalence across the following critical parameters:

Primary Substitution Criteria:

• Connector type: Receptacle, female sockets
• Position count: 96 positions
• Pitch: 0.100" (2.54mm)
• Row configuration: 3 rows
• Mounting: Through hole
• Termination: Press-fit
• Contact finish: Gold plating
• Operating temperature: -55°C to 125°C
• Level/Class: 2

The identified substitute parts (535032-5 and 535056-5) from TE Connectivity AMP Connectors meet all primary substitution criteria. Both parts are Eurocard series receptacles with identical position counts, pitch, row configuration, mounting type, and termination method. Both operate within the same temperature range and maintain gold-plated contacts with Level/Class 2 rating.

Differences exist in contact finish thickness, insulation material composition, and regulatory compliance status. These differences are documented in the parameter comparison table and must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

RE96FWP (Vector Electronics) is the primary specification part. Selection of this part is appropriate when ROHS3 compliance and REACH unaffected status are required for the application.

535032-5 (TE Connectivity) is a functional equivalent meeting all core electrical and mechanical parameters. This part is suitable for applications where RoHS non-compliance is acceptable. Contact finish thickness is not specified; applications requiring defined contact thickness specifications should reference 535056-5.

535056-5 (TE Connectivity) is a functional equivalent with specified contact finish thickness of 30.0µin (0.76µm), providing 3x greater gold plating thickness than the primary part. This part is suitable for applications where enhanced contact durability or wear resistance is required and RoHS non-compliance is acceptable.

All three parts share identical mechanical compatibility, electrical performance characteristics within the specified operating range, and Level/Class 2 rating. Selection between parts should be based on regulatory compliance requirements (RoHS/REACH status) and contact finish thickness specifications for the intended application environment.

Frequently Asked Questions (FAQ)

Q: Can 535032-5 or 535056-5 be used as direct replacements for RE96FWP in existing designs?

A: Both TE Connectivity parts are mechanically and electrically compatible with RE96FWP. All three parts share identical position count (96), pitch (0.100"), row configuration (3), mounting type (through hole), termination method (press-fit), and operating temperature range (-55°C to 125°C). Direct substitution is possible from a connector interface perspective. However, regulatory compliance differences (RoHS and REACH status) must be evaluated against application requirements.

Q: What is the difference between the two TE Connectivity substitute parts?

A: Both 535032-5 and 535056-5 are Eurocard series receptacles with identical electrical and mechanical specifications. The primary difference is contact finish thickness: 535032-5 does not specify contact thickness, while 535056-5 specifies 30.0µin (0.76µm) gold plating. The RE96FWP specifies 10.0µin (0.25µm). Applications requiring specific contact thickness for wear resistance or durability should reference the part with defined specifications.

Q: Are there compliance or certification differences between these parts?

A: Yes. RE96FWP is ROHS3 compliant and REACH unaffected. Both TE Connectivity parts (535032-5 and 535056-5) are RoHS non-compliant and REACH affected. Applications subject to RoHS3 or REACH regulations must use RE96FWP. Applications without these regulatory requirements may use either TE Connectivity part.

Q: What does "Level/Class 2" rating mean for these connectors?

A: Level/Class 2 is a standardized rating for DIN connectors indicating mechanical and electrical performance characteristics. All three parts carry this identical rating, confirming equivalent performance classification.

Q: Can these parts be used interchangeably in high-temperature applications?

A: All three parts operate across the identical temperature range of -55°C to 125°C. Interchangeability for temperature performance is confirmed. However, insulation material differs: RE96FWP uses polycarbonate while both TE Connectivity parts use polyester. Material selection may affect performance in specific thermal or chemical environments; application-specific material compatibility should be verified.

Q: What is the significance of the different insulation materials?

A: RE96FWP uses polycarbonate glass-filled insulation, while 535032-5 and 535056-5 use polyester glass-filled insulation. Both materials are suitable for the specified operating temperature range and Level/Class 2 applications. Material selection may affect chemical resistance, mechanical properties, or specific environmental performance; application requirements should determine material suitability.

Q: Are all three parts available in the same packaging format?

A: Yes. All three parts are supplied in bulk packaging format, suitable for PCB assembly and production environments.
