RF Receiver FM/FSK 433MHz RDF1 Equivalent & Substitute Parts

Part Overview

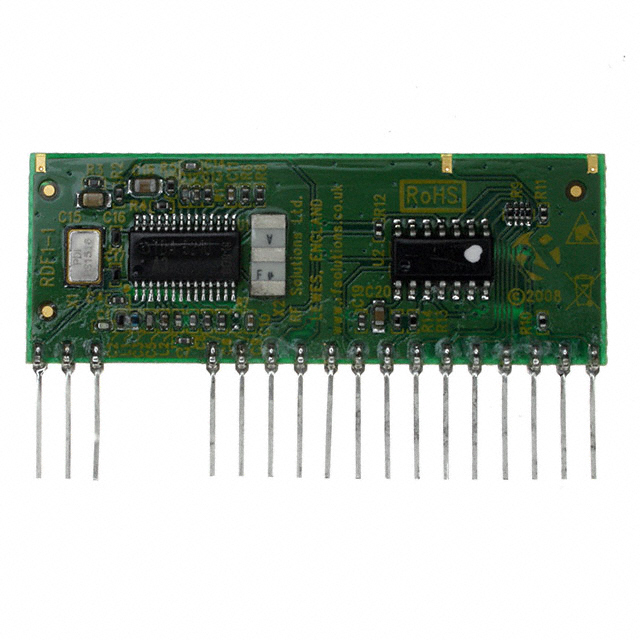

The RDF1 is a through-hole RF receiver module designed for 433MHz frequency band applications utilizing FM and FSK modulation protocols. Manufactured by RF Solutions, this component operates at 5V supply voltage with an operating temperature range of 0°C to 70°C. The RDF1 is classified as an obsolete product, necessitating identification of functionally equivalent alternatives for ongoing system support and new design implementations. Substitute parts must maintain core RF performance characteristics while accommodating potential differences in electrical specifications and physical packaging.

Substiute Parts

RDF1

RF SolutionsIn Stock: 927RDF1 Datasheet

Current PartRFQ

ZPT-4RD

RF SolutionsIn Stock: 817ZPT-4RD Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute identification for the RDF1 is based on the following mandatory alignment criteria:

Critical Parameters (Must Match Exactly):

• Frequency: 433MHz band operation
• Modulation Support: FM and FSK protocol compatibility

High-Priority Parameters (Require Engineering Evaluation):

• Voltage Supply Range: Original operates at 5V; substitutes must be compatible with system power architecture
• Operating Temperature Range: Original range 0°C ~ 70°C; substitutes with extended or different ranges require thermal design review
• Mounting Type: Through-hole requirement for PCB integration
• Package Configuration: Physical form factor and pin count compatibility

Compliance Parameters:

• RoHS and REACH compliance status for regulatory adherence

The ZPT-4RD qualifies as a substitute based on matching the critical 433MHz frequency and modulation protocol requirements. However, electrical and thermal specifications differ and require circuit-level evaluation.

Parameter Comparison

Engineering Selection Recommendations

Substitution Feasibility:

The ZPT-4RD represents a functionally equivalent alternative to the obsolete RDF1 for 433MHz RF receiver applications. Both components are manufactured by RF Solutions and operate within the 433MHz frequency band. The ZPT-4RD maintains active product status, ensuring ongoing availability and manufacturer support.

Design Considerations:

1. Power Supply Architecture: The RDF1 operates at 5V, while the ZPT-4RD requires 1.8V to 3.6V supply voltage. System power distribution circuits must be evaluated and potentially redesigned to accommodate the lower voltage requirement of the substitute.

2. Physical Integration: The RDF1 uses a 20-SIP module package, whereas the ZPT-4RD employs a 12-DIP module configuration. PCB layout modifications are necessary to accommodate the different pin count and physical dimensions.

3. Temperature Operating Range: The ZPT-4RD extends the operating temperature range to -20°C ~ 85°C compared to the RDF1's 0°C ~ 70°C specification. This provides broader environmental compatibility for applications requiring extended temperature operation.

4. Regulatory Compliance: Both components meet RoHS requirements. The ZPT-4RD complies with ROHS3, representing the current regulatory standard.

5. Modulation Protocol Verification: While the RDF1 explicitly supports FM and FSK modulation, the ZPT-4RD modulation protocol specification is not provided in available documentation. Protocol compatibility must be confirmed through RF Solutions technical documentation before final selection.

Frequently Asked Questions (FAQ)

Q: Can the ZPT-4RD directly replace the RDF1 without PCB modifications?

A: No. The ZPT-4RD uses a 12-DIP module package compared to the RDF1's 20-SIP configuration, requiring PCB layout redesign. Additionally, the supply voltage differs (1.8V–3.6V versus 5V), necessitating power circuit modifications.

Q: Are both parts compatible with 433MHz FM and FSK applications?

A: The RDF1 explicitly supports FM and FSK modulation at 433MHz. The ZPT-4RD operates at 433MHz, but its modulation protocol support is not specified in the provided data. Confirmation of FSK/FM compatibility is required from the manufacturer before substitution.

Q: What is the primary reason for seeking a substitute for the RDF1?

A: The RDF1 is classified as an obsolete product. The ZPT-4RD is an active product with ongoing manufacturer support, ensuring long-term component availability and technical assistance.

Q: How do the operating temperature ranges compare?

A: The RDF1 operates from 0°C to 70°C, while the ZPT-4RD operates from -20°C to 85°C. The ZPT-4RD provides extended temperature coverage, suitable for applications requiring broader environmental tolerance.

Q: What is the sensitivity difference between these components?

A: The RDF1 sensitivity specification is not provided. The ZPT-4RD specifies -121dBm sensitivity. Sensitivity comparison requires the RDF1 specification from RF Solutions technical documentation.

Q: Are both components RoHS compliant?

A: Yes. The RDF1 is RoHS Compliant, and the ZPT-4RD is ROHS3 Compliant, meeting current regulatory standards for hazardous substance restrictions.

Q: What supply voltage should be used for the ZPT-4RD?

A: The ZPT-4RD operates within the 1.8V to 3.6V range. System design must provide regulated power within this specification to ensure proper RF receiver operation.
