RCP-014 Equivalent & Substitute Parts

Part Overview

The RCP-014 is a Phono (RCA) Plug Mono Connector manufactured by CUI Devices, designed for audio and signal applications requiring a 3.20mm ID, 9.00mm OD mating interface. This connector features 2 conductors with solder eyelet termination and operates across a temperature range of -20°C to 85°C at 12VDC with a 5A current rating. The RCP-014 is classified as Obsolete, making identification of functionally equivalent alternatives necessary for ongoing design support and component procurement.

Substiute Parts

RCP-014

CUI DevicesIn Stock: 1026RCP-014 Datasheet

Current PartRFQ

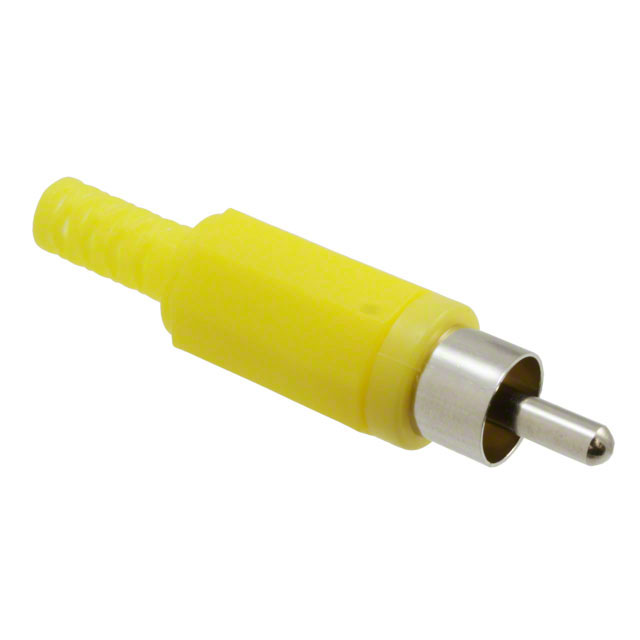

RCP-024

CUI DevicesIn Stock: 1507RCP-024 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The RCP-024 qualifies as a direct substitute for the RCP-014 based on the following critical parameters:

• Connector Type & Mating Interface: Both parts are Phono (RCA) Plugs with identical 3.20mm ID, 9.00mm OD mating dimensions, ensuring mechanical and electrical compatibility with standard RCA receptacles.
• Electrical Configuration: Both connectors feature 2 conductors, 2 contacts, and mono signal configuration with identical termination via solder eyelets.
• Material Composition: Both use brass body material with nickel-plated brass contacts and ABS housing, providing equivalent corrosion resistance and electrical performance.
• Operating Conditions: Both operate across -20°C to 85°C temperature range with identical shielding (unshielded) and mounting type (free hanging, in-line).
• Regulatory Compliance: Both are RoHS compliant and carry identical ECCN and HTSUS classifications.

The RCP-024 is classified as Active product status, providing ongoing availability and supply chain continuity compared to the Obsolete RCP-014.

Parameter Comparison

Engineering Selection Recommendations

The RCP-024 is the appropriate substitute for the RCP-014 based on the following engineering criteria:

Product Status & Availability: The RCP-014 is Obsolete, while the RCP-024 maintains Active status with 1464 units in current inventory compared to 925 units of the discontinued RCP-014. Active product status ensures long-term supply chain reliability and manufacturer support.

Regulatory Compliance: Both connectors meet RoHS requirements. The RCP-024 carries ROHS3 certification, representing the current regulatory standard. Both parts are classified identically under ECCN EAR99 and HTSUS 8536.69.8000.

Electrical & Mechanical Equivalence: The RCP-024 maintains identical electrical ratings (12VDC, 5A), mechanical interface (3.20mm ID, 9.00mm OD RCA standard), and material specifications (brass body, nickel-plated brass contacts, ABS housing). The 0.20mm difference in mating depth (14.30mm vs. 14.50mm) is within standard manufacturing tolerances and does not affect functional compatibility.

Additional Features: The RCP-024 includes strain relief, providing enhanced mechanical durability compared to the RCP-014, with no corresponding disadvantage for applications requiring the base connector specification.

Frequently Asked Questions (FAQ)

Q: Can the RCP-024 directly replace the RCP-014 in existing designs?

A: Yes. Both connectors share identical mating dimensions (3.20mm ID, 9.00mm OD RCA standard), electrical configuration (2 conductors, mono signal), termination method (solder eyelets), and operating specifications (-20°C to 85°C, 12VDC, 5A). The RCP-024 is mechanically and electrically interchangeable with the RCP-014.

Q: What is the significance of the mating depth difference between RCP-014 (14.30mm) and RCP-024 (14.50mm)?

A: The 0.20mm difference is negligible and falls within standard manufacturing tolerances for RCA connectors. This variation does not affect mating compatibility or electrical performance in standard applications.

Q: Why does the RCP-024 include strain relief while the RCP-014 does not?

A: Strain relief is an enhancement feature that provides additional mechanical protection to the solder joint and cable interface. This feature improves durability without affecting electrical compatibility or mating characteristics.

Q: Are there any compliance differences between RCP-014 and RCP-024?

A: Both connectors are RoHS compliant. The RCP-024 carries ROHS3 certification, which is the current regulatory standard. Both parts share identical ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Q: What packaging is available for the RCP-024?

A: The RCP-024 is supplied in bag packaging, suitable for standard component procurement and assembly workflows.

Q: Is the RCP-024 available in current inventory?

A: Yes. The RCP-024 is classified as Active product status with 1464 units in new original stock, ensuring reliable supply chain availability.
