RAZ32011DM RF Antenna Equivalent & Substitute Parts

Part Overview

The RAZ32011DM is a multi-band RF antenna module manufactured by Pulse Electronics, part of the RAZORBACK series. This panel-mount antenna operates across three frequency bands: 802MHz, 1.582GHz, and 2.2GHz, with frequency ranges spanning 644MHz to 2.69GHz. The module integrates an LNA (Low Noise Amplifier) and features SMA Male connectors for GPS and LTE applications. The part is currently active in production with ROHS3 compliance and REACH unaffected status, making it suitable for modern wireless communication systems requiring multi-band coverage.

Equivalent substitute parts are identified based on matching electrical performance, mechanical compatibility, and operational specifications within the RF antenna module category.

Substiute Parts

RAZ32011DM

Pulse ElectronicsIn Stock: 730RAZ32011DM Datasheet

Current PartRFQ

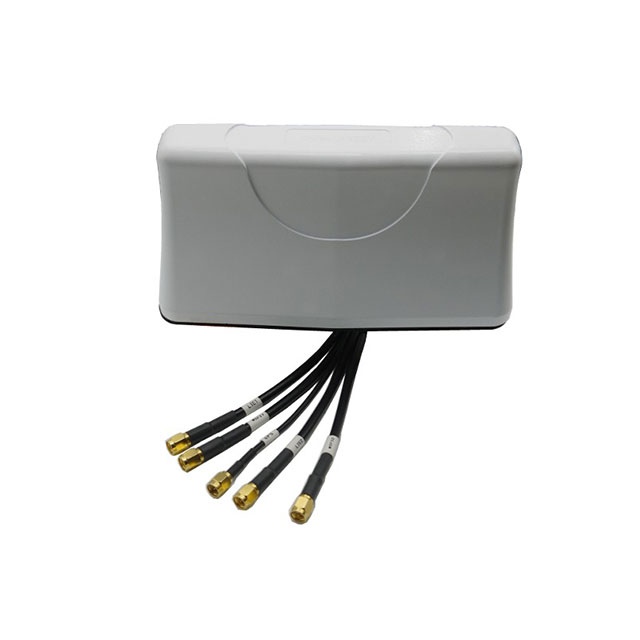

RAZ32012DM

Pulse ElectronicsIn Stock: 974RAZ32012DM Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the RAZ32011DM are identified through parametric equivalence across the following critical specifications:

Electrical Parameters:

• Frequency coverage: 802MHz, 1.582GHz, 2.2GHz center frequencies with identical frequency ranges (644MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz)
• Gain performance: 4.6dBi, 4.9dBi, 6dBi, 6.6dBi across bands
• VSWR: 2 (Voltage Standing Wave Ratio)
• Maximum power handling: 45 W

Mechanical Parameters:

• Termination: SMA Male (3) connectors
• Mounting: Panel Mount configuration
• Physical height: 3.644" (92.55mm)
• Integrated features: Cable 5.18m with LNA

Environmental & Compliance:

• Ingress Protection: IP67
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• REACH Status: REACH Unaffected

Parts meeting all these parameters are classified as parametric equivalents and direct substitutes.

Parameter Comparison

Engineering Selection Recommendations

Both RAZ32011DM and RAZ32012DM are active production parts from Pulse Electronics with identical electrical and mechanical specifications. Selection between these parts may be based on inventory availability and supply chain considerations. RAZ32012DM currently maintains higher inventory levels (940 Pcs) compared to RAZ32011DM (716 Pcs). Both parts carry ROHS3 compliance and REACH unaffected status, meeting modern regulatory requirements for GPS and LTE module applications. No technical differentiation exists between these parts based on provided specifications.

Frequently Asked Questions (FAQ)

Q: Can RAZ32012DM be used as a direct replacement for RAZ32011DM?

A: Yes. RAZ32012DM is a parametric equivalent with identical electrical performance, frequency coverage, gain characteristics, VSWR, power handling, connector configuration, mounting type, physical dimensions, and environmental protection rating. Both parts are manufactured by Pulse Electronics within the RAZORBACK series and share identical compliance certifications.

Q: Are there any mechanical compatibility concerns when substituting these parts?

A: No. Both parts feature identical panel mount configurations, SMA Male (3) terminations, and maximum height of 3.644" (92.55mm). The integrated 5.18m cable and LNA are standard across both models. Direct mechanical interchange is supported.

Q: Do both parts support the same frequency bands and applications?

A: Yes. Both RAZ32011DM and RAZ32012DM operate across identical frequency bands (802MHz, 1.582GHz, 2.2GHz) with matching frequency ranges and are rated for GPS and LTE applications. Gain performance across all bands is identical.

Q: What is the significance of the ROHS3 and REACH compliance status?

A: ROHS3 compliance indicates conformance to the Restriction of Hazardous Substances Directive, restricting specific hazardous materials in electrical and electronic equipment. REACH unaffected status indicates the part is not subject to REACH (Registration, Evaluation, Authorization and Restriction of Chemicals) restrictions. Both certifications are identical across both part numbers.

Q: Is there a difference in power handling capability between these parts?

A: No. Both parts are rated for maximum power handling of 45 W and maintain identical VSWR of 2 across all operating bands.
