RAPC322 AC Power Connector - Equivalent & Substitute Parts

Part Overview

The RAPC322 is a power entry connector receptacle manufactured by Switchcraft Inc., designed for IEC 320-C8 non-polarized applications. This component features male pins, panel mount snap-in configuration with through-hole right-angle termination via solder. The RAPC322 is classified as obsolete, which necessitates identification of active equivalent parts to maintain supply chain continuity for applications requiring this connector type.

Substiute Parts

RAPC322

Switchcraft Inc.In Stock: 1011RAPC322 Datasheet

Current PartRFQ

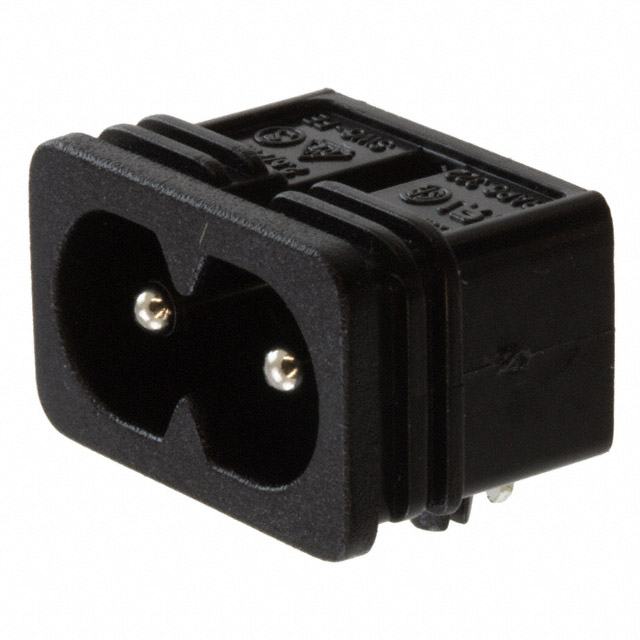

RAPC322X

Switchcraft Inc.In Stock: 11346RAPC322X Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The RAPC322X qualifies as a direct substitute based on identical electrical and mechanical parameters. Substitution is valid when the following criteria are met:

• Connector style matches: IEC 320-C8, Non-Polarized
• Connector type matches: Receptacle, Male Pins
• Number of positions matches: 2
• Mounting configuration matches: Panel Mount, Snap-In; Through Hole, Right Angle
• Termination method matches: Solder
• Panel thickness compatibility: 0.059" (1.50mm)
• Material flammability rating matches: UL94 V-0
• Filter type matches: Unfiltered - Commercial

The RAPC322X maintains full compatibility with applications designed for the RAPC322, with the primary distinction being product status transition from obsolete to active.

Parameter Comparison

Engineering Selection Recommendations

The RAPC322X is the direct equivalent for the obsolete RAPC322. Selection of the RAPC322X is appropriate for new designs and replacement applications due to its active product status and ROHS3 compliance. Both parts share identical mechanical and electrical specifications, ensuring functional interchangeability in IEC 320-C8 non-polarized power entry applications. The RAPC322X provides improved regulatory compliance compared to the original RAPC322, with RoHS3 certification meeting current environmental standards.

Frequently Asked Questions (FAQ)

Q: Can the RAPC322X directly replace the RAPC322 in existing applications?

A: Yes. The RAPC322X is mechanically and electrically identical to the RAPC322. Both parts feature the same IEC 320-C8 connector style, 2-position configuration, panel mount snap-in design, and solder termination. No design modifications are required.

Q: What is the difference between RAPC322 and RAPC322X?

A: The primary differences are product status and regulatory compliance. The RAPC322 is obsolete and RoHS non-compliant, while the RAPC322X is active and ROHS3 compliant. All mechanical and electrical parameters remain identical.

Q: Are there packaging differences between these parts?

A: The RAPC322 packaging specification is not provided. The RAPC322X is supplied in bulk packaging. Confirm packaging requirements for your application.

Q: What panel thickness is required for installation?

A: Both parts accommodate a panel thickness of 0.059" (1.50mm). Verify your application panel meets this specification before installation.

Q: Are these connectors polarized?

A: No. Both the RAPC322 and RAPC322X are non-polarized IEC 320-C8 connectors, allowing insertion in any orientation.

Q: Do these connectors include filtering or fuse accommodation?

A: No. Both parts are unfiltered commercial connectors and do not accommodate fuses.
