R60MN41005040J Film Capacitor Equivalent & Substitute Parts

Part Overview

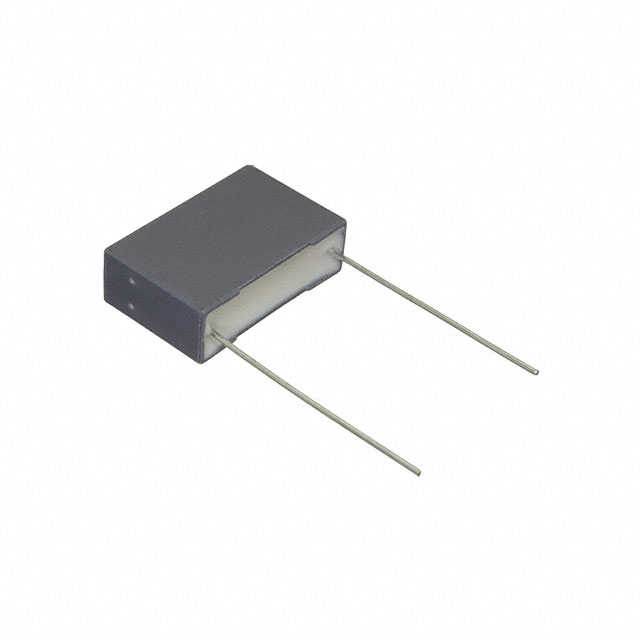

The R60MN41005040J is a 1 µF film capacitor manufactured by KEMET, designed for through-hole radial mounting in automotive applications. This capacitor utilizes polyester (PET) dielectric material with metallized construction and operates across a temperature range of -55°C to 105°C. The part maintains Active product status and is AEC-Q200 rated for automotive reliability. Substitute parts are identified when equivalent electrical and mechanical parameters are required for component procurement, inventory management, or supply chain continuity.

Substiute Parts

R60MN41005040J

KEMETIn Stock: 1201R60MN41005040J Datasheet

Current PartRFQ

R60MN4100JE40J

KEMETIn Stock: 1473R60MN4100JE40J Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the R60MN41005040J are identified based on strict equivalence across all critical electrical and mechanical parameters. The substitution logic is based on the following key parameters:

Electrical Parameters:

• Capacitance value: 1 µF
• Tolerance: ±5%
• Voltage Rating - DC: 400V
• Voltage Rating - AC: 200V
• Dielectric Material: Polyester, Polyethylene Terephthalate (PET), Metallized

Mechanical Parameters:

• Mounting Type: Through Hole
• Package / Case: Radial
• Lead Spacing: 0.886" (22.50mm)
• Physical Dimensions: 1.043" L x 0.335" W (26.50mm x 8.50mm)
• Height - Seated (Max): 0.673" (17.10mm)
• Termination: PC Pins

Compliance & Certification:

• Series: R60
• Product Status: Active
• AEC-Q200 Rating
• RoHS3 Compliance

Substitute parts must match all parameters listed above to ensure functional and mechanical interchangeability in automotive applications.

Parameter Comparison

Engineering Selection Recommendations

Both the R60MN41005040J and R60MN4100JE40J are Active product status components manufactured by KEMET within the R60 series. Both parts carry AEC-Q200 automotive qualification and maintain ROHS3 compliance. Selection between these parts is based on inventory availability and supply chain requirements, as all electrical and mechanical parameters are identical. Both parts are suitable for direct substitution in automotive through-hole applications requiring 1 µF, 400V DC film capacitors with radial lead configuration.

Frequently Asked Questions (FAQ)

Q: Can R60MN4100JE40J be used as a direct replacement for R60MN41005040J?

A: Yes. Both parts are electrically and mechanically equivalent. They share identical capacitance (1 µF), voltage ratings (400V DC / 200V AC), dielectric material (PET metallized), operating temperature range (-55°C to 105°C), physical dimensions, lead spacing, and termination type. Both are AEC-Q200 rated and ROHS3 compliant.

Q: Are there any differences in the physical footprint between these parts?

A: No. Both parts have identical dimensions: 1.043" L x 0.335" W (26.50mm x 8.50mm), with a maximum seated height of 0.673" (17.10mm) and lead spacing of 0.886" (22.50mm). They are mechanically interchangeable on PCBs designed for radial through-hole mounting.

Q: What determines substitution eligibility for this capacitor?

A: Substitution is determined by matching all critical parameters: capacitance value, tolerance, DC and AC voltage ratings, dielectric material type, operating temperature range, mounting type, package configuration, physical dimensions, lead spacing, and termination style. Compliance certifications (AEC-Q200, RoHS3) must also align.

Q: Are both parts suitable for automotive applications?

A: Yes. Both R60MN41005040J and R60MN4100JE40J are rated for automotive applications and carry AEC-Q200 qualification, confirming suitability for automotive-grade reliability requirements.

Q: What is the difference between the part numbers?

A: The part numbers differ in their internal coding structure (41005040J versus 4100JE40J), but this reflects internal KEMET designation and does not indicate functional or electrical differences. Both parts are equivalent within the R60 series.
