KEMET R46KF222000N0K Film Capacitor Equivalent & Substitute Parts

Part Overview

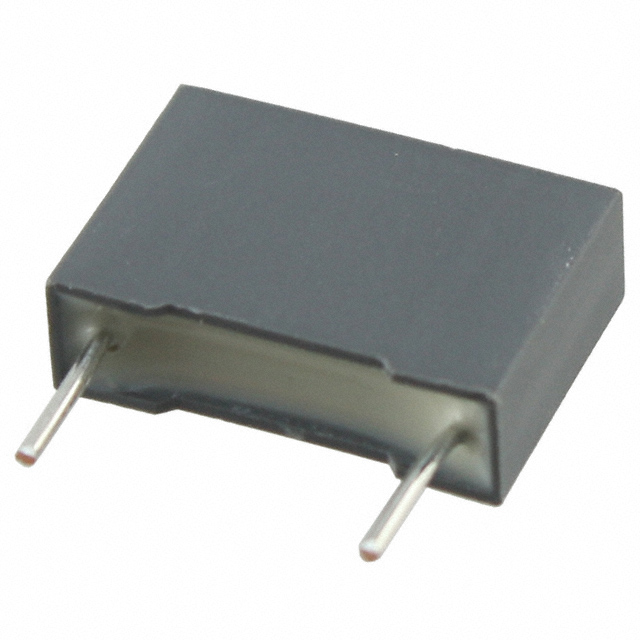

The KEMET R46KF222000N0K is a 0.022 µF film capacitor rated for 560V DC operation with polypropylene dielectric material in a radial through-hole package. This component is classified as Active product status and is designed for EMI and RFI suppression applications. Substitute parts are identified when equivalent electrical and mechanical parameters allow direct replacement in circuit designs while maintaining performance specifications and compliance requirements.

Key Parameters

Parameter	Value
Capacitance	0.022 µF
Tolerance	±10%
Voltage Rating - DC	560V
Voltage Rating - AC	275V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature Range	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Physical Dimensions	0.512" L x 0.157" W (13.00mm x 4.00mm)
Lead Spacing	0.394" (10.00mm)
Ratings Classification	X2
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitute parts for the R46KF222000N0K are identified based on strict parameter equivalence in the following categories:

Primary Substitution Criteria:

Capacitance value: 0.022 µF (exact match required)
Tolerance: ±10% (exact match required)
Dielectric material: Polypropylene (PP), Metallized (exact match required)
Operating temperature range: -40°C ~ 110°C (exact match required)
Mounting type: Through Hole (exact match required)
Package type: Radial (exact match required)
Physical dimensions: 0.512" L x 0.157" W / 13.00mm x 4.00mm (exact match required)
Lead spacing: 0.394" (10.00mm) (exact match required)
Ratings classification: X2 (exact match required)

Secondary Substitution Criteria (Voltage Rating): Substitute parts may have equal or higher voltage ratings (DC and AC) than the main part, provided all other parameters remain identical. Higher voltage ratings do not affect circuit compatibility in applications requiring lower voltage specifications.

Parameter Comparison

Parameter	R46KF222000N0K (Main)	R46KF222050N0K	R463F222000N0K	R463F222050N0K
Manufacturer	KEMET	KEMET	KEMET	KEMET
Capacitance	0.022 µF	0.022 µF	0.022 µF	0.022 µF
Tolerance	±10%	±10%	±10%	±10%
Voltage Rating - DC	560V	560V	630V	630V
Voltage Rating - AC	275V	275V	310V	310V
Dielectric Material	Polypropylene (PP), Metallized	Polypropylene (PP), Metallized	Polypropylene (PP), Metallized	Polypropylene (PP), Metallized
Operating Temperature	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C	-40°C ~ 110°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	Radial	Radial	Radial	Radial
Physical Dimensions	13.00mm x 4.00mm	13.00mm x 4.00mm	13.00mm x 4.00mm	13.00mm x 4.00mm
Lead Spacing	10.00mm	10.00mm	10.00mm	10.00mm
Ratings Classification	X2	X2	X2	X2
Product Status	Active	Active	Active	Active
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant

Engineering Selection Recommendations

All listed substitute parts maintain Active product status and ROHS3 compliance, ensuring continued availability and regulatory conformance. Selection between R46KF222000N0K and R46KF222050N0K is determined by lead spacing tolerance requirements, as both share identical electrical and mechanical specifications. Selection between 560V-rated parts (R46KF series) and 630V-rated parts (R463F series) is determined by circuit voltage requirements; 630V-rated parts provide additional voltage margin and are suitable for applications requiring higher voltage headroom.

Frequently Asked Questions (FAQ)

Q: Can R463F222000N0K or R463F222050N0K replace R46KF222000N0K in a 560V circuit?

A: Yes. The R463F series parts are rated for 630V DC, which exceeds the 560V requirement. Higher voltage ratings do not compromise circuit performance in lower voltage applications. All other electrical and mechanical parameters are identical.

Q: What is the difference between R46KF222050N0K and R46KF222000N0K?

A: Both parts share identical electrical specifications and physical dimensions. The designation difference reflects manufacturing or packaging variations. Both are suitable for direct substitution in the same circuit application.

Q: Are there differences between R463F222000N0K and R463F222050N0K?

A: Both R463F parts have identical electrical and mechanical specifications. The designation difference does not affect circuit compatibility or performance characteristics.

Q: Can these capacitors be used interchangeably in PCB assembly?

A: Yes, all listed parts share identical radial through-hole package specifications, physical dimensions (13.00mm x 4.00mm), and lead spacing (10.00mm). PCB footprints and assembly processes require no modification.

Q: What applications are these capacitors designed for?

A: These polypropylene film capacitors are specified for EMI and RFI suppression applications with X2 ratings classification, indicating suitability for line-to-neutral filtering in AC mains circuits.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All listed parts, including the main part R46KF222000N0K and all substitutes, maintain ROHS3 compliance status.
