R1966DBLKREDIP Equivalent & Substitute Parts

Part Overview

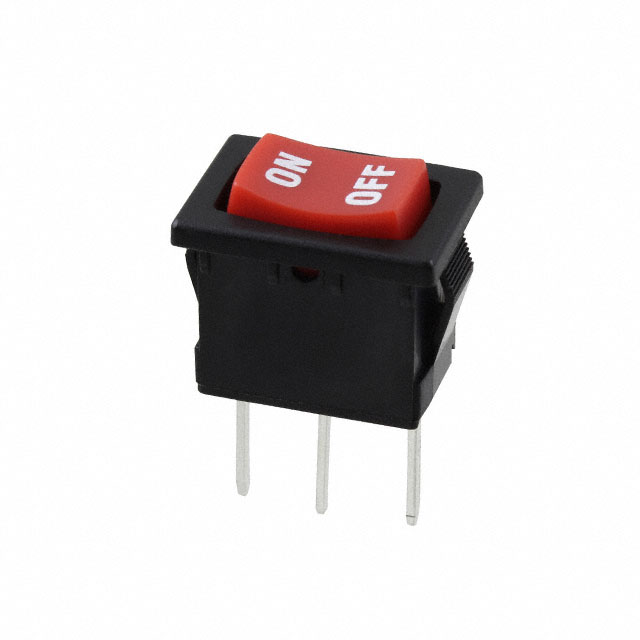

The R1966DBLKREDIP is a rocker switch manufactured by E-Switch, featuring SPDT (Single Pole Double Throw) circuit configuration with 15A AC current rating at 125V. This component is designed for panel mount, snap-in installation with a concave red actuator marked "ON OFF" in vertical orientation. The product is currently obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and component sourcing.

Substiute Parts

R1966DBLKREDIP

E-SwitchIn Stock: 1080R1966DBLKREDIP Datasheet

Current PartRFQ

R1966DBLKBLKEP

E-SwitchIn Stock: 943R1966DBLKBLKEP Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the R1966DBLKREDIP is determined by strict equivalence across the following critical parameters:

• Electrical Specifications: Circuit configuration (SPDT), switch function (On-Off-On), current rating (15A AC), and voltage rating (125V AC) must remain identical
• Mechanical Interface: Mounting type (Panel Mount, Snap-In), panel cutout dimensions (19.40mm x 13.00mm rectangular), and termination style (PC Pin) must be unchanged
• Environmental Performance: Operating temperature range (-30°C to 65°C), mechanical life (30,000 cycles), and electrical life (10,000 cycles) must be maintained
• Compliance: RoHS3 compliance status must be preserved

The R1966DBLKBLKEP substitute part maintains all critical electrical and mechanical parameters while differing only in actuator color (black versus red) and actuator marking (no marking versus "ON OFF" vertical marking). These cosmetic differences do not affect functional equivalence or electrical performance.

Parameter Comparison

Engineering Selection Recommendations

The R1966DBLKBLKEP is the manufacturer-recommended substitute for the obsolete R1966DBLKREDIP. Both components share identical electrical ratings, mechanical interfaces, and environmental performance specifications. The substitute part maintains active product status with current manufacturing support, ensuring long-term availability and supply chain continuity.

Selection of the R1966DBLKBLKEP is appropriate for applications where the original R1966DBLKREDIP is no longer available. The actuator color and marking differences are cosmetic and do not impact electrical function, circuit behavior, or mechanical compatibility. Both parts carry ROHS3 compliance certification and equivalent lifecycle ratings.
