SMA Connector Jack R125462000 Equivalent & Substitute Parts

Part Overview

The R125462000 is an SMA Connector Jack, Female Socket rated for 50 Ohms impedance with panel mount solder termination, manufactured by Radiall USA, Inc. This connector operates across a frequency range up to 18 GHz and is designed for RF coaxial applications requiring reliable signal transmission in the microwave frequency band. The part maintains Active product status and is RoHS Compliant, making it suitable for modern electronic assemblies. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical mounting configurations, and material compatibility to ensure functional interchangeability in circuit designs.

Key Parameters

Parameter	Value
Connector Style	SMA
Connector Type	Jack, Female Socket
Impedance	50 Ohms
Mounting Type	Panel Mount
Mounting Feature	Flange
Contact Termination	Solder
Shield Termination	Solder
Frequency - Max	18 GHz
Number of Ports	1
Operating Temperature	-65°C ~ 165°C
Mating Cycles	500
Voltage Rating	500 V
Dielectric Material	Polytetrafluoroethylene (PTFE)
Body Material	Stainless Steel
Body Finish	Gold
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Features	Extended Insulation
Housing Color	Gold
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the R125462000 are classified based on strict electrical and mechanical parameter matching. The primary substitution criteria are:

Critical Matching Parameters:

Connector Style: SMA
Connector Type: Jack, Female Socket
Impedance: 50 Ohms
Mounting Type: Panel Mount
Mounting Feature: Flange
Contact Termination: Solder
Shield Termination: Solder
Frequency - Max: 18 GHz
Number of Ports: 1
Dielectric Material: Polytetrafluoroethylene (PTFE)
Center Contact Plating: Gold
Body Finish: Gold

Parametric Equivalents (9308-1113-001, R125464000, R125512000, 142-1701-011, 142-1701-031, 142-1701-041, 142-1701-336, 23_SMA-50-0-13/111_NE, 2950-6061) maintain all critical electrical and mechanical parameters. Variations in body material (Brass vs. Stainless Steel vs. Beryllium Copper), voltage rating (335 V vs. 500 V), operating temperature range (-65°C ~ 125°C vs. -65°C ~ 165°C), and compliance certifications (RoHS vs. ROHS3, REACH status) do not affect functional interchangeability for standard RF applications.

Similar Part (142-1701-201) matches all critical parameters with identical electrical performance and mechanical compatibility.

Parameter Comparison

Part Number	Manufacturer	Impedance	Frequency - Max	Operating Temperature	Voltage Rating	Body Material	Mating Cycles	RoHS Status	Inventory
R125462000	Radiall USA, Inc.	50 Ohms	18 GHz	-65°C ~ 165°C	500 V	Stainless Steel	500	RoHS Compliant	852 Pcs
9308-1113-001	Radiall USA, Inc.	50 Ohms	18 GHz	-65°C ~ 165°C	Not Specified	Stainless Steel	500	ROHS3 Compliant	693 Pcs
R125464000	Radiall USA, Inc.	50 Ohms	18 GHz	-65°C ~ 165°C	500 V	Stainless Steel	500	ROHS3 Compliant	845 Pcs
R125512000	Radiall USA, Inc.	50 Ohms	18 GHz	-65°C ~ 165°C	500 V	Stainless Steel	500	ROHS3 Compliant	1409 Pcs
142-1701-201	Cinch Connectivity Solutions	50 Ohms	18 GHz	-65°C ~ 165°C	335 V	Brass	500	ROHS3 Compliant	997 Pcs
142-1701-011	Cinch Connectivity Solutions Johnson	50 Ohms	18 GHz	-65°C ~ 165°C	335 V	Brass	500	RoHS Compliant	1209 Pcs

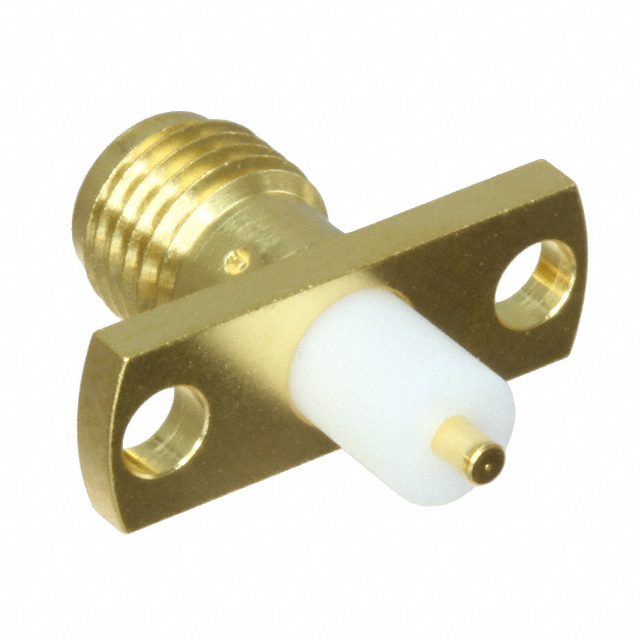

142-1701-031	Cinch Connectivity Solutions	50 Ohms	18 GHz	-65°C ~ 165°C	335 V	Brass	500	ROHS3 Compliant	989 Pcs
142-1701-041	Cinch Connectivity Solutions Johnson	50 Ohms	18 GHz	-65°C ~ 165°C	335 V	Brass	500	ROHS3 Compliant	988 Pcs
142-1701-336	Cinch Connectivity Solutions	50 Ohms	18 GHz	-65°C ~ 165°C	335 V	Brass	500	ROHS3 Compliant	5129 Pcs
23_SMA-50-0-13/111_NE	Huber+Suhner, Inc.	50 Ohms	18 GHz	-65°C ~ 125°C	Not Specified	Beryllium Copper	500	ROHS3 Compliant	853 Pcs
2950-6061	Amphenol SV Microwave	50 Ohms	18 GHz	Not Specified	Not Specified	Stainless Steel	500	ROHS3 Compliant	2100 Pcs

Engineering Selection Recommendations

All listed substitute parts maintain functional equivalence to the R125462000 based on matching SMA connector style, 50 Ohm impedance, 18 GHz frequency capability, panel mount flange configuration, and solder termination. Selection among substitutes should prioritize the following factors:

Compliance and Certification: Parts with ROHS3 Compliant status (R125464000, R125512000, 142-1701-031, 142-1701-041, 142-1701-336, 23_SMA-50-0-13/111_NE, 2950-6061) align with current regulatory requirements. The original R125462000 carries RoHS Compliant status, which remains acceptable for existing designs.

Manufacturer Continuity: Radiall USA, Inc. parts (R125462000, 9308-1113-001, R125464000, R125512000) provide supply chain consistency. Cinch Connectivity Solutions and Amphenol SV Microwave alternatives offer expanded inventory availability.

Operating Temperature Range: The R125462000 operates from -65°C to 165°C. The 23_SMA-50-0-13/111_NE operates to -65°C to 125°C, which is suitable for applications not requiring the extended upper temperature capability.

Voltage Rating: The R125462000 is rated for 500 V. Cinch Connectivity Solutions parts are rated for 335 V, which remains adequate for standard RF applications but should be verified for high-voltage circuit requirements.

Inventory Availability: 142-1701-336 (5129 Pcs), R125512000 (1409 Pcs), and 2950-6061 (2100 Pcs) offer the highest stock levels for immediate procurement.

Frequently Asked Questions (FAQ)

Q: Can I substitute the R125462000 with any of the listed parts without circuit redesign?

A: Yes. All listed parts maintain identical SMA connector style, 50 Ohm impedance, 18 GHz frequency capability, panel mount flange mounting, and solder termination. Electrical and mechanical compatibility is preserved across all substitutes.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant status?

A: Both certifications indicate compliance with Restriction of Hazardous Substances regulations. ROHS3 represents the current regulatory standard. Parts with either certification are acceptable; ROHS3 Compliant parts align with current manufacturing standards.

Q: Does the body material difference (Stainless Steel vs. Brass vs. Beryllium Copper) affect performance?

A: No. All body materials specified maintain the required electrical conductivity and shielding effectiveness for 50 Ohm RF applications. Material selection reflects manufacturing process variations and does not impact functional performance in standard RF circuits.

Q: Why do some parts have lower voltage ratings (335 V vs. 500 V)?

A: Voltage rating differences reflect design variations among manufacturers. For standard RF signal transmission applications, both ratings are adequate. Verify voltage requirements for your specific circuit design, particularly in high-voltage or high-power applications.

Q: Is the operating temperature range difference (-65°C ~ 165°C vs. -65°C ~ 125°C) significant?

A: The difference is relevant only for applications requiring operation above 125°C. For standard RF applications operating within -65°C to 125°C, both temperature ranges are functionally equivalent. Verify your application's thermal requirements before selection.

Q: What packaging options are available?

A: The R125462000 is supplied in standard packaging. Substitute parts are available in Bulk, Box, or Bulk packaging configurations. Packaging does not affect electrical or mechanical performance; selection depends on procurement and inventory management requirements.

Q: Are all parts suitable for immediate substitution in existing PCB designs?

A: Yes. All substitute parts maintain identical SMA connector geometry, flange mounting configuration, and solder termination compatibility. No PCB layout modifications are required for direct substitution.
