QTH-090-04-F-D-A-TR Equivalent & Substitute Parts

Part Overview

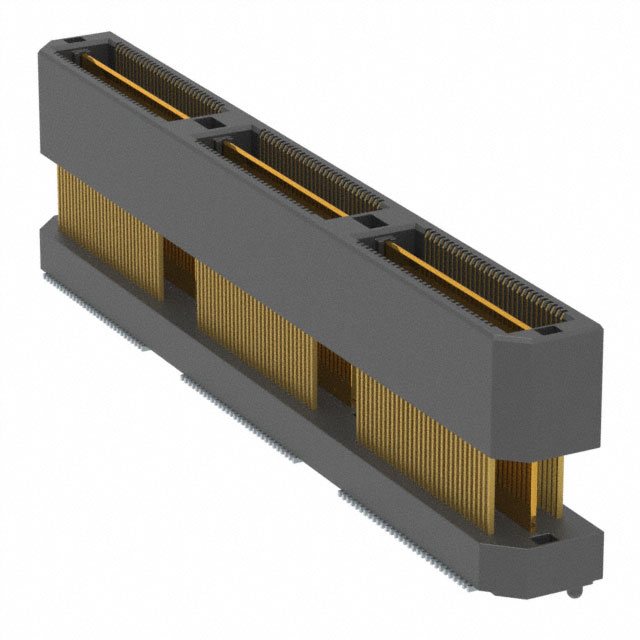

The QTH-090-04-F-D-A-TR is a 180-position rectangular connector header manufactured by Samtec Inc. as part of the Q Strip® QTH series. This surface mount component features outer shroud contacts with gold plating and is designed for high-density interconnect applications. The part is currently active in production with 1,094 units available in stock. Substitute parts are identified when packaging or specific configuration variants are required while maintaining electrical and mechanical compatibility within the same connector series.

Substiute Parts

QTH-090-04-F-D-A-TR

Samtec Inc.In Stock: 1116QTH-090-04-F-D-A-TR Datasheet

Current PartRFQ

QTH-090-04-F-D-A

Samtec Inc.In Stock: 825QTH-090-04-F-D-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution within the QTH-090 connector family is determined by the following critical parameters that must remain constant:

• Number of positions: 180
• Pitch: 0.020" (0.50mm)
• Number of rows: 2
• Connector type: Header, Outer Shroud Contacts
• Mounting type: Surface Mount
• Contact finish: Gold
• Contact finish thickness: 3.00µin (0.076µm)
• Height above board: 0.600" (15.24mm)
• Mated stacking heights: 16mm
• Features: Board Guide, Ground Bus (Plane)

Variations in packaging format (Tape & Reel versus Tray) do not affect electrical or mechanical compatibility and permit substitution between QTH-090-04-F-D-A-TR and QTH-090-04-F-D-A.

Parameter Comparison

Engineering Selection Recommendations

Both QTH-090-04-F-D-A-TR and QTH-090-04-F-D-A are active production parts with ROHS3 compliance and identical electrical and mechanical specifications. Selection between these parts is determined by packaging requirements and supply availability. The Tape & Reel format (QTH-090-04-F-D-A-TR) is suitable for automated assembly processes, while the Tray format (QTH-090-04-F-D-A) accommodates alternative handling and storage methods. Both parts carry MSL 1 rating, indicating no moisture sensitivity restrictions during storage and handling.

Frequently Asked Questions (FAQ)

Q: Can QTH-090-04-F-D-A be used in place of QTH-090-04-F-D-A-TR?

A: Yes. Both parts are electrically and mechanically identical. The difference is packaging format only: Tape & Reel versus Tray. Substitution is valid provided assembly processes accommodate the alternative packaging.

Q: What determines compatibility between these connector variants?

A: Compatibility is maintained when the following parameters remain constant: 180 positions, 0.020" pitch, 2 rows, gold contact finish at 3.00µin thickness, 0.600" height above board, and identical features (Board Guide, Ground Bus). Packaging format does not affect compatibility.

Q: Are there compliance differences between the two parts?

A: No. Both parts are ROHS3 compliant with MSL 1 rating and identical ECCN and HTSUS classifications.

Q: Which packaging format should be selected for high-volume production?

A: Tape & Reel (QTH-090-04-F-D-A-TR) is standard for automated pick-and-place assembly. Tray format (QTH-090-04-F-D-A) is selected when manual handling or alternative assembly equipment is required.
