QTH-040-03-L-D-DP-A-TR Equivalent & Substitute Parts

Part Overview

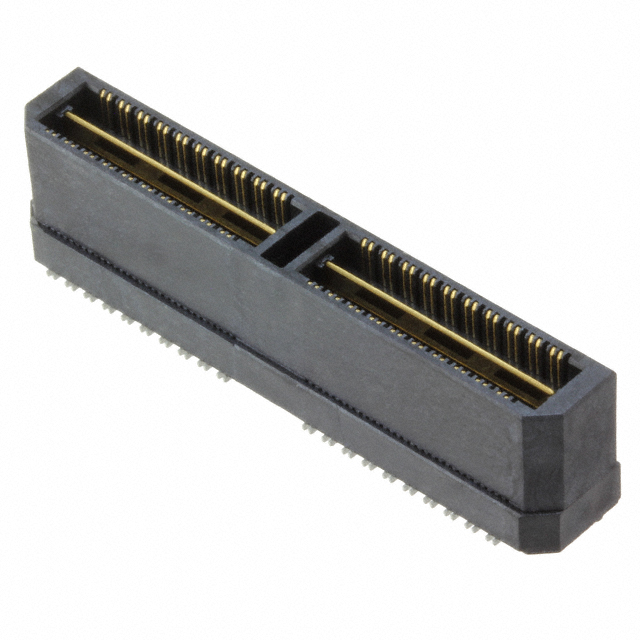

The QTH-040-03-L-D-DP-A-TR is an 80-position differential pair array connector manufactured by Samtec Inc. as part of the Q Strip® QTH series. This surface mount male connector features gold-plated contacts and is designed for high-density interconnect applications requiring differential signaling. The part is currently active in production with full RoHS3 compliance and unlimited moisture sensitivity rating. Substitute parts are identified based on identical electrical and mechanical specifications with variations limited to packaging configuration.

Substiute Parts

QTH-040-03-L-D-DP-A-TR

Samtec Inc.In Stock: 1175QTH-040-03-L-D-DP-A-TR Datasheet

Current PartRFQ

QTH-040-03-L-D-DP-A

Samtec Inc.In Stock: 1498QTH-040-03-L-D-DP-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the QTH-040-03-L-D-DP-A-TR is determined by strict equivalence across the following critical parameters:

• Connector type and gender (Differential Pair Array, Male)
• Position count and row configuration (80 positions, 2 rows)
• Pitch specification (0.020" / 0.50mm)
• Contact material and finish (Gold, 10.0µin thickness)
• Mounting technology (Surface Mount)
• Mechanical envelope (11mm stacking height, 0.404" height above board)
• Compliance certifications (RoHS3, MSL 1)

The identified substitute part QTH-040-03-L-D-DP-A differs only in packaging configuration (Tray versus Tape & Reel). All electrical and mechanical parameters remain identical, making this part functionally interchangeable at the component level.

Parameter Comparison

Engineering Selection Recommendations

Both the QTH-040-03-L-D-DP-A-TR and QTH-040-03-L-D-DP-A maintain active production status with full RoHS3 compliance and MSL 1 rating. Selection between these parts is determined by supply chain and assembly process requirements rather than electrical or mechanical performance.

The QTH-040-03-L-D-DP-A-TR in Tape & Reel packaging is suitable for high-volume automated assembly operations utilizing pick-and-place equipment. The QTH-040-03-L-D-DP-A in Tray packaging accommodates manual assembly processes or lower-volume production runs. Both configurations deliver identical component performance and board-level functionality.

Frequently Asked Questions (FAQ)

Q: Are these parts electrically identical? A: Yes. Both parts feature identical contact configurations, pitch, row count, and gold plating specifications. Electrical performance and signal integrity characteristics are equivalent.

Q: Can I substitute the Tray-packaged part for the Tape & Reel version in production? A: Substitution is feasible at the component level. However, assembly process compatibility must be evaluated. Tape & Reel packaging integrates with automated pick-and-place systems, while Tray packaging requires manual handling or alternative feeder systems.

Q: Do packaging differences affect PCB footprint or mounting? A: No. Packaging configuration does not alter the component's physical footprint, pad layout, or mounting characteristics. PCB design and assembly procedures remain unchanged.

Q: Are both parts compliant with current regulations? A: Yes. Both parts carry ROHS3 compliance and MSL 1 rating, meeting current environmental and reliability standards.

Q: What is the significance of the 0.020" pitch specification? A: The 0.020" (0.50mm) pitch defines the center-to-center spacing between contact positions. This specification is critical for PCB footprint design and connector mating. Both parts maintain identical pitch.
