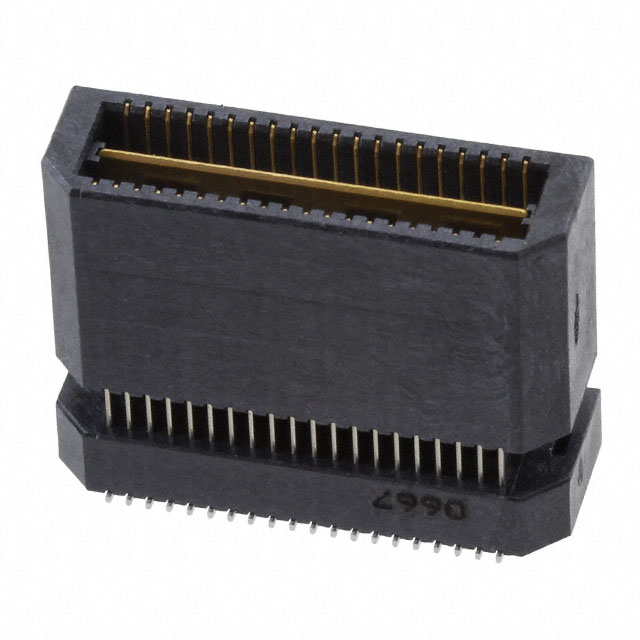

QTE-020-04-F-D-A-TR Equivalent & Substitute Parts

Part Overview

The QTE-020-04-F-D-A-TR is a 40-position rectangular connector header manufactured by Samtec Inc. as part of the Q Strip® QTE series. This surface mount component features outer shroud contacts with gold plating and is designed for applications requiring dual-row header connectivity with board guide and ground bus plane features. The part maintains Active product status with ROHS3 compliance and unlimited moisture sensitivity rating (MSL 1). Substitute parts are identified based on matching electrical specifications, mechanical dimensions, and connector interface characteristics while accommodating different packaging formats.

Substiute Parts

QTE-020-04-F-D-A-TR

Samtec Inc.In Stock: 857QTE-020-04-F-D-A-TR Datasheet

Current PartRFQ

QTE-020-04-F-D-A

Samtec Inc.In Stock: 3501QTE-020-04-F-D-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the QTE-020-04-F-D-A-TR is determined by strict equivalence across the following critical parameters:

• Connector type and contact configuration (Header, Outer Shroud Contacts)
• Electrical interface: 40 positions, 2-row arrangement, 0.031" (0.80mm) pitch
• Mechanical compatibility: Surface mount, 0.600" (15.24mm) height above board, 16mm mated stacking height
• Contact material and finish: Gold plating at 3.00µin (0.076µm) thickness
• Functional features: Board guide and ground bus plane presence
• Compliance certifications: ROHS3 compliance and MSL 1 rating

The identified substitute differs only in packaging format (Tray versus Tape & Reel), which does not affect electrical or mechanical performance. All other specifications remain identical.

Parameter Comparison

Engineering Selection Recommendations

Both the QTE-020-04-F-D-A-TR and QTE-020-04-F-D-A maintain Active product status with identical electrical and mechanical specifications. Selection between these parts is determined by packaging and supply chain requirements rather than functional performance.

The QTE-020-04-F-D-A-TR in Tape & Reel packaging is suitable for high-volume automated assembly processes where continuous feed capability is required. The QTE-020-04-F-D-A in Tray packaging accommodates manual assembly operations or lower-volume production runs. Both parts satisfy ROHS3 compliance and MSL 1 moisture sensitivity requirements for standard storage and handling conditions.
