QR/P6-16S-C(01) Equivalent & Substitute Parts

Part Overview

The QR/P6-16S-C(01) is a 16-position housing for female sockets connector manufactured by Hirose Electric Co., Ltd., designed for rack and panel backplane applications. This connector features a black panel mount configuration with a 0.100" (2.54mm) pitch and mating guide functionality. The part is currently classified as obsolete, which necessitates identification of active equivalent and substitute components to maintain system compatibility and ensure continued availability for new designs and field replacements.

Substiute Parts

QR/P6-16S-C(01)

Hirose Electric Co., Ltd.In Stock: 1078QR/P6-16S-C(01) Datasheet

Current PartRFQ

QR/P6-16S-C(21)

Hirose Electric Co LtdIn Stock: 1144QR/P6-16S-C(21) Datasheet

MFR RecommendedRFQ

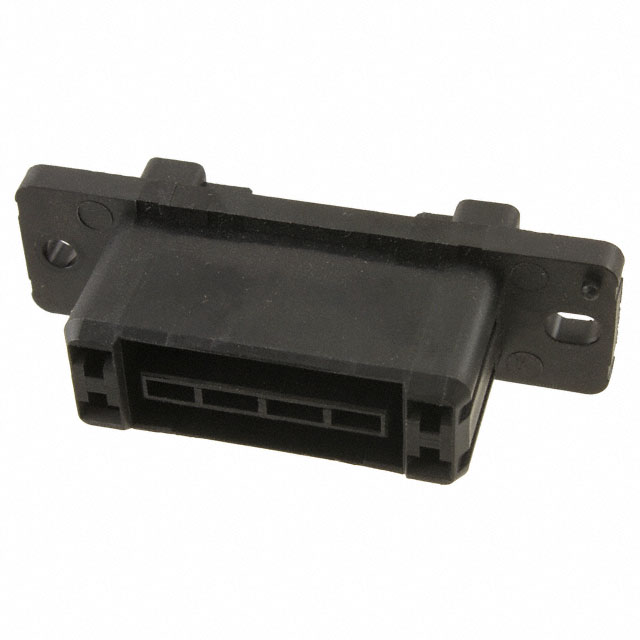

2-292185-0

TE Connectivity AMP ConnectorsIn Stock: 10542-292185-0 Datasheet

MFR RecommendedRFQ

5172625-3

TE Connectivity AMP ConnectorsIn Stock: 14785172625-3 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the QR/P6-16S-C(01) is determined by the following critical parameters: connector type (housing for female sockets), connector style (rack and panel or compatible drawer configuration), mounting type (panel mount), connector usage (receptacle), and RoHS compliance status. The substitute parts identified are grouped based on their ability to fulfill the receptacle housing function in backplane applications while maintaining panel mount installation capability.

The primary substitute, QR/P6-16S-C(21), is a direct equivalent from the same manufacturer and series, differing only in product status (active versus obsolete) and packaging format. The TE Connectivity alternatives (2-292185-0 and 5172625-3) represent functional substitutes with different connector styles and position counts, suitable for applications where mechanical and electrical interface requirements can accommodate these variations.

Parameter Comparison

Engineering Selection Recommendations

QR/P6-16S-C(21) is the primary recommended substitute for the obsolete QR/P6-16S-C(01). Both parts are manufactured by Hirose Electric Co., Ltd., belong to the same QR/P6 series, and maintain identical electrical and mechanical specifications including 16-position capacity, 0.100" pitch, 2-row configuration, and black color. The only substantive difference is product status: QR/P6-16S-C(21) is active and available in bag packaging, whereas QR/P6-16S-C(01) is obsolete. This part is suitable for direct replacement in new designs and field service applications.

The TE Connectivity alternatives (2-292185-0 and 5172625-3) are secondary options applicable only when system design permits accommodation of different connector styles, position counts, and mechanical interfaces. These parts maintain RoHS compliance and panel mount capability but introduce design modifications that require engineering evaluation for compatibility with existing mating connectors and PCB layouts.

Frequently Asked Questions (FAQ)

Q: Can QR/P6-16S-C(21) be used as a direct replacement for QR/P6-16S-C(01)?

A: Yes. Both parts are identical in electrical and mechanical specifications, including position count (16), pitch (0.100"), row configuration (2), connector style (rack and panel), and color (black). QR/P6-16S-C(21) is the active production equivalent and is suitable for direct substitution.

Q: What are the key differences between the Hirose and TE Connectivity substitutes?

A: The Hirose QR/P6-16S-C(21) maintains full compatibility with the original part. The TE Connectivity alternatives differ in connector style (Mini-Drawer or Drawer versus Rack and Panel), position count (24 versus 16), and pitch specifications. These differences require mechanical and electrical interface verification before implementation.

Q: Are all substitute parts RoHS compliant?

A: Yes. The QR/P6-16S-C(21), 2-292185-0, and 5172625-3 are all RoHS compliant and carry MSL rating 1 (unlimited moisture sensitivity level), matching the compliance profile of the original QR/P6-16S-C(01).

Q: What packaging formats are available for the substitute parts?

A: QR/P6-16S-C(21) is supplied in bag packaging. The 2-292185-0 is supplied in tray packaging. The 5172625-3 is supplied in bulk packaging. Packaging selection may impact procurement lead times and handling requirements.

Q: Do the TE Connectivity parts require different mating connectors?

A: Yes. The 2-292185-0 (Mini-Drawer style) and 5172625-3 (Drawer style) have different mechanical interfaces than the original Rack and Panel style. Mating connector compatibility must be verified before selection.
