QMS-052-06.75-L-D-A-TR Equivalent & Substitute Parts

Part Overview

The QMS-052-06.75-L-D-A-TR is a 104-position connector header from Samtec Inc.'s Power Q2™ QMS series, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as Active product status and is RoHS3 compliant. Substitute parts are identified when packaging or minor dimensional variations do not affect core electrical and mechanical compatibility within the same series and specification set.

Substiute Parts

QMS-052-06.75-L-D-A-TR

Samtec Inc.In Stock: 843QMS-052-06.75-L-D-A-TR Datasheet

Current PartRFQ

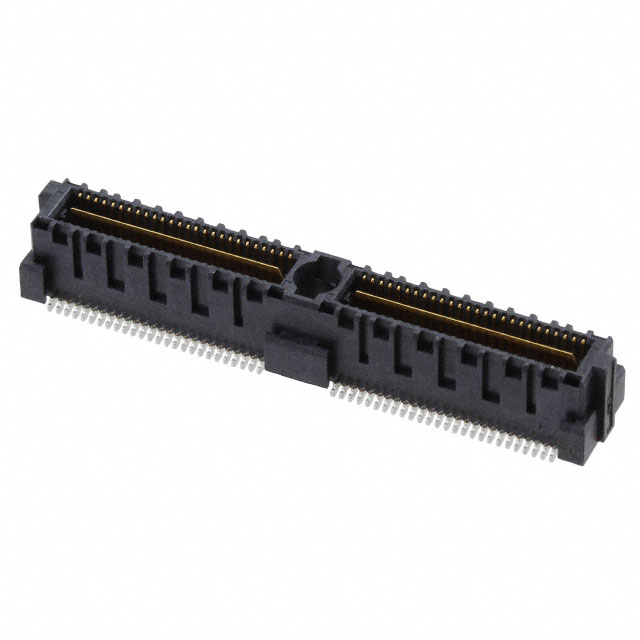

QMS-052-06.75-L-D-A

Samtec Inc.In Stock: 1230QMS-052-06.75-L-D-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The QMS-052-06.75-L-D-A-TR and QMS-052-06.75-L-D-A are functionally equivalent based on the following criteria:

Identical Parameters:

• Manufacturer: Samtec Inc.
• Series: Power Q2™ QMS
• Number of Positions: 104
• Pitch: 0.025" (0.64mm)
• Number of Rows: 2
• Connector Type: Header, Outer Shroud Contacts
• Mounting Type: Surface Mount
• Contact Finish: Gold
• Contact Finish Thickness: 10.0µin (0.25µm)
• Features: Board Guide, Ground Bus (Plane)
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)
• Base Product Number: QMS-052

Differentiating Factor: The primary difference is packaging: QMS-052-06.75-L-D-A-TR is supplied in Tape & Reel (TR) format, while QMS-052-06.75-L-D-A is supplied in Tray format. This distinction affects handling and storage but does not alter electrical or mechanical performance.

Parameter Comparison

Engineering Selection Recommendations

Both QMS-052-06.75-L-D-A-TR and QMS-052-06.75-L-D-A meet identical electrical and mechanical specifications for 104-position surface mount connector header applications. Selection between these parts should be based on:

Packaging Requirements: Choose QMS-052-06.75-L-D-A-TR for automated assembly processes requiring tape and reel format. Select QMS-052-06.75-L-D-A for manual assembly or applications where tray packaging is preferred.

Height Tolerance: Note the minor height above board difference (0.250" vs 0.265"). Verify PCB layout clearance if vertical space is constrained.

Compliance: Both parts are ROHS3 compliant and carry MSL 1 rating, suitable for unlimited shelf life storage without baking requirements.

Frequently Asked Questions (FAQ)

Q: Can QMS-052-06.75-L-D-A be used as a direct replacement for QMS-052-06.75-L-D-A-TR?

A: Yes, from an electrical and mechanical standpoint. The parts are functionally identical. The difference is packaging format (Tray vs. Tape & Reel). Verify your assembly process accommodates the tray format before substitution.

Q: What is the significance of the height above board difference between these parts?

A: QMS-052-06.75-L-D-A-TR has a height of 0.250" (6.35mm), while QMS-052-06.75-L-D-A measures 0.265" (6.73mm). This 0.015" (0.38mm) difference is minor but should be confirmed against PCB layout constraints, particularly in space-limited applications.

Q: Are both parts suitable for high-reliability applications?

A: Both parts carry ROHS3 compliance and MSL 1 rating. Compliance certifications are identical. Application suitability depends on your specific reliability requirements and environmental conditions, which should be evaluated against Samtec's published specifications.

Q: Does packaging format affect component performance?

A: No. Tape & Reel and Tray packaging formats do not alter electrical or mechanical performance. The choice is driven by assembly process requirements and inventory management practices.

Q: What is the base product number, and why is it relevant?

A: The base product number is QMS-052. This identifier groups all variants within the same connector family. Parts sharing the same base number maintain core design compatibility within their specified parameter ranges.
