QFS-052-04.25-L-D-A-TR Equivalent & Substitute Parts

Part Overview

The QFS-052-04.25-L-D-A-TR is a 104-position rectangular connector receptacle from Samtec Inc.'s Power Q2™ QFS series. This surface mount component features center strip contacts with gold plating and is designed for high-density interconnect applications. The part is currently active in production status and maintains full RoHS3 compliance with MSL 1 rating, indicating unlimited shelf life under standard storage conditions. Substitute parts are identified when packaging format differs while maintaining identical electrical and mechanical specifications, allowing for flexible procurement and inventory management across equivalent packaging options.

Substiute Parts

QFS-052-04.25-L-D-A-TR

Samtec Inc.In Stock: 1079QFS-052-04.25-L-D-A-TR Datasheet

Current PartRFQ

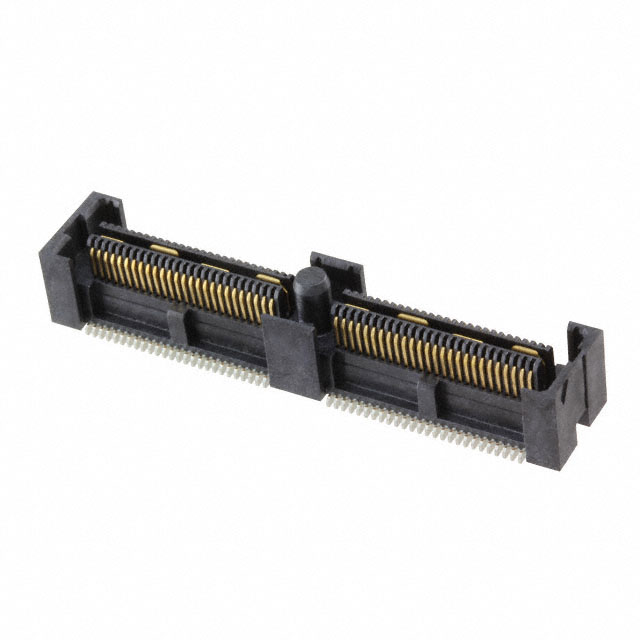

QFS-052-04.25-L-D-A

Samtec Inc.In Stock: 4510QFS-052-04.25-L-D-A Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the QFS-052-04.25-L-D-A-TR is determined by strict equivalence across the following critical parameters:

• Number of positions: 104
• Pitch: 0.025" (0.64mm)
• Number of rows: 2
• Connector type: Receptacle, Center Strip Contacts
• Mounting type: Surface Mount
• Contact finish: Gold with 10.0µin thickness
• Height above board: 0.278" (7.06mm)
• Mated stacking heights: 10mm, 11mm, 14mm
• Features: Board Guide, Ground Bus (Plane)
• Series: Power Q2™ QFS
• RoHS and MSL compliance levels

The identified substitute part differs only in packaging format (Tray versus Tape & Reel), which does not affect electrical or mechanical performance. All other specifications remain identical, making this substitution valid for component selection purposes.

Parameter Comparison

Engineering Selection Recommendations

Both the QFS-052-04.25-L-D-A-TR and QFS-052-04.25-L-D-A are active production components with identical electrical and mechanical specifications. Selection between these parts should be based on packaging requirements and inventory availability:

The QFS-052-04.25-L-D-A-TR is supplied in Tape & Reel format, suitable for automated assembly processes requiring continuous component feeding. The QFS-052-04.25-L-D-A is supplied in Tray packaging, offering higher current inventory levels (4428 units versus 990 units) and flexibility for manual or semi-automated assembly operations.

Both parts maintain ROHS3 compliance and MSL 1 rating, ensuring compatibility with standard manufacturing and storage protocols. No additional testing or qualification is required when substituting between these packaging formats, as all functional and environmental specifications remain constant.

Frequently Asked Questions (FAQ)

Q: Can QFS-052-04.25-L-D-A be used as a direct replacement for QFS-052-04.25-L-D-A-TR?

A: Yes. Both parts are electrically and mechanically identical. The only difference is packaging format (Tray versus Tape & Reel). Substitution is valid for any application where the original part is specified.

Q: Does packaging format affect component performance or reliability?

A: No. Packaging format is a logistics and assembly consideration only. It does not impact electrical performance, mechanical fit, or reliability characteristics.

Q: Are there any compliance or certification differences between these parts?

A: No. Both parts carry identical RoHS3 compliance and MSL 1 ratings. No additional certifications or qualifications are required when switching between packaging options.

Q: Which part should be selected for high-volume automated assembly?

A: The QFS-052-04.25-L-D-A-TR (Tape & Reel format) is optimized for automated pick-and-place assembly systems. The QFS-052-04.25-L-D-A (Tray format) is suitable for manual or semi-automated processes.

Q: What is the inventory status for each part?

A: QFS-052-04.25-L-D-A-TR has 990 units in stock. QFS-052-04.25-L-D-A has 4428 units in stock. Availability may vary based on current procurement cycles.

Q: Are there any lead time differences between these parts?

A: Lead time information is not provided in the technical specifications. Contact the supplier for current delivery schedules.
