QFS-026-04.25-L-D-A-GP Equivalent & Substitute Parts

Part Overview

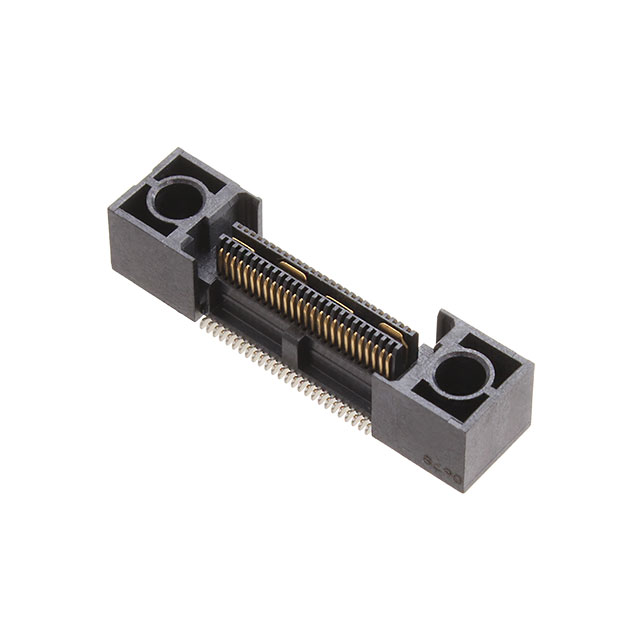

The QFS-026-04.25-L-D-A-GP is a 52-position rectangular connector receptacle manufactured by Samtec Inc. as part of the Power Q2™ QFS series. This surface mount connector features center strip contacts with gold plating and is designed for high-density interconnect applications. The part maintains Active product status and is ROHS3 compliant with MSL 1 rating, indicating unlimited moisture sensitivity protection.

Substitute parts are identified based on identical electrical and mechanical specifications while accommodating different packaging and inventory requirements in production environments.

Substiute Parts

QFS-026-04.25-L-D-A-GP

Samtec Inc.In Stock: 1056QFS-026-04.25-L-D-A-GP Datasheet

Current PartRFQ

QFS-026-04.25-L-D-A-GP-TR

Samtec Inc.In Stock: 933QFS-026-04.25-L-D-A-GP-TR Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the QFS-026-04.25-L-D-A-GP is determined by strict equivalence across the following critical parameters:

• Connector type and contact configuration (Receptacle, Center Strip Contacts)
• Electrical specifications (52 positions, 0.025" pitch, 2 rows)
• Physical dimensions (Height above board: 0.278", Mated stacking heights: 10mm, 11mm, 14mm)
• Contact material and finish (Gold, 10.0µin thickness)
• Mounting technology (Surface Mount)
• Compliance certifications (ROHS3, MSL 1)

The identified substitute differs only in packaging format, maintaining identical connector specifications and performance characteristics. This substitution model accommodates different supply chain and manufacturing assembly requirements without affecting electrical or mechanical compatibility.

Parameter Comparison

Engineering Selection Recommendations

Both the QFS-026-04.25-L-D-A-GP and QFS-026-04.25-L-D-A-GP-TR maintain Active product status with identical electrical and mechanical specifications. Selection between these parts is determined by assembly process requirements and packaging compatibility with automated placement equipment.

The Tray packaging (QFS-026-04.25-L-D-A-GP) is suitable for manual assembly operations and lower-volume production runs. The Tape & Reel packaging (QFS-026-04.25-L-D-A-GP-TR) is optimized for high-speed automated pick-and-place assembly systems.

Both parts satisfy ROHS3 compliance and MSL 1 moisture sensitivity requirements. No functional or performance differences exist between the two variants.

Frequently Asked Questions (FAQ)

Q: Can QFS-026-04.25-L-D-A-GP-TR be used as a direct replacement for QFS-026-04.25-L-D-A-GP?

A: Yes. Both parts are electrically and mechanically identical. The difference is packaging format only. Substitution is valid provided the receiving assembly process supports Tape & Reel input.

Q: What is the primary difference between these substitute parts?

A: Packaging format. QFS-026-04.25-L-D-A-GP ships in Tray packaging, while QFS-026-04.25-L-D-A-GP-TR ships in Tape & Reel format. All connector specifications remain identical.

Q: Are there any compliance or certification differences?

A: No. Both parts carry identical ROHS3 compliance status and MSL 1 moisture sensitivity rating.

Q: Which packaging format should be selected for automated assembly?

A: Tape & Reel packaging (QFS-026-04.25-L-D-A-GP-TR) is designed for automated pick-and-place equipment. Tray packaging (QFS-026-04.25-L-D-A-GP) is suitable for manual assembly operations.

Q: Are the mated stacking heights identical between substitute parts?

A: Yes. Both parts support identical mated stacking heights of 10mm, 11mm, and 14mm.
