Equivalent & Substitute Parts for PX0413/04P/PC

Part Overview

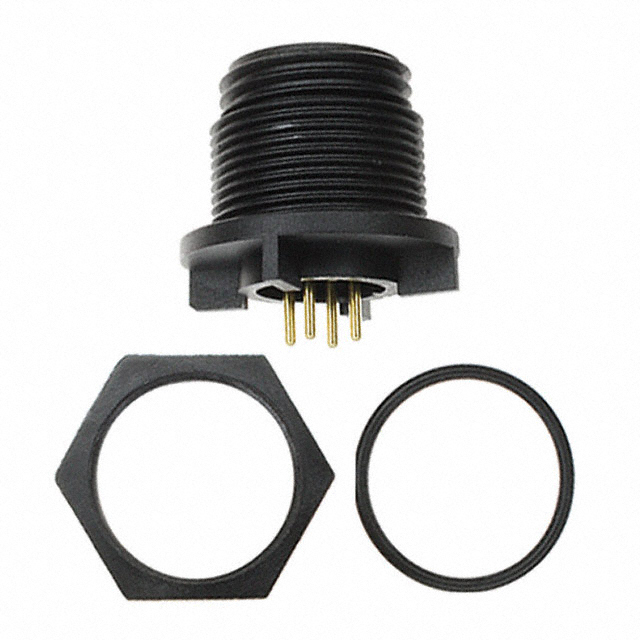

The PX0413/04P/PC is a 4-position circular connector receptacle with male pins, manufactured by Bulgin as part of the Buccaneer® 400 series. This panel-mount, through-hole component features solder termination and is rated for 5A at 125VAC/DC. The connector meets IP68/IP69K ingress protection standards and operates across -40°C to 80°C. As an active product with 1060 units in stock, substitute parts may be required for specific application requirements, inventory constraints, or design modifications that necessitate alternative connector configurations.

Substiute Parts

PX0413/04P/PC

BulginIn Stock: 1107PX0413/04P/PC Datasheet

Current PartRFQ

PX0412/04P

BulginIn Stock: 1093PX0412/04P Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The PX0412/04P qualifies as a substitute based on the following shared electrical and mechanical parameters:

• Same manufacturer (Bulgin) and series (Buccaneer® 400)
• Identical number of positions (4 Power)
• Same panel-mount configuration with keyed orientation
• Matching ingress protection (IP68 minimum)
• Identical operating temperature range (-40°C ~ 80°C)
• Equivalent material flammability rating (UL94 V-0)
• Same RoHS3 compliance and REACH unaffected status

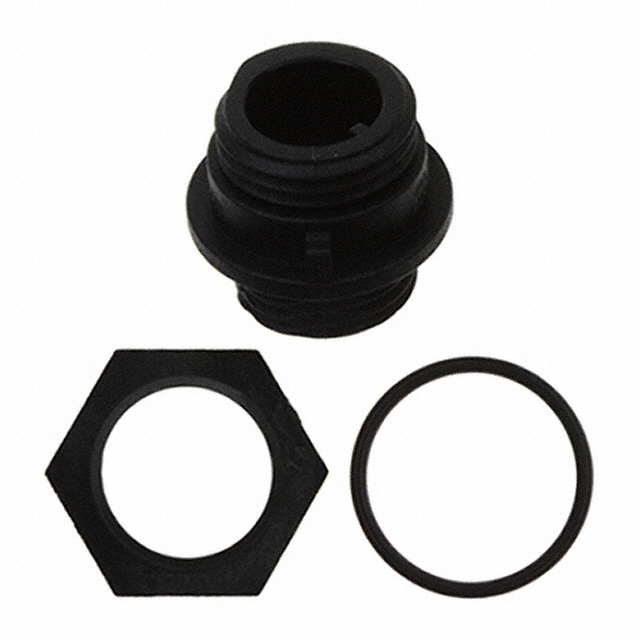

The primary distinction is that PX0412/04P is a receptacle housing component with crimp and solder cup contacts, whereas PX0413/04P/PC is a complete receptacle with integrated male pins and solder termination. This substitution is valid when the application requires a housing-only configuration or when contact assembly flexibility is needed.

Parameter Comparison

Engineering Selection Recommendations

Both PX0413/04P/PC and PX0412/04P maintain active product status and full compliance with ROHS3 and REACH regulations. Selection between these components depends on application architecture:

• Select PX0413/04P/PC when a complete receptacle assembly with integrated male pins and direct solder termination is required.
• Select PX0412/04P when a receptacle housing alone is needed, allowing for separate contact assembly using crimp or solder cup termination methods.

Both components operate within identical temperature ranges and meet equivalent flammability standards. The choice between them is determined by whether the application requires a fully assembled connector or a housing-only component for custom contact configuration.

Frequently Asked Questions (FAQ)

Q: Can PX0412/04P directly replace PX0413/04P/PC in existing designs?

A: Direct replacement is not recommended without design review. PX0413/04P/PC is a complete receptacle with integrated male pins, while PX0412/04P is a housing-only component. Substitution requires separate contact procurement and assembly.

Q: Are the electrical ratings identical between these parts?

A: PX0413/04P/PC specifies 5A at 125VAC/DC. PX0412/04P electrical ratings are not provided in the component data. Electrical compatibility must be confirmed through contact specifications when using PX0412/04P.

Q: Do both parts meet the same environmental protection standards?

A: PX0413/04P/PC meets IP68/IP69K. PX0412/04P meets IP68. Both are suitable for dust-tight and waterproof applications within their respective ratings.

Q: What is the key difference in termination method?

A: PX0413/04P/PC uses direct solder termination on integrated male pins. PX0412/04P accepts crimp and solder cup contacts, providing flexibility in contact selection and assembly method.

Q: Are both parts RoHS and REACH compliant?

A: Yes. Both PX0413/04P/PC and PX0412/04P are ROHS3 compliant and REACH unaffected.
