PVC6M502C01B00 Equivalent & Substitute Parts

Part Overview

The PVC6M502C01B00 is a 5 kOhms 0.5W through-hole trimmer potentiometer manufactured by Bourns Inc. in the PVC6 series. This component features ceramic resistive material, PC pin termination, and top adjustment with 1.0 turn operation. The part is classified as obsolete, making equivalent substitutes necessary for ongoing production and maintenance applications. Substitute parts maintain the core electrical specifications while offering active product status and improved availability.

Key Parameters

Parameter	Value
Resistance	5 kOhms
Power Rating	0.5W (1/2W)
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	1.0
Adjustment Type	Top Adjustment
Mounting Type	Through Hole
Termination Style	PC Pins
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict equivalence across the following parameters: resistance value (5 kOhms), power rating (0.5W), tolerance (±10%), temperature coefficient (±100ppm/°C), number of turns (1.0), adjustment type (top adjustment), mounting type (through hole), and termination style (PC pins). All substitute parts listed maintain these electrical and mechanical specifications. Variations in resistive material (ceramic to cermet), physical dimensions, and packaging format do not affect functional substitutability within the specified parameter set. Product status and compliance certifications are provided for procurement and regulatory considerations.

Parameter Comparison

Part Number	Manufacturer	Resistance	Power (W)	Tolerance	Temp Coeff	Turns	Adjustment	Mounting	Termination	Resistive Material	Product Status	RoHS Status
PVC6M502C01B00	Bourns Inc.	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Ceramic	Obsolete	ROHS3
3362U-1-502LF	Bourns Inc.	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
25PR5KLF	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	RoHS
72PMR5KLF	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
72PR5KLF	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
72PR5KLFTB	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
82MR5KLF	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3

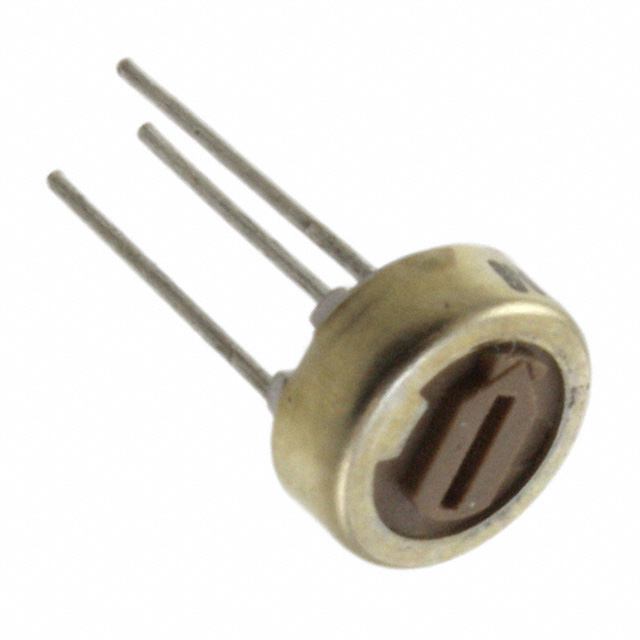

82PR5KLF	TT Electronics/BI	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
CT-6ETV502	Nidec Components Corporation	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
CT-6EV502	Nidec Components Corporation	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3
FT-63ETP502	Nidec Components Corporation	5 kOhms	0.5	±10%	±100ppm/°C	1.0	Top	Through Hole	PC Pins	Cermet	Active	ROHS3

Engineering Selection Recommendations

All listed substitute parts maintain electrical equivalence to the PVC6M502C01B00 across resistance, power rating, tolerance, temperature coefficient, and mechanical specifications. The primary distinction is product status: the original part is obsolete, while all substitutes carry active status, ensuring continued availability and manufacturing support.

For new designs and production continuity, the 3362U-1-502LF from Bourns Inc. is the direct successor within the same manufacturer ecosystem, offering ROHS3 compliance and active product status. For alternative sourcing, the TT Electronics/BI 72 series (72PR5KLF, 72PR5KLFTB, 72PMR5KLF) and 82 series (82PR5KLF, 82MR5KLF) provide equivalent electrical performance with ROHS3 compliance. The Nidec Components Corporation CT-6 series (CT-6ETV502, CT-6EV502) and FT-63 series (FT-63ETP502) offer additional sourcing options with ROHS3 compliance and active product status.

All substitutes are ROHS3 compliant, supporting regulatory requirements for restricted substances. Physical dimensions vary across product lines; PCB layout verification is necessary to confirm mechanical fit within the target application.

Frequently Asked Questions (FAQ)

Q: Can the PVC6M502C01B00 be directly replaced with any of the listed substitutes?

A: Yes. All listed parts maintain identical electrical specifications: 5 kOhms resistance, 0.5W power rating, ±10% tolerance, ±100ppm/°C temperature coefficient, 1.0 turn adjustment, top adjustment type, through-hole mounting, and PC pin termination. Functional substitution is valid across all listed parts.

Q: What is the difference between ceramic and cermet resistive materials in these parts?

A: Both materials meet the specified electrical parameters. Cermet (ceramic-metal composite) is used in the active substitute parts and provides improved stability and reliability characteristics. The original PVC6M502C01B00 uses ceramic material. Both materials satisfy the ±10% tolerance and ±100ppm/°C temperature coefficient requirements.

Q: Are there packaging differences between substitutes?

A: Yes. Packaging formats include Tube, Bulk, and Tape & Box (TB). The original part uses standard packaging. Packaging selection depends on assembly process requirements and inventory management. Electrical and mechanical specifications remain unchanged across packaging formats.

Q: Which substitute offers the closest form factor match?

A: The 3362U-1-502LF from Bourns Inc. provides the closest dimensional compatibility, with a rectangular face of 0.275" x 0.260" (6.99mm x 6.60mm) compared to the original 0.272" x 0.272" (6.90mm x 6.90mm). The CT-6 series from Nidec (CT-6ETV502, CT-6EV502) and FT-63 series (FT-63ETP502) offer square faces of 0.276" x 0.276" (7.00mm x 7.00mm), also providing close dimensional alignment.

Q: Are all substitutes ROHS3 compliant?

A: Yes. All listed substitute parts carry ROHS3 compliance certification, meeting regulatory requirements for restricted substances in electronic components.

Q: What is the inventory status of substitute parts?

A: The 3362U-1-502LF has 855 units in stock. TT Electronics/BI parts range from 621 to 9,327 units depending on series and variant. Nidec parts range from 719 to 1,158 units. Availability should be confirmed with the component supplier for production requirements.
