PV22-10R-C Equivalent & Substitute Parts

Part Overview

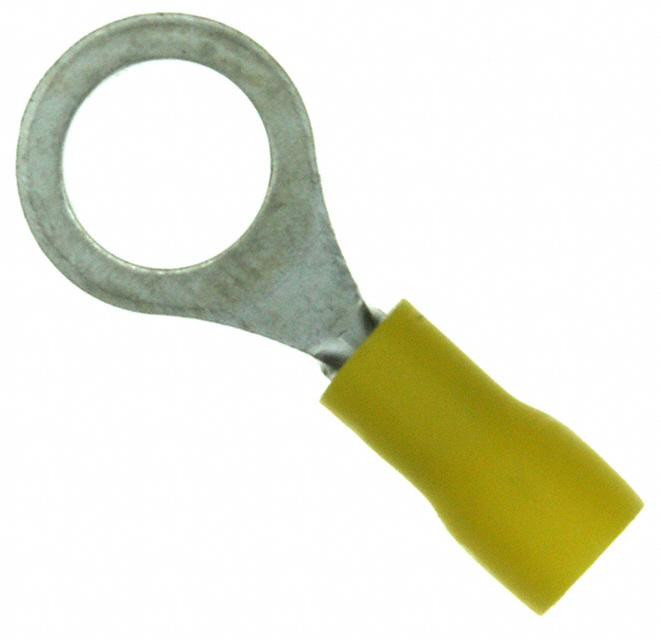

The PV22-10R-C is a ring terminal connector manufactured by Panduit Corp, designed for circular stud applications with 22-26 AWG wire gauge capacity. This insulated crimp terminal features a #10 stud size and is constructed with copper contact material and tin finish. The product is currently classified as obsolete, necessitating identification of active equivalent components for ongoing procurement and system maintenance requirements.

Substiute Parts

PV22-10R-C

Panduit CorpIn Stock: 892PV22-10R-C Datasheet

Current PartRFQ

2-32952-1

TE Connectivity AMP ConnectorsIn Stock: 134312-32952-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

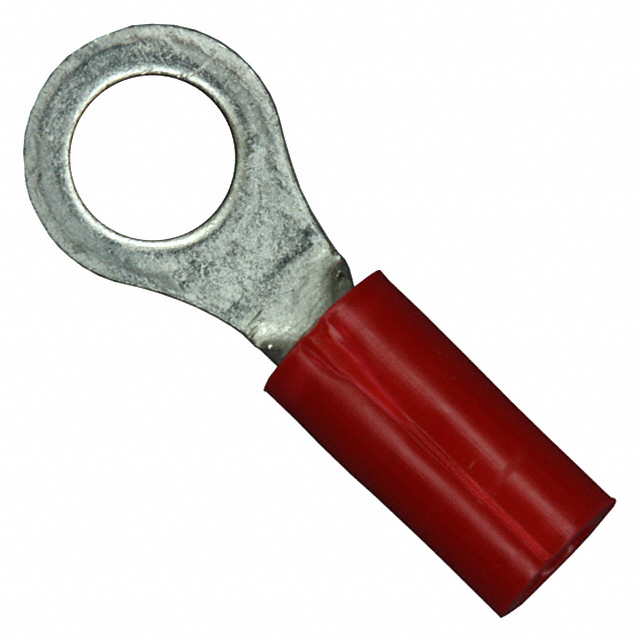

Substitution of the PV22-10R-C is determined by alignment of core electrical and mechanical parameters. The primary substitution candidate, TE Connectivity AMP Connectors part number 2-32952-1, shares the following critical specifications:

• Terminal Type: Circular configuration
• Stud/Tab Size: #10 stud (identical mounting interface)
• Termination Method: Crimp connection
• Insulation: Insulated construction
• Contact Material: Copper with tin finish
• Mounting Type: Free Hanging (In-Line)

The wire gauge specification differs between the main part (22-26 AWG) and the substitute (16-22 AWG). This overlap in the 22 AWG range permits substitution for applications within the common wire gauge window, provided system design accommodates the substitute's broader gauge range.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 2-32952-1 serves as the primary active substitute for the obsolete PV22-10R-C. Selection of this substitute is supported by the following factors:

Product Status: The 2-32952-1 maintains active product status with 13,412 units in current inventory, ensuring ongoing availability for procurement and replacement applications.

Compliance Certification: The substitute part carries RoHS Compliance certification, meeting current regulatory requirements for electronic component manufacturing and distribution.

Mechanical Compatibility: Both components share identical #10 stud size and free-hanging mounting configuration, ensuring direct mechanical interface compatibility with existing system designs.

Electrical Compatibility: Copper contact material with tin finish is maintained across both components, preserving electrical performance characteristics. Wire gauge overlap at 22 AWG permits substitution for applications operating within this common specification range.

Physical Dimensions: Minor variations in thickness (0.020" versus 0.031"), width (0.320" versus 0.312"), and length (0.780" versus 0.856") require verification against specific mounting constraints and clearance requirements in the target application.

Frequently Asked Questions (FAQ)

Q: Can the 2-32952-1 directly replace the PV22-10R-C in all applications?

A: Direct replacement is applicable for applications using 22 AWG wire. The substitute accommodates wire gauges from 16-22 AWG, providing compatibility within the overlapping 22 AWG specification. Applications requiring 23-26 AWG wire must be evaluated against the substitute's maximum rated gauge of 22 AWG.

Q: What are the physical dimension differences between these components?

A: The PV22-10R-C measures 0.780" in overall length with 0.320" outer edge width and 0.020" thickness. The 2-32952-1 measures 0.856" in length, 0.312" in width, and 0.031" in thickness. These dimensional variations must be assessed against available mounting space and clearance requirements in the target assembly.

Q: Are there insulation material differences between the parts?

A: The PV22-10R-C uses vinyl insulation material, while the 2-32952-1 uses polyvinyl chloride (PVC). Both materials provide insulated construction; however, chemical compatibility and environmental exposure conditions should be evaluated for specific applications.

Q: What is the significance of the RoHS Compliance status on the substitute part?

A: RoHS Compliance on the 2-32952-1 indicates conformance to Restriction of Hazardous Substances regulations, meeting current environmental and safety standards for electronic component manufacturing. This certification supports compliance requirements for systems subject to RoHS regulations.

Q: How does packaging affect component selection?

A: The PV22-10R-C packaging specification is not provided in available documentation. The 2-32952-1 is supplied in Cut Tape (CT) packaging format. Packaging format may influence procurement processes, handling procedures, and integration into automated assembly workflows.

Q: What is the inventory status for each component?

A: The PV22-10R-C has 791 units in stock as an obsolete product with no ongoing manufacturing. The 2-32952-1 has 13,412 units in current inventory as an active product, ensuring reliable long-term availability for procurement requirements.
