PV18-P47-E Wire Pin Terminal Connector Equivalent & Substitute Parts

Part Overview

The PV18-P47-E is an insulated wire pin terminal connector manufactured by Panduit Corp, designed for 18-22 AWG wire applications. This component features a crimp termination with a brazed seam construction and tin-plated finish. The part is classified as obsolete, necessitating identification of active equivalent alternatives to maintain supply chain continuity for applications requiring this terminal specification.

Substiute Parts

PV18-P47-E

Panduit CorpIn Stock: 952PV18-P47-E Datasheet

Current PartRFQ

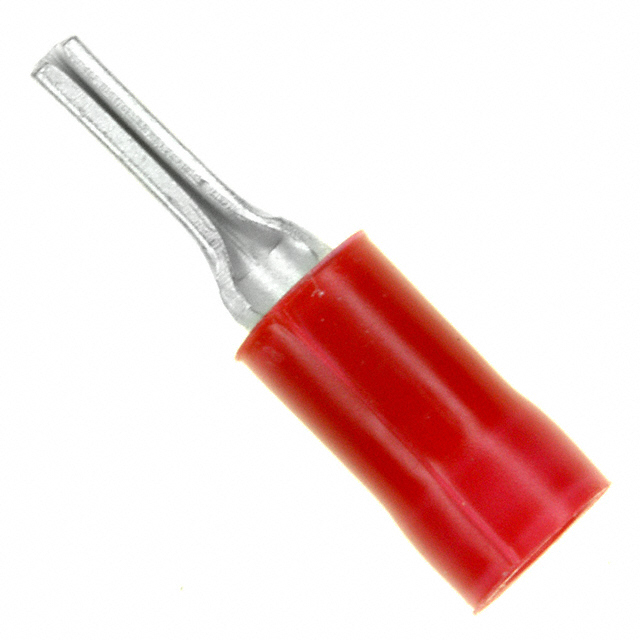

PV18-P47-CY

Panduit CorpIn Stock: 1240PV18-P47-CY Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete PV18-P47-E is determined by strict equivalence across the following critical parameters:

Wire Gauge Compatibility: Both the main part and substitute maintain 18-22 AWG specification, ensuring compatibility with the same conductor sizes.

Termination Method: Crimp termination is consistent across both parts, maintaining identical assembly and connection methodology.

Physical Dimensions: Pin length (0.490"), overall length (0.970"), and insulation diameter (0.150") are identical, ensuring mechanical fit within existing connector housings and assemblies.

Material Specifications: Vinyl insulation material, tin contact finish, and brazed seam construction are maintained across the substitute, preserving electrical and mechanical performance characteristics.

Regulatory Compliance: Both parts maintain ROHS3 compliance, meeting current environmental and hazardous substance restrictions.

The substitute part PV18-P47-CY differs from the main part in product status (active versus obsolete) and packaging configuration, while maintaining full electrical and mechanical equivalence.

Parameter Comparison

Engineering Selection Recommendations

The PV18-P47-CY serves as the direct active equivalent for the obsolete PV18-P47-E. Selection of the substitute is based on the following engineering criteria:

Product Status: The PV18-P47-CY maintains active production status, ensuring continued availability and supply chain reliability compared to the obsolete main part.

Regulatory Compliance: Both parts maintain identical ROHS3 compliance certification, satisfying current environmental and hazardous substance requirements for new designs and replacements.

Electrical and Mechanical Equivalence: All critical parameters determining functional performance—wire gauge, pin dimensions, insulation specifications, and contact finish—are identical between the main part and substitute, enabling direct replacement without circuit or assembly modifications.

Series Designation: The PV18-P47-CY is designated as part of the Pan-Term® series, representing the current production line for this terminal specification.

Frequently Asked Questions (FAQ)

Q: Can PV18-P47-CY directly replace PV18-P47-E in existing assemblies?

A: Yes. The PV18-P47-CY maintains identical electrical and mechanical specifications across all critical parameters: wire gauge (18-22 AWG), pin length (0.490"), overall length (0.970"), insulation diameter (0.150"), termination method (crimp), and contact finish (tin). Direct substitution is supported without assembly or circuit modifications.

Q: What is the primary difference between PV18-P47-E and PV18-P47-CY?

A: The primary difference is product status. PV18-P47-E is obsolete, while PV18-P47-CY is active production. Additionally, PV18-P47-CY is packaged in bulk format and designated as part of the Pan-Term® series. All functional specifications remain equivalent.

Q: Are both parts RoHS compliant?

A: Yes. Both PV18-P47-E and PV18-P47-CY maintain ROHS3 compliance certification, meeting current environmental and hazardous substance restrictions.

Q: What wire sizes are compatible with these terminals?

A: Both terminals accommodate 18-22 AWG wire gauge. The PV18-P47-CY specification additionally notes metric equivalence of 1.5~0.5mm².

Q: What is the contact material for each part?

A: The PV18-P47-E does not specify contact material in the provided data. The PV18-P47-CY specifies copper contact material with tin plating finish. Both maintain tin contact finish specification.

Q: Are there packaging differences between the parts?

A: Yes. The PV18-P47-E packaging is not specified in the provided data. The PV18-P47-CY is supplied in bulk packaging format.

Q: What termination method is used for these terminals?

A: Both terminals utilize crimp termination with brazed seam construction, maintaining identical assembly methodology and connection reliability.
