PV14-8SLF-C Equivalent & Substitute Parts

Part Overview

The PV14-8SLF-C is a blue insulated spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 14-16 AWG wire to an 8 stud. This component is classified as obsolete, indicating that direct procurement from the original manufacturer may be limited or unavailable. Identifying equivalent and substitute parts is necessary to maintain design continuity and ensure uninterrupted supply chain operations for applications requiring this terminal type.

Substiute Parts

PV14-8SLF-C

Panduit CorpIn Stock: 871PV14-8SLF-C Datasheet

Current PartRFQ

PV14-8LF-C

Panduit CorpIn Stock: 3004PV14-8LF-C Datasheet

SimilarRFQ

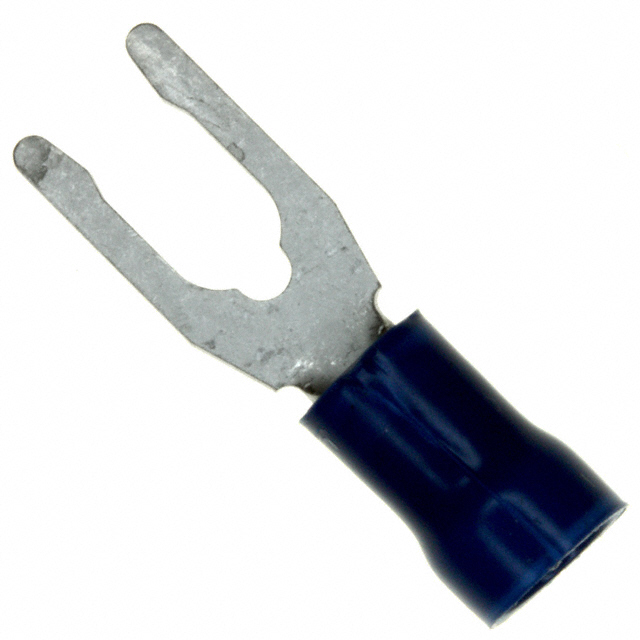

52464-1

TE Connectivity AMP ConnectorsIn Stock: 904352464-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PV14-8SLF-C is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Wire Gauge: 14-16 AWG
• Stud/Tab Size: 8 Stud
• Terminal Type: Spring, Snap
• Termination Method: Crimp
• Insulation: Insulated
• Color: Blue
• Mounting Type: Free Hanging (In-Line)

Allowable Variations:

• Contact Material: Copper or Phosphor Bronze
• Contact Finish: Tin (consistent across all parts)
• Overall Length: Variations within mechanical envelope constraints
• Width - Outer Edges: Minor dimensional tolerance
• Insulation Diameter: Within functional range for 14-16 AWG wire
• Insulation Material: Vinyl or Poly-Vinyl Chloride (PVC)
• Features: Additional features such as Brazed Seam are acceptable enhancements

The substitute parts PV14-8LF-C and 52464-1 satisfy all mandatory matching parameters and are therefore functionally equivalent for applications requiring the PV14-8SLF-C.

Parameter Comparison

Engineering Selection Recommendations

PV14-8LF-C (Panduit Corp)

The PV14-8LF-C is the primary substitute for the obsolete PV14-8SLF-C. Both parts are manufactured by Panduit Corp within the Pan-Term® series and share identical core specifications for wire gauge, stud size, and termination method. The PV14-8LF-C holds Active product status, ensuring continued availability and supply chain reliability. This part includes an additional Brazed Seam feature, which enhances mechanical durability. The PV14-8LF-C is ROHS3 Compliant and REACH Unaffected, meeting current regulatory requirements. Inventory availability is substantially higher at 2909 pieces, supporting production requirements.

52464-1 (TE Connectivity AMP Connectors)

The 52464-1 is a cross-manufacturer substitute from TE Connectivity AMP Connectors, part of the Plasti-Grip series. This terminal meets all mandatory functional parameters and maintains Active product status. The contact material differs from the original (Phosphor Bronze instead of Copper), which is an allowable variation for this application category. The 52464-1 is ROHS3 Compliant and offers the highest inventory availability at 9000 pieces. The insulation diameter range (0.118" ~ 0.193") accommodates the original specification. Packaging is provided in Cut Tape format, suitable for automated assembly operations.

Selection Criteria:

For applications requiring direct Panduit compatibility and feature enhancement, select PV14-8LF-C. For applications prioritizing maximum inventory availability and cross-manufacturer flexibility, select 52464-1. Both parts satisfy functional equivalence and regulatory compliance requirements.

Frequently Asked Questions (FAQ)

Q: Can the PV14-8LF-C directly replace the PV14-8SLF-C in existing designs?

A: Yes. The PV14-8LF-C matches all mandatory functional parameters: 14-16 AWG wire gauge, 8 stud size, spring snap terminal type, crimp termination, insulated blue construction, and free hanging mounting. The increased overall length (0.970" versus 0.850") must be verified against mechanical envelope constraints in the specific application.

Q: What is the difference between the Panduit and TE Connectivity options?

A: Both parts satisfy functional equivalence for the 14-16 AWG, 8 stud spade terminal application. The primary differences are manufacturer (Panduit versus TE Connectivity), contact material (Copper versus Phosphor Bronze), and packaging format (Bulk versus Cut Tape). The TE Connectivity 52464-1 offers broader insulation diameter tolerance and higher inventory availability.

Q: Are there mechanical compatibility concerns with the longer overall length of the substitute parts?

A: The PV14-8LF-C measures 0.970" overall length compared to 0.850" for the original, and the 52464-1 measures 0.991". These dimensional increases must be evaluated against the mechanical envelope of the application, including stud spacing, connector housing, and assembly clearances. Verify that the longer terminal does not interfere with adjacent components or connector geometry.

Q: Do the substitute parts meet the same regulatory requirements as the original?

A: The PV14-8LF-C and 52464-1 are both ROHS3 Compliant, exceeding the regulatory status of the obsolete original part. Both parts carry ECCN EAR99 and HTSUS 8536.90.4000 classifications consistent with the original. The PV14-8LF-C is REACH Unaffected; the 52464-1 shows Vendor Undefined REACH status, requiring verification with the supplier for specific applications in REACH-regulated regions.

Q: What is the significance of the Brazed Seam feature on the PV14-8LF-C?

A: The Brazed Seam is an additional manufacturing feature that enhances the mechanical integrity of the terminal connection. This feature is not present on the original PV14-8SLF-C but represents an improvement in the substitute part. It does not affect functional compatibility but may provide increased durability in vibration-prone or high-stress applications.

Q: How do the insulation diameter specifications compare?

A: The original PV14-8SLF-C specifies 0.175" (4.45mm) insulation diameter. The PV14-8LF-C specifies 0.170" (4.32mm), a minor reduction within acceptable tolerance for 14-16 AWG wire. The 52464-1 provides a broader range of 0.118" ~ 0.193" (3.00mm ~ 4.90mm), accommodating multiple wire gauges and insulation thicknesses. All three parts are compatible with standard 14-16 AWG wire insulation.

Q: What packaging options are available for production planning?

A: The PV14-8LF-C is supplied in Bulk packaging, suitable for high-volume manual or semi-automated assembly. The 52464-1 is supplied in Cut Tape (CT) format, optimized for automated pick-and-place equipment and tape-fed assembly systems. Select packaging based on production equipment and assembly methodology.

Q: Is the Phosphor Bronze contact material of the 52464-1 equivalent to the Copper contact of the original?

A: Phosphor Bronze is an allowable contact material variation for spade terminal applications in this category. Both materials provide adequate electrical conductivity and tin plating ensures corrosion resistance. The contact material difference does not affect functional compatibility for standard electrical connection applications. Verify material compatibility for specialized applications involving specific chemical environments or extreme temperature ranges.
