PV14-6SLF-C Equivalent & Substitute Parts

Part Overview

The PV14-6SLF-C is a blue insulated spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 14-16 AWG wire to a 6 stud configuration. This component is classified as obsolete, necessitating identification of active equivalent parts for ongoing procurement and system maintenance. The terminal features a spring snap mounting type with tin-plated copper contacts and vinyl insulation, suitable for free-hanging in-line applications.

Substiute Parts

PV14-6SLF-C

Panduit CorpIn Stock: 1096PV14-6SLF-C Datasheet

Current PartRFQ

PV14-6LF-C

Panduit CorpIn Stock: 1201PV14-6LF-C Datasheet

SimilarRFQ

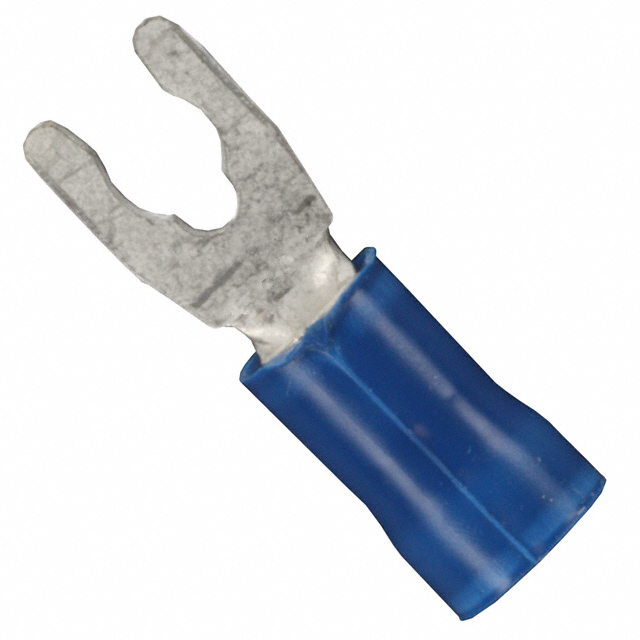

52955-1

TE Connectivity AMP ConnectorsIn Stock: 3987352955-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PV14-6SLF-C is determined by strict alignment of the following critical parameters:

Primary Compatibility Criteria:

• Wire gauge range: 14-16 AWG
• Stud size: 6 stud configuration
• Terminal type: Spring, snap mechanism
• Termination method: Crimp
• Insulation status: Insulated
• Color: Blue
• Mounting configuration: Free hanging in-line
• Tongue inside opening: 0.140" (3.56mm)

Both identified substitute parts satisfy these core electrical and mechanical parameters, enabling direct functional replacement in applications originally specified for the PV14-6SLF-C. Variations in overall length, insulation diameter, contact material composition, and manufacturing features do not preclude substitution when the primary criteria are met.

Parameter Comparison

Engineering Selection Recommendations

PV14-6LF-C (Panduit Corp): This substitute is the primary equivalent for the obsolete PV14-6SLF-C. Both components share identical manufacturer lineage within the Pan-Term® series. The PV14-6LF-C maintains active product status and carries ROHS3 compliance certification. The component differs from the original in overall length (0.900" versus 0.800") and includes a brazed seam feature in addition to serrated termination. The insulation diameter is marginally reduced (0.170" versus 0.175"), remaining within acceptable tolerance for the specified wire gauge. This part is suitable for direct replacement in applications where the original PV14-6SLF-C was specified.

52955-1 (TE Connectivity AMP Connectors): This substitute provides cross-manufacturer compatibility through the Plasti-Grip series. The 52955-1 maintains active product status and ROHS3 compliance. The contact material differs from the original (brass versus copper), and the insulation diameter range is broader (0.118" to 0.193"). Overall length is 0.811", closely approximating the original 0.800" dimension. This part is suitable for applications requiring multi-source procurement flexibility or where TE Connectivity components are preferred within system specifications.

Both substitutes satisfy the critical electrical and mechanical parameters required for functional equivalence. Selection between them depends on supply chain requirements, manufacturer preference, and specific application constraints not addressed by the provided parameters.

Frequently Asked Questions (FAQ)

Q: Can the PV14-6LF-C directly replace the obsolete PV14-6SLF-C?

A: Yes. Both components share identical wire gauge (14-16 AWG), stud size (6), terminal type (spring snap), termination method (crimp), insulation status, color, mounting configuration, and tongue opening dimension (0.140"). The PV14-6LF-C is an active product within the same manufacturer series and is the primary equivalent.

Q: What is the significance of the length difference between PV14-6SLF-C (0.800") and PV14-6LF-C (0.900")?

A: The 0.100" length increase does not affect functional compatibility for crimp termination or stud engagement. This dimensional variation reflects manufacturing evolution within the product line and does not preclude substitution in standard applications.

Q: Can the TE Connectivity 52955-1 be used interchangeably with the Panduit PV14-6SLF-C?

A: Yes. The 52955-1 meets all primary compatibility criteria: 14-16 AWG wire gauge, 6 stud configuration, spring snap terminal type, crimp termination, insulated construction, blue color, free-hanging mounting, and 0.140" tongue opening. The brass contact material and broader insulation diameter range do not prevent functional substitution.

Q: What is the difference between the contact materials in these parts?

A: The PV14-6SLF-C and PV14-6LF-C use copper contacts, while the 52955-1 uses brass contacts. Both materials are tin-plated and suitable for electrical connectivity in the specified wire gauge range. Material selection does not affect substitution eligibility for standard applications.

Q: Are there packaging differences between these substitutes?

A: Yes. The PV14-6LF-C is supplied in bulk packaging, while the 52955-1 is supplied in cut tape (CT) format. Packaging differences do not affect component functionality and reflect different procurement and assembly workflows.

Q: Do all three parts meet current regulatory compliance standards?

A: The PV14-6SLF-C is marked as not applicable for RoHS status due to its obsolete classification. Both active substitutes (PV14-6LF-C and 52955-1) carry ROHS3 compliance certification, meeting current regulatory requirements for new procurement.

Q: What is the insulation diameter tolerance range for the 52955-1?

A: The 52955-1 specifies an insulation diameter range of 0.118" to 0.193" (3.00mm to 4.90mm), accommodating the 14-16 AWG wire gauge specification. This broader range compared to the fixed dimensions of the Panduit parts reflects the TE Connectivity design approach and does not affect substitution compatibility.
