PV10-38R-L Equivalent & Substitute Parts

Part Overview

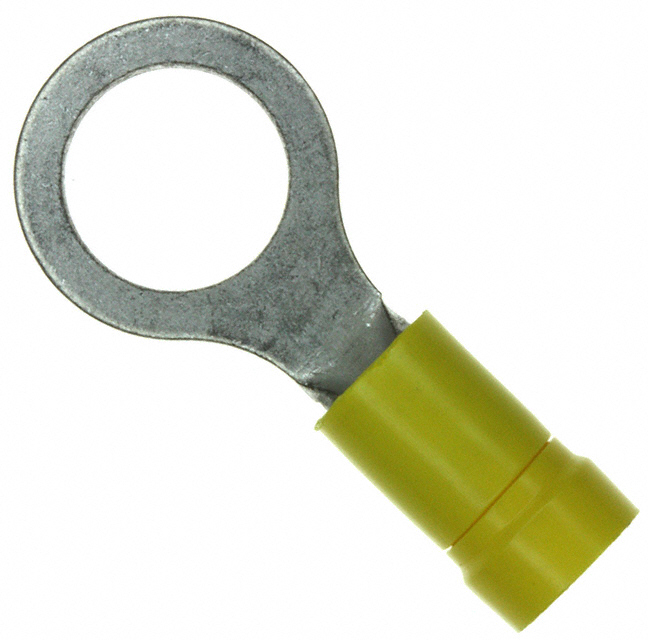

The PV10-38R-L is an insulated ring terminal connector manufactured by Panduit Corp, designed for 10-12 AWG wire gauges with a 3/8 inch stud connection. This circular terminal features a brazed seam construction and tin-plated copper contact material with yellow vinyl insulation. The part is classified as Active product status and is ROHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical specifications are required due to inventory constraints, application requirements, or supply chain considerations.

Substiute Parts

PV10-38R-L

Panduit CorpIn Stock: 1074PV10-38R-L Datasheet

Current PartRFQ

PV10-38R-D

Panduit CorpIn Stock: 8727PV10-38R-D Datasheet

DirectRFQ

2-34173-1

TE Connectivity AMP ConnectorsIn Stock: 44722-34173-1 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PV10-38R-L are classified based on strict electrical and mechanical parameter alignment. The primary substitution criteria are:

Direct Substitutes maintain identical specifications across all critical parameters: terminal type (circular), wire gauge (10-12 AWG), stud size (3/8), termination method (crimp), contact material (copper), contact finish (tin), and mounting configuration (free hanging in-line). These parts are interchangeable without design modification.

Similar Substitutes share the same core electrical specifications (wire gauge, stud size, termination method, contact material and finish) and mounting type but may exhibit variations in dimensional tolerances, insulation material composition, or construction features. These parts function equivalently in the specified application but require verification of dimensional fit within the assembly.

The following parameters determine substitution eligibility:

• Wire Gauge: 10-12 AWG (mandatory match)
• Stud/Tab Size: 3/8 Stud (mandatory match)
• Termination: Crimp (mandatory match)
• Contact Material: Copper (mandatory match)
• Contact Finish: Tin (mandatory match)
• Terminal Type: Circular (mandatory match)
• Mounting Type: Free Hanging (In-Line) (mandatory match)

Parameter Comparison

Engineering Selection Recommendations

PV10-38R-D (Direct Substitute)

The PV10-38R-D is a direct substitute for the PV10-38R-L. Both parts are manufactured by Panduit Corp within the Pan-Term® series and maintain identical electrical and mechanical specifications. All critical parameters including wire gauge, stud size, termination method, contact material, contact finish, and dimensional characteristics are equivalent. Both parts are ROHS3 compliant and carry Active product status. The PV10-38R-D is available in higher inventory quantity (8687 pcs) compared to the main part (1002 pcs). This substitute provides full functional equivalence with no design modification required.

2-34173-1 (Similar Substitute)

The 2-34173-1 manufactured by TE Connectivity AMP Connectors is a similar substitute that shares all mandatory electrical specifications with the PV10-38R-L. Wire gauge (10-12 AWG), stud size (3/8), termination method (crimp), contact material (copper), and contact finish (tin) are identical. The part is ROHS3 compliant and carries Active product status. Dimensional variations exist: the outer width is 0.593" (15.06mm) versus 0.580" (14.73mm), and overall length is 1.421" (36.09mm) versus 1.310" (33.27mm). The insulation diameter range is 0.150" to 0.250" (3.81mm to 6.35mm) compared to the fixed 0.225" (5.72mm) specification. The insulation material is PVC rather than vinyl, and the construction features serrated termination instead of brazed seam. This substitute is functionally equivalent for the specified wire gauge and stud connection but requires dimensional verification within the assembly envelope.

Frequently Asked Questions (FAQ)

Q: Can PV10-38R-D be used as a direct replacement for PV10-38R-L?

A: Yes. The PV10-38R-D is a direct substitute with identical electrical and mechanical specifications. All critical parameters including wire gauge, stud size, termination method, contact material, contact finish, and dimensions are equivalent. No design modification is required.

Q: What are the key differences between PV10-38R-L and 2-34173-1?

A: Both parts share identical wire gauge (10-12 AWG), stud size (3/8), termination method (crimp), contact material (copper), and contact finish (tin). Differences include: manufacturer (Panduit vs. TE Connectivity), overall length (1.310" vs. 1.421"), outer width (0.580" vs. 0.593"), insulation material (vinyl vs. PVC), and construction feature (brazed seam vs. serrated termination). The insulation diameter specification is fixed at 0.225" for PV10-38R-L but ranges from 0.150" to 0.250" for 2-34173-1.

Q: Is the 2-34173-1 suitable for applications requiring the PV10-38R-L?

A: The 2-34173-1 is functionally equivalent for wire termination and stud connection. However, dimensional differences in length and width must be verified against assembly space constraints. The broader insulation diameter tolerance range of 2-34173-1 accommodates the PV10-38R-L specification within its range.

Q: What is the difference between packaging options for these parts?

A: PV10-38R-L and PV10-38R-D are supplied in Bulk packaging. The 2-34173-1 is supplied in Cut Tape (CT) packaging. Packaging format does not affect electrical or mechanical compatibility but may influence handling, storage, and installation procedures.

Q: Are all three parts ROHS3 compliant?

A: Yes. PV10-38R-L, PV10-38R-D, and 2-34173-1 are all ROHS3 compliant. All parts carry EAR99 ECCN classification and 8536.90.4000 HTSUS code.

Q: What is the significance of the brazed seam versus serrated termination features?

A: Brazed seam (PV10-38R-L and PV10-38R-D) and serrated termination (2-34173-1) are different construction methods for the crimp connection. Both methods provide secure wire termination for 10-12 AWG conductors. The choice between these features depends on application-specific requirements and assembly compatibility.

Q: Can these parts be used interchangeably in the same assembly?

A: PV10-38R-L and PV10-38R-D are fully interchangeable. The 2-34173-1 is functionally equivalent but requires dimensional verification due to length and width variations before confirming interchangeability in a specific assembly.
