PV10-14F-E Equivalent & Substitute Parts

Part Overview

The PV10-14F-E is a yellow insulated spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 10-12 AWG wire to a 1/4 inch stud. This component is classified as obsolete, indicating it is no longer in active production. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing maintenance and repair operations for systems utilizing this terminal connector.

Substiute Parts

PV10-14F-E

Panduit CorpIn Stock: 1221PV10-14F-E Datasheet

Current PartRFQ

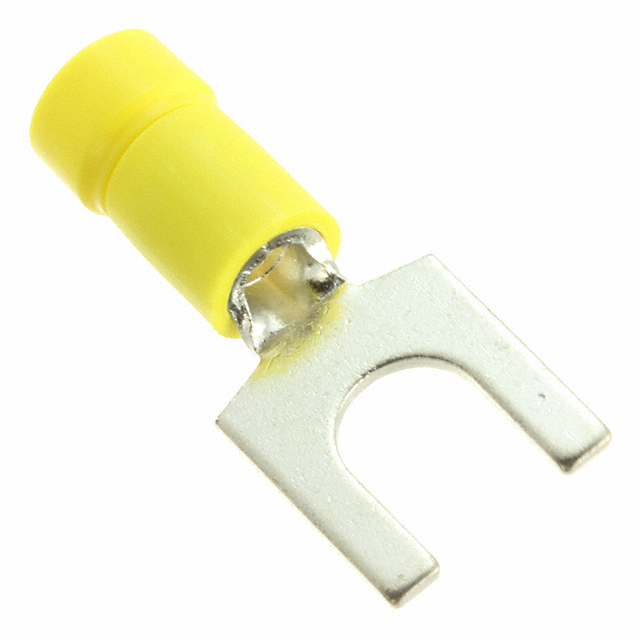

PV10-14F-L

Panduit CorpIn Stock: 766PV10-14F-L Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PV10-14F-E is determined by strict equivalence across the following critical parameters:

• Wire Gauge Compatibility: 10-12 AWG termination capacity
• Stud/Tab Size: 1/4 inch stud connection point
• Termination Method: Crimp-type connection
• Insulation Specification: Insulated vinyl material
• Contact Material and Finish: Copper with tin plating
• Mechanical Dimensions: Outer width (0.490"), overall length (1.140"), and tongue opening (0.260")
• Regulatory Compliance: ROHS3 compliance requirement

The substitute part PV10-14F-L meets all these parameters identically, establishing it as a direct functional equivalent. The primary distinction between these parts is product status: PV10-14F-E is obsolete while PV10-14F-L is active in production.

Parameter Comparison

Engineering Selection Recommendations

The PV10-14F-L is the direct substitute for the obsolete PV10-14F-E. Both parts are manufactured by Panduit Corp and share identical electrical and mechanical specifications across all critical parameters. The PV10-14F-L maintains full ROHS3 compliance and is currently in active production status, ensuring ongoing availability and supply chain continuity.

Selection of PV10-14F-L over the obsolete PV10-14F-E is supported by:

• Regulatory Compliance: Both parts maintain ROHS3 compliance
• Production Status: PV10-14F-L is active in production, eliminating obsolescence risk
• Functional Equivalence: Complete parameter alignment ensures direct interchangeability
• Inventory Availability: PV10-14F-L maintains active stock levels

No technical modifications, design changes, or additional validation are required when transitioning from PV10-14F-E to PV10-14F-L.

Frequently Asked Questions (FAQ)

Q: Can PV10-14F-L be used as a direct replacement for PV10-14F-E?

A: Yes. The PV10-14F-L is a direct functional equivalent. All electrical and mechanical parameters are identical, including wire gauge capacity (10-12 AWG), stud size (1/4 inch), termination method (crimp), insulation type (vinyl), and physical dimensions. No design modifications are required.

Q: What is the primary difference between PV10-14F-E and PV10-14F-L?

A: The primary difference is product status. PV10-14F-E is obsolete and no longer manufactured. PV10-14F-L is the active production equivalent from Panduit Corp, ensuring continued availability and supply chain support.

Q: Are both parts ROHS3 compliant?

A: Yes. Both PV10-14F-E and PV10-14F-L are ROHS3 compliant, meeting current regulatory requirements for electronic component manufacturing.

Q: What wire gauges are compatible with these terminals?

A: Both terminals are rated for 10-12 AWG wire termination. This specification applies to both the main part and the substitute.

Q: What is the stud size for these spade terminals?

A: Both terminals feature a 1/4 inch stud connection point, establishing compatibility with standard 1/4 inch stud applications.

Q: Are these terminals insulated or uninsulated?

A: Both terminals are insulated with yellow vinyl insulation material. The insulation diameter is 0.225 inches (5.72mm).

Q: What is the contact material and finish?

A: Both terminals use copper contact material with tin plating finish, providing reliable electrical conductivity and corrosion resistance.

Q: Can these terminals be used in applications requiring brazed seam construction?

A: Yes. Both PV10-14F-E and PV10-14F-L feature brazed seam construction as a standard characteristic.

Q: What are the physical dimensions of these terminals?

A: Overall length is 1.140 inches (28.96mm), outer width is 0.490 inches (12.45mm), and the tongue inside opening is 0.260 inches (6.60mm). These dimensions are identical for both parts.

Q: Is inventory availability a consideration when selecting between these parts?

A: Yes. PV10-14F-L maintains active inventory status with current stock availability. PV10-14F-E, being obsolete, has limited remaining inventory and should not be specified for new designs or long-term applications.
