Equivalent & Substitute Parts Reference: PTH05030WAS

Part Overview

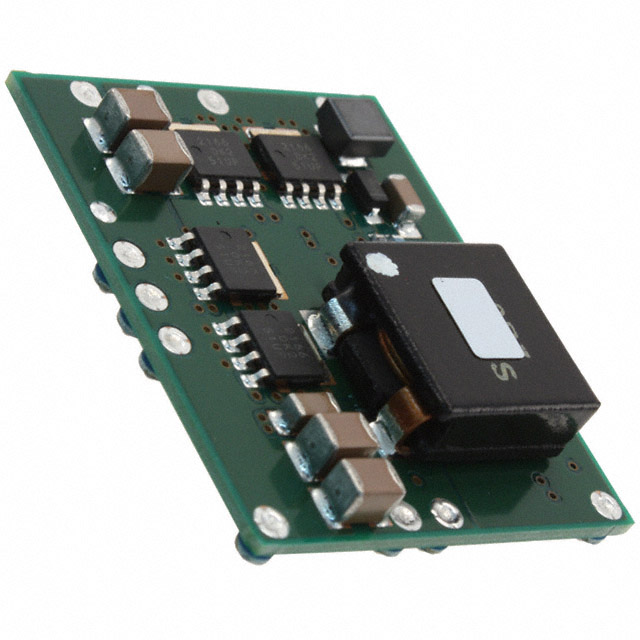

The PTH05030WAS is a non-isolated point-of-load (PoL) DC-DC converter module designed for ITE (Commercial) applications. It offers an adjustable output voltage range of 0.8 to 3.6V, a maximum output current of 30A, and a power rating of 108W. The module supports features including Remote On/Off, Over Temperature Protection (OTP), and Under Voltage Lockout (UVLO). The product status is listed as "Obsolete," making it critical to identify equivalent or substitute models for ongoing or new designs that require comparable electrical and mechanical parameters.

Substiute Parts

PTH05030WAS

ARTESYN / Advanced EnergyIn Stock: 1281PTH05030WAS Datasheet

Current PartRFQ

PTH05030WAS

Texas InstrumentsIn Stock: 1332PTH05030WAS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts are determined using strict matching on the following key parameters:

• Type: Non-Isolated PoL Module
• Number of Outputs: 1
• Voltage Input Range: 4.5V to 5.5V
• Voltage Output Range: 0.8V to 3.6V
• Maximum Output Current: 30A
• Application: ITE (Commercial)
• Package / Case: 13-SMD Module
• Features: Remote On/Off, OTP, UVLO, and SCP or OCP
• Operating Temperature: -40°C to 85°C
• Efficiency: 94%
• Size and Mounting: Comparable physical dimensions; Surface Mount

Only those substitute parts which fully comply with these defined electrical, mechanical, and feature parameters are included.

Parameter Comparison

Engineering Selection Recommendations

The main part (PTH05030WAS by ARTESYN / Advanced Energy) is classified as obsolete. The equivalent part (PTH05030WAS by Texas Instruments) has matching electrical and mechanical parameters and shares the same product status (obsolete) along with relevant compliance status indicated by RoHS3 and REACH unaffected. Both parts fulfill the listed ECCN and HTSUS requirements. Selection should be based on available compliance, product status, and matching form factor without introducing additional selection criteria.

Frequently Asked Questions (FAQ)

Q: What defines an equivalent or substitute part for PTH05030WAS?
A: Substitution is based on strict parameter matching, including type, input/output voltages, maximum current, temperature range, package, mounting type, efficiency, features, and physical dimensions.

Q: Are differences in manufacturer between ARTESYN / Advanced Energy and Texas Instruments relevant for electrical compatibility?
A: Only parameters explicitly provided are considered. Both versions are functionally equivalent for defined parameters.

Q: How does package moisture sensitivity level (MSL) affect substitution?
A: The main part lists MSL 1 (Unlimited), while the substitute lists MSL 3 (168 Hours). MSL affects handling and solderability but does not impact electrical substitution within specified criteria.

Q: Are there any differences in compliance or status to consider?
A: Both parts are obsolete. The Texas Instruments version lists RoHS3 and REACH status. Both share EAR99 and HTSUS classifications.

Q: Is there any difference in physical dimension that affects substitution?
A: Dimensions are comparable and are within accepted variance for the category, maintaining compatibility for surface mount applications.

Q: Can substitute parts with slightly different feature sets be used?
A: Only substitutes matching on all required features (Remote On/Off, OTP, UVLO, SCP or OCP) are included, per the provided parameters.
