Equivalent & Substitute Parts Reference: PTH05010WAS

Part Overview

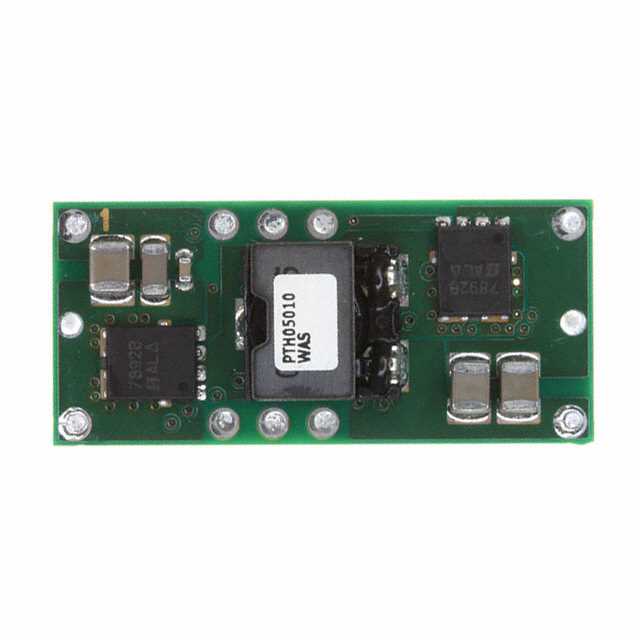

The PTH05010WAS is a non-isolated Point-of-Load (PoL) DC-DC converter module. It offers a single output voltage range from 0.8V to 3.6V, with a maximum output current of 15A, powered by a 4.5V to 5.5V input. The product belongs to the PTH05010W series, delivers up to 54W output power, and includes features such as Remote On/Off, Over-Temperature Protection (OTP), Short Circuit Protection (SCP), and Under Voltage Lock Out (UVLO). The operating temperature range for this module is -40°C to 85°C, with a surface mount 10-SMD module package.

This part is classified as obsolete. When a product reaches obsolete status, sourcing suitable substitute models based on permitted electrical and mechanical parameters becomes necessary to support legacy designs, ongoing production, or maintenance requirements.

Substiute Parts

PTH05010WAS

ARTESYN / Advanced EnergyIn Stock: 1138PTH05010WAS Datasheet

Current PartRFQ

PTH05010WAS

Texas InstrumentsIn Stock: 1197PTH05010WAS Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for PTH05010WAS are grouped based exclusively on electrical and mechanical parameters within the permissible product category. Key parameters for substitution include input voltage range, output voltage range, maximum output current, output power, number of outputs, protection and control features, operating temperature range, mounting type, and physical package details. No parameters beyond those explicitly supplied are considered.

Parameter Comparison

Engineering Selection Recommendations

Selection of substitute DC-DC converter modules must be based on product lifecycle status, compliance certifications, and environmental considerations as documented. The original ARTESYN / Advanced Energy PTH05010WAS is obsolete. The functionally identical PTH05010WAS from Texas Instruments is listed as active, RoHS3 compliant, and REACH unaffected, with an MSL of 3 (168 Hours). All environmental, compliance, and certification parameters provided align with industry requirements for this product category.

Frequently Asked Questions (FAQ)

Q1: What are the key criteria for selecting a substitute for the PTH05010WAS DC-DC converter module?
A1: Substitution must be based on matching or exceeding input voltage range, output voltage range, maximum output current, protection and control features, efficiency, package type, mounting method, and operating temperature range.

Q2: Is the Texas Instruments PTH05010WAS interchangeable with the ARTESYN / Advanced Energy PTH05010WAS?
A2: The Texas Instruments PTH05010WAS matches all critical electrical and mechanical parameters provided, including input/output specifications, current rating, protective features, efficiency, operating temperature, and package dimensions, qualifying it as a direct substitute.

Q3: Does the substitute meet environmental and compliance requirements?
A3: The substitute PTH05010WAS from Texas Instruments is RoHS3 compliant and REACH unaffected. Moisture Sensitivity Level is MSL 3 (168 Hours).

Q4: Are there differences in package dimensions to consider?
A4: Both parts use the 10-SMD module package with comparable dimensions: the ARTESYN part is 1.37" L x 0.62" W x 0.35" H, and the Texas Instruments part is 1.37" L x 0.62" W x 0.38" H.

Q5: What is the status of the original and substitute parts in the supply chain?
A5: The ARTESYN / Advanced Energy PTH05010WAS is obsolete. The Texas Instruments PTH05010WAS is active and available for procurement according to inventory reports.
