Equivalent & Substitute Parts for PTH04T261WAZ

Part Overview

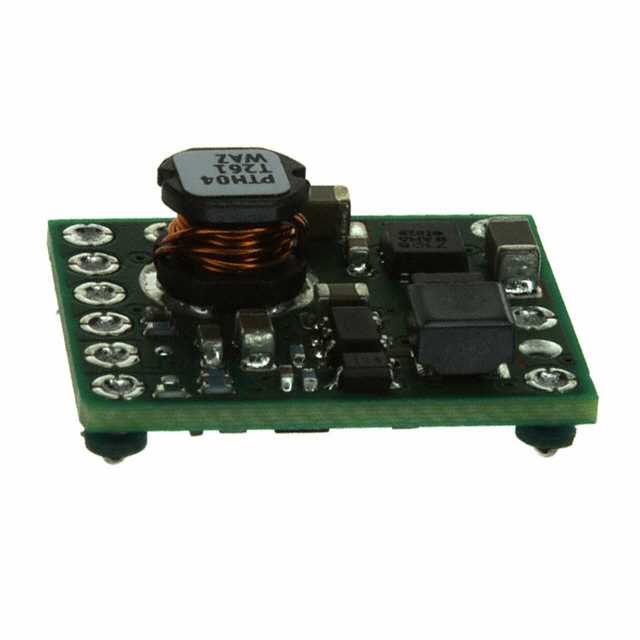

The Texas Instruments PTH04T261WAZ is a Non-Isolated PoL Module DC-DC Converter, offering a single output adjustable from 0.69V to 3.6V at up to 3A, with an input voltage range of 2.2V to 5.5V. Feature highlights include Remote On/Off, OCP, OTP, and UVLO, in a 10-SMD surface-mount package. This part is categorized as obsolete, and finding alternative models is necessary to maintain compatible functionality in existing designs and ongoing production.

Substiute Parts

PTH04T261WAZ

Texas InstrumentsIn Stock: 805PTH04T261WAZ Datasheet

Current PartRFQ

TPSM82866AA0HRDMR

Texas InstrumentsIn Stock: 6362TPSM82866AA0HRDMR Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute selection for Non-Isolated PoL Module DC-DC converters is strictly based on the following allowed parameters:

• Module type and number of outputs
• Input voltage range compatibility
• Output voltage(s)
• Output current capability
• Operating temperature range
• Mounting type
• RoHS, MSL, REACH, and ECCN compliance

Only substitute parts matching or exceeding these specifications are included. All substitute relationships are strictly determined by these key parameters.

Parameter Comparison

Engineering Selection Recommendations

PTH04T261WAZ is listed as obsolete. Substitute selection should reference active alternatives that are ROHS3 compliant and MSL 3 rated, with an EAR99 ECCN and REACH unaffected status. TPSM82866AA0HRDMR matches these criteria and is listed as active, providing equivalent module function, number of outputs, and comparable mounting and compliance.

Frequently Asked Questions (FAQ)

Q: What are the essential substitution criteria for the PTH04T261WAZ DC-DC Converter?
A: Substitute selection is made based on module type, number of outputs, compatible input/output voltage and current ratings, operating temperature, mounting type, and regulatory compliance.

Q: Can I use TPSM82866AA0HRDMR as a direct replacement for PTH04T261WAZ in the same footprint?
A: Both parts are surface mount modules; however, their package sizes and pinouts are not provided for direct comparison within these parameters.

Q: Are voltage and current parameters sufficient for compatibility?
A: Substitution requires matching ranges of input and output voltage, current capability, and module type. Provided parameters indicate TPSM82866AA0HRDMR meets or exceeds these requirements.

Q: Are both parts compliant with ROHS3 and REACH regulations?
A: Yes, both PTH04T261WAZ and TPSM82866AA0HRDMR are ROHS3 compliant and REACH unaffected per supplied data.

Q: Is there any difference in operating temperature range?
A: TPSM82866AA0HRDMR supports a broader operating temperature range (-40°C ~ 125°C) compared to PTH04T261WAZ (-40°C ~ 85°C).

Q: Do both devices have similar moisture sensitivity levels?
A: Both modules are rated as Moisture Sensitivity Level 3 (168 hours) based on the provided specifications.

Q: What should be considered regarding regulatory and trade compliance?
A: Both parts carry EAR99 ECCN and the same HTSUS code, aligning with common export and trade classification requirements.

Q: Are all features matched between the main part and sub?
A: TPSM82866AA0HRDMR provides adjustable output and remote on/off; other feature comparisons such as OCP, OTP, and UVLO are disclosed only where specified.
