Equivalent & Substitute Parts Reference: PTB48520WAS
Part Overview

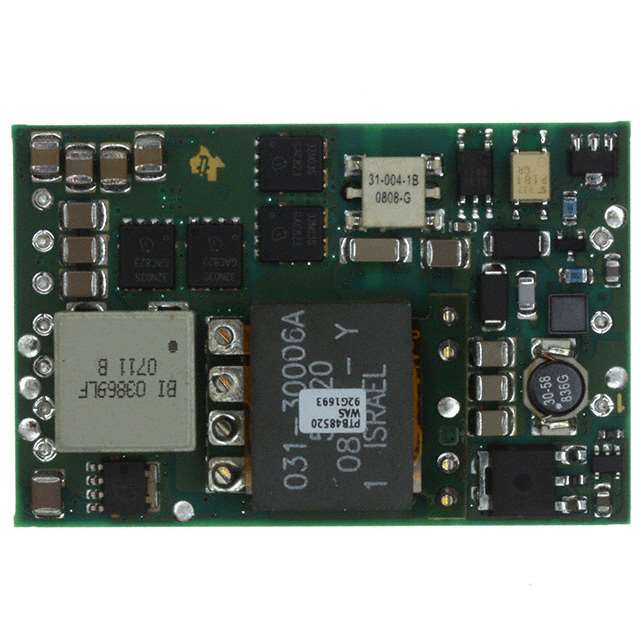

Texas Instruments PTB48520WAS is an isolated DC DC converter module from the PTB48520W series, designed to convert 36V–75V input into a 1.8V–3.6V output at up to 25A, with a maximum power rating of 90W. It is surface mounted in a 10-SMD module package for ITE (Commercial) applications and features an isolation voltage of 1.5 kV, operating across a -40°C to 85°C temperature range with 91% efficiency. This product is listed as "Not For New Designs," requiring engineers to consider alternative compatible modules for new designs or replacement in current systems.
Substiute Parts
Key Parameters
| Parameter | PTB48520WAS |
|---|---|
| Manufacturer | Texas Instruments |
| Category | |
| Series | PTB48520W |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 1.8 ~ 3.6V |
| Current - Output (Max) | 25A |
| Power (Watts) | 90 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 91% |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module |
| Size / Dimension | 2.22" x 1.45" x 0.50" |
| RoHS Status | ROHS3 Compliant |
| MSL | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| Inventory | 963 Pcs |
| Product Status | Not For New Designs |
Substitute Part Grouping Explanation
The substitute part list is determined strictly by matching the main device's parameters as per allowed ranges for DC DC converter modules within the same category. The critical criteria are:
- Number of outputs
- Input voltage range
- Output voltage range
- Maximum output current
- Power rating
- Module type (Isolated vs. Non-Isolated)
- Application suitability
- Mounting type and package
- Operating temperature range
- Environmental and compliance certifications
The alternative ATS030A0X3-SRHZ is included as a substitute based on these criteria.
Parameter Comparison
| Parameter | PTB48520WAS | ATS030A0X3-SRHZ |
|---|---|---|
| Manufacturer | Texas Instruments | OmniOn Power |
| Description | DC DC CONVERTER 1.8-3.6V 90W | DC DC CONVERTER 0.8-2.75V 80W |
| Type | Isolated Module | Non-Isolated PoL Module |
| Number of Outputs | 1 | 1 |
| Voltage - Input (Min) | 36V | 6V |
| Voltage - Input (Max) | 75V | 14V |
| Voltage - Output 1 | 1.8 ~ 3.6V | 0.8 ~ 2.75V |
| Current - Output (Max) | 25A | 30A |
| Power (Watts) | 90 W | 80 W |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Efficiency | 91% | 91.3% |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 10-SMD Module | 10-SMD Module |
| RoHS Status | ROHS3 Compliant | RoHS Compliant |
| MSL | 1 (Unlimited) | 2A (4 Weeks) |
| Product Status | Not For New Designs | Active |
| Inventory | 963 Pcs | 1712 Pcs |
Engineering Selection Recommendations
PTB48520WAS is designated "Not For New Designs" and is ROHS3 compliant with MSL 1 (Unlimited) qualification. ATS030A0X3-SRHZ is RoHS compliant and holds an "Active" product status, with MSL 2A (4 Weeks) rating. Both models are suitable for ITE (Commercial) applications, and each supports surface mount configurations within a 10-SMD module package. Both comply with relevant environmental directives as listed.
Frequently Asked Questions (FAQ)
Q: What are the key criteria for substituting DC DC converter modules in this category?
A: The number of outputs, input voltage and output voltage ranges, output current, power rating, module type (Isolated/Non-Isolated), mounting type, application suitability, compliance (RoHS, MSL), and package format.
Q: Does the substitute part ATS030A0X3-SRHZ match the form factor and application area of PTB48520WAS?
A: Both use a 10-SMD Module surface mount package and are specified for ITE (Commercial) applications.
Q: Are there differences in environmental and compliance ratings?
A: PTB48520WAS is ROHS3 compliant with MSL 1 (Unlimited); ATS030A0X3-SRHZ is RoHS compliant with MSL 2A (4 Weeks). Both are intended for industrial environments.
Q: Is the substitute part suitable for high-reliability or high-volume assembly?
A: Both parts are designed for surface mount assembly. MSL level differences may influence assembly process considerations.
Q: Is the substitute part currently active and available for new designs?
A: ATS030A0X3-SRHZ holds an "Active" status and is available in standard packaging formats.
