PT4313A Equivalent & Substitute Parts Reference

Part Overview

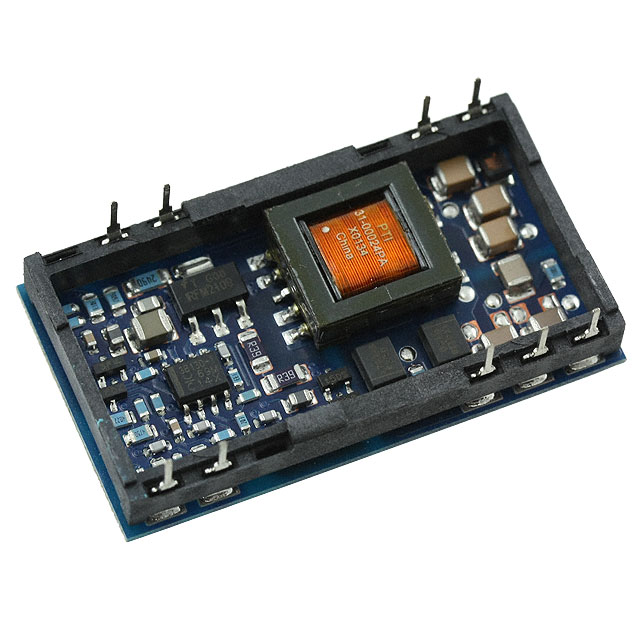

Manufacturer part number PT4313A is a DC DC converter module produced by Texas Instruments. It provides isolated dual outputs of +12V and -12V at a maximum current of 500mA per output with a 38V–75V input voltage range. The product is classified as "Obsolete" by the manufacturer and is part of the PT4310 (6W) series. Due to its obsolete status, sourcing direct replacements is necessary to maintain design continuity and production in legacy or servicing applications.

Substiute Parts

PT4313A

Texas InstrumentsIn Stock: 901PT4313A Datasheet

Current PartRFQ

REC15-4812D/H2/M

Recom PowerIn Stock: 720REC15-4812D/H2/M Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined by matching the following parameters: converter type, number of outputs, input voltage range, individual output voltages, maximum output current per channel, total output power, voltage isolation rating, application classification, mounting type, and compliance status. Only parts meeting or exceeding these criteria are included as substitutes.

Key parameters considered:

• Type (Isolated Module)
• Number of Outputs
• Input Voltage Range
• Output Voltages (+12V, -12V)
• Max Output Current (per channel)
• Output Power (W)
• Isolation Voltage
• Application Type
• Mounting Type
• Compliance (RoHS, MSL, REACH)

Parameter Comparison

Engineering Selection Recommendations

The main part number PT4313A is designated as obsolete. Substitute part REC15-4812D/H2/M is listed with active product status and is ROHS3 compliant, MSL 1 (Unlimited), and REACH unaffected, matching the compliance and certification profile required. Recommendations are based strictly on the component's product lifecycle status and regulatory compliance as provided.

Frequently Asked Questions (FAQ)

Q1: What are the primary criteria for selecting a substitute for PT4313A?
A: Substitutes must match or exceed the type (isolated module), number of outputs, input voltage range, output voltages, maximum output current, power rating, isolation voltage, application category, mounting type, and compliance certifications.

Q2: Are both PT4313A and REC15-4812D/H2/M suitable for through-hole PCB designs?
A: Both PT4313A and REC15-4812D/H2/M have a through hole mounting type as specified in the provided parameters.

Q3: Is the substitute part REC15-4812D/H2/M compliant with RoHS and REACH?
A: REC15-4812D/H2/M is ROHS3 compliant and REACH unaffected, matching the compliance status of PT4313A.

Q4: Does the substitute provide the required dual output voltages and currents?
A: REC15-4812D/H2/M provides dual outputs of +12V and -12V and supports equal or higher current ratings compared to PT4313A per the provided parameters.

Q5: Are there differences in package and case between the original and substitute part?
A: PT4313A is in an 18-DIP Module, 9 Leads package, and REC15-4812D/H2/M is in a 6-DIP Module. Only the provided package descriptions are considered; no additional compatibility assertions can be made.
