PSMP-FSBA-2380 Equivalent & Substitute Parts Reference

Part Overview

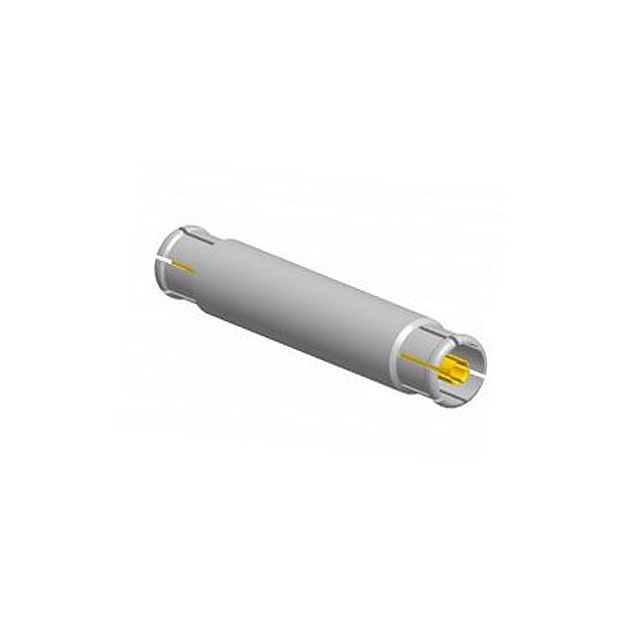

The PSMP-FSBA-2380 is a coaxial adapter connector manufactured by Amphenol RF, designed to connect two PSMP plug female socket interfaces. This adapter operates at 50 ohms impedance with a maximum frequency rating of 10 GHz and is suitable for RF/microwave applications requiring inline connection of identical connector types. The product is currently in active status with 1078 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary manufacturer part becomes unavailable or when supply chain diversification is required.

Substiute Parts

PSMP-FSBA-2380

Amphenol RFIn Stock: 1173PSMP-FSBA-2380 Datasheet

Current PartRFQ

119K107-K00N5

RosenbergerIn Stock: 1152119K107-K00N5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PSMP-FSBA-2380 is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Adapter Series: PSMP to PSMP (same connector interface on both ends)
• Center Gender: Female to Female (socket-to-socket configuration)
• Impedance: 50 Ohms (RF characteristic impedance)
• Frequency Rating: Minimum 10 GHz capability
• Operating Temperature Range: -65°C to 165°C or broader
• Mounting Type: Free Hanging (In-Line)
• Style: Straight connector orientation

Compliance Parameters:

• RoHS3 Compliance status
• REACH Affected designation

The substitute part 119K107-K00N5 from Rosenberger meets all mandatory matching parameters, confirming functional and mechanical interchangeability within the specified electrical and environmental operating conditions.

Parameter Comparison

Engineering Selection Recommendations

Primary Part Selection (PSMP-FSBA-2380): Select the Amphenol RF PSMP-FSBA-2380 when this specific manufacturer part is available and supply is confirmed. The part maintains active product status with established inventory levels and full ROHS3 and REACH compliance certification.

Substitute Part Selection (119K107-K00N5): The Rosenberger 119K107-K00N5 serves as a direct functional equivalent when the primary Amphenol RF part is unavailable. This substitute maintains identical electrical specifications (50 ohms, 10 GHz maximum frequency), mechanical interface (PSMP female-to-female), and environmental operating range (-65°C to 165°C). Both parts carry equivalent regulatory compliance status (ROHS3 Compliant, REACH Affected).

Compliance Verification: Both parts satisfy ROHS3 compliance requirements and REACH regulatory obligations. MSL rating of 1 (Unlimited) applies to the primary part; verify equivalent moisture sensitivity classification for the substitute before procurement.

Frequently Asked Questions (FAQ)

Q: Can the 119K107-K00N5 directly replace the PSMP-FSBA-2380 in existing applications?

A: Yes. Both parts are PSMP female-to-female adapters with identical 50-ohm impedance, straight-through configuration, and free-hanging inline mounting. Electrical and mechanical compatibility is confirmed across the specified operating temperature range of -65°C to 165°C.

Q: What determines whether a part qualifies as a substitute for the PSMP-FSBA-2380?

A: Substitution requires matching on: adapter series (PSMP to PSMP), center gender (female to female), impedance (50 ohms), frequency capability (minimum 10 GHz), operating temperature range (-65°C to 165°C or broader), mounting type (free hanging in-line), and connector style (straight). Regulatory compliance (ROHS3, REACH) must also align.

Q: Are there differences in mating cycle ratings between the primary and substitute parts?

A: The primary part specifies 100 mating cycles. Equivalent mating cycle specifications for the substitute part should be confirmed during procurement to ensure consistency with application duty cycle requirements.

Q: Do both parts require the same handling and storage conditions?

A: Both parts carry MSL rating 1 (Unlimited moisture sensitivity level), indicating no special moisture control requirements during storage or handling. Standard ESD precautions for RF connectors apply to both parts.

Q: What is the maximum frequency at which these adapters operate?

A: Both the PSMP-FSBA-2380 and 119K107-K00N5 are rated for maximum frequency operation of 10 GHz, suitable for microwave and high-frequency RF applications within this bandwidth.
