PP1-DB7-2B2 Equivalent & Substitute Parts

Part Overview

The PP1-DB7-2B2 is a snap-action SPDT switch manufactured by E-Switch, designed for panel mount applications with a 16A AC rating at 125V. This component features a push-pull plunger actuator with quick connect termination and is classified as obsolete. Due to its obsolete status, identifying functionally equivalent substitute parts is essential for ongoing system maintenance, repair, and new design implementations where this switch type is required.

Substiute Parts

PP1-DB7-2B2

E-SwitchIn Stock: 1065PP1-DB7-2B2 Datasheet

Current PartRFQ

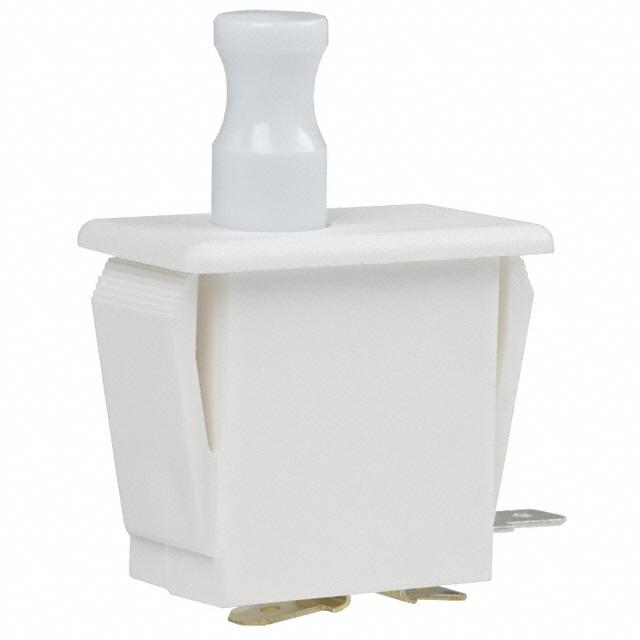

1DM401

Honeywell Sensing and Productivity SolutionsIn Stock: 18981DM401 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PP1-DB7-2B2 is determined by the following critical parameters:

• Circuit Configuration: Must be SPDT to maintain electrical functionality
• Switch Function: Must be On-Mom to preserve operational behavior
• Mounting Type: Must be Panel Mount, Snap-In for mechanical compatibility
• Termination Style: Must be Quick Connect - 0.187" (4.7mm) for connection compatibility
• Voltage Rating: Must support 125V AC minimum
• Current Rating: Must support the required load; lower ratings indicate reduced capacity
• Actuator Type: Must be Push-Pull Plunger for user interface consistency

The substitute part 1DM401 meets these core substitution criteria, though with variations in current rating and operating force specifications.

Parameter Comparison

Engineering Selection Recommendations

The 1DM401 serves as a functional substitute for the PP1-DB7-2B2 based on matching circuit configuration, switch function, mounting type, and termination style. Key considerations for selection:

Current Rating Differential: The 1DM401 is rated for 10A AC versus the PP1-DB7-2B2's 16A AC rating. This substitute is suitable only for applications where the actual load current does not exceed 10A. Applications requiring the full 16A capacity cannot use this substitute.

Product Status: The 1DM401 is active production, ensuring availability and supply chain continuity compared to the obsolete PP1-DB7-2B2.

Compliance: Both parts meet RoHS requirements and REACH unaffected status, supporting regulatory compliance in equivalent manner.

Operating Force: The 1DM401 requires 425gf operating force compared to 300gf for the PP1-DB7-2B2. This higher actuation force may affect user experience in applications with frequent manual operation.

Temperature Range: The 1DM401 supports -37°C ~ 82°C, providing extended low-temperature capability compared to the PP1-DB7-2B2's 0°C ~ 85°C range.

Frequently Asked Questions (FAQ)

Q: Can the 1DM401 directly replace the PP1-DB7-2B2 in all applications?

A: The 1DM401 is mechanically and electrically compatible for panel mount snap-in installations with quick connect termination. However, substitution is limited to applications where the load current does not exceed 10A AC. Applications requiring 16A capacity require alternative solutions.

Q: What is the primary difference between these two switches?

A: The primary difference is current rating. The PP1-DB7-2B2 handles 16A AC, while the 1DM401 handles 10A AC. Both maintain identical circuit configuration (SPDT), switch function (On-Mom), mounting type (Panel Mount, Snap-In), and termination style (Quick Connect - 0.187").

Q: Are there packaging differences between these parts?

A: The PP1-DB7-2B2 is supplied with standard packaging, while the 1DM401 is supplied in bulk packaging. Packaging differences do not affect functional compatibility.

Q: Does the higher operating force of the 1DM401 affect compatibility?

A: The 1DM401's 425gf operating force versus the PP1-DB7-2B2's 300gf does not prevent substitution but may require increased actuation effort in manual operation scenarios. This is a user experience consideration rather than a functional incompatibility.

Q: What compliance certifications apply to both parts?

A: Both parts are RoHS compliant and REACH unaffected. The PP1-DB7-2B2 specifically meets ROHS3 compliance, while the 1DM401 meets general RoHS compliance. Both carry EAR99 ECCN classification.
