PN10-8SLF-2K Equivalent & Substitute Parts

Part Overview

The PN10-8SLF-2K is a yellow insulated spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 10-12 AWG wire onto an 8 stud. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity for applications requiring this terminal type and electrical specification.

Substiute Parts

PN10-8SLF-2K

Panduit CorpIn Stock: 1174PN10-8SLF-2K Datasheet

Current PartRFQ

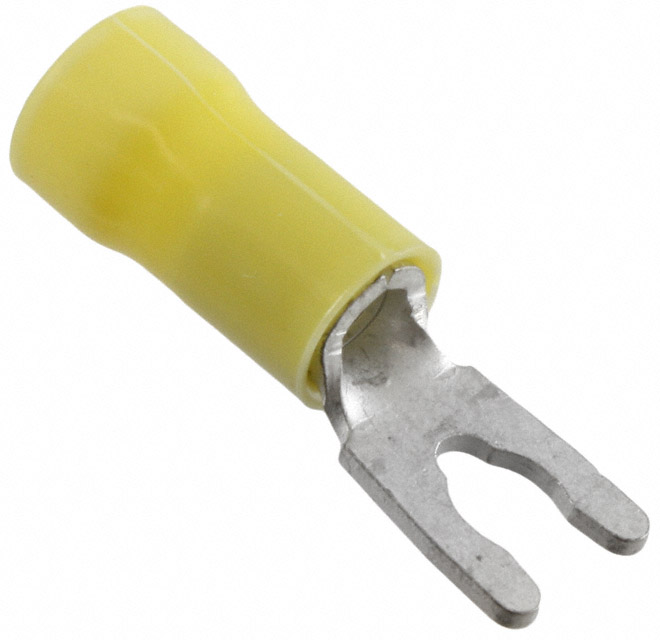

53247-2

TE Connectivity AMP ConnectorsIn Stock: 2434553247-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PN10-8SLF-2K is determined by strict equivalence across the following critical parameters:

• Wire Gauge: 10-12 AWG (electrical specification for conductor cross-section compatibility)
• Stud/Tab Size: 8 Stud (mechanical interface specification for connection point)
• Terminal Type: Spring, Snap (functional design classification)
• Termination Method: Crimp (assembly process compatibility)
• Insulation Status: Insulated (safety and application requirement)
• Color: Yellow (industry standard color coding for wire gauge identification)
• Mounting Type: Free Hanging (In-Line) (installation configuration)
• Features: Serrated Termination (mechanical grip enhancement)

The substitute part TE Connectivity AMP Connectors 53247-2 satisfies all critical substitution parameters. Dimensional variations in width, length, and insulation diameter fall within acceptable tolerances for mechanical fit and electrical performance in equivalent applications. The substitute part maintains active product status with established supply availability.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 53247-2 is the direct equivalent substitute for the obsolete PN10-8SLF-2K. Selection is based on the following engineering criteria:

Product Status: The PN10-8SLF-2K is classified as obsolete. The 53247-2 maintains active product status with confirmed inventory availability (24,246 pieces in stock), ensuring supply chain continuity.

Electrical Equivalence: Both parts satisfy identical wire gauge (10-12 AWG) and stud size (8 stud) specifications, confirming electrical compatibility for equivalent circuit applications.

Mechanical Compatibility: Dimensional variations between the parts (width, length, and insulation diameter) are within acceptable tolerances for mechanical fit in standard connector applications. The substitute part's insulation diameter range (0.150" ~ 0.250") encompasses the original specification (0.225").

Compliance Status: The 53247-2 is ROHS3 compliant and carries an MSL rating of 1 (Unlimited), providing superior environmental and moisture handling characteristics compared to the original part's unspecified status.

Material Consideration: The substitute part uses PVC insulation material versus the original nylon/polyamide composition. Both materials are standard for insulated spade terminals in this application class and provide equivalent electrical insulation properties.
