PM-T64 Equivalent & Substitute Parts

Part Overview

The PM-T64 is an optical sensor module manufactured by Panasonic Industrial Automation Sales, designed for through-beam sensing applications with a 0.197" (5mm) sensing distance. The sensor features NPN output with selectable Dark-ON/Light-ON configuration, operating across -25°C to 55°C. The product is currently obsolete, making identification of equivalent and substitute parts essential for system maintenance, redesign, and procurement planning.

Substiute Parts

PM-T64

Panasonic Industrial Automation SalesIn Stock: 821PM-T64 Datasheet

Current PartRFQ

PM-T65

Panasonic Industrial Automation SalesIn Stock: 1390PM-T65 Datasheet

SimilarRFQ

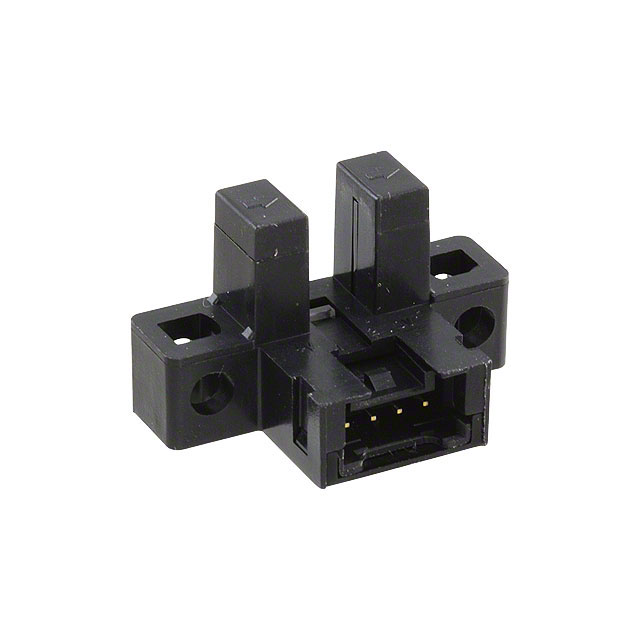

PM-L64

Panasonic Industrial Automation SalesIn Stock: 770PM-L64 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PM-T64 are identified based on the following critical parameters that determine functional compatibility:

Primary Substitution Criteria:

• Sensing method (Through-Beam)
• Output configuration type (NPN)
• Mounting type (Chassis Mount)
• Package form factor (Module, Connector)
• Operating temperature range (-25°C ~ 55°C)
• Response time (20µs)

Sensing Distance Tolerance: The PM-T64 operates at 0.197" (5mm). The PM-T65 operates at 0.236" (6mm), representing a 1mm increase in sensing distance. This difference is acceptable for applications where the increased detection range does not conflict with system geometry or sensing requirements.

Output Configuration: The PM-T64 features selectable Dark-ON/Light-ON output. The PM-T65 provides NPN Open Collector output without selectable polarity. This represents a functional difference requiring circuit-level evaluation.

Parametric Equivalent: The PM-L64 maintains identical electrical and mechanical specifications to the PM-T64, including sensing distance, output configuration, current ratings, and voltage breakdown characteristics, making it a direct parametric equivalent.

Parameter Comparison

Engineering Selection Recommendations

PM-L64 (Parametric Equivalent): The PM-L64 is the direct parametric equivalent to the PM-T64, matching all electrical specifications, sensing distance, output configuration, and operating parameters. Both parts are obsolete and RoHS compliant. Selection of PM-L64 requires no circuit modification and maintains identical system performance.

PM-T65 (Similar Substitute): The PM-T65 is an active product offering improved availability compared to the obsolete PM-T64. It maintains through-beam sensing methodology, NPN output, identical response time, and operating temperature range. The PM-T65 differs in sensing distance (6mm vs. 5mm) and output configuration (Open Collector vs. selectable Dark-ON/Light-ON). The PM-T65 achieves ROHS3 compliance, representing a more current regulatory status. Selection of PM-T65 requires evaluation of sensing distance tolerance and output circuit compatibility.

Frequently Asked Questions (FAQ)

Q: Can PM-T65 directly replace PM-T64 without circuit modification?

A: The PM-T65 differs in output configuration (Open Collector vs. selectable Dark-ON/Light-ON) and sensing distance (6mm vs. 5mm). Circuit-level evaluation is required to confirm compatibility with existing signal conditioning and detection logic.

Q: What is the difference between PM-L64 and PM-T64?

A: PM-L64 and PM-T64 are parametric equivalents with identical electrical specifications, sensing distance, output configuration, and operating parameters. Both are obsolete products from Panasonic Industrial Automation Sales.

Q: Does sensing distance difference between PM-T64 (5mm) and PM-T65 (6mm) affect system performance?

A: The 1mm increase in sensing distance may affect detection range and spatial resolution. System geometry and application requirements must be evaluated to determine if this difference is acceptable.

Q: Are all substitute parts RoHS compliant?

A: PM-T64 and PM-L64 are RoHS Compliant. PM-T65 is ROHS3 Compliant. Both compliance levels are acceptable for current procurement and regulatory requirements.

Q: What is the package difference between PM-T64 and PM-T65?

A: PM-T64 uses Module, Connector, Slot Type packaging. PM-T65 uses Module, Connector packaging. Mechanical fit and mounting compatibility must be verified for the specific application.

Q: Which substitute part has the best availability?

A: PM-T65 is the only active product among the three options, providing superior long-term availability and procurement reliability.
