PMNF6-6F-L Equivalent & Substitute Parts

Part Overview

The PMNF6-6F-L is a yellow M6 stud spade terminal connector manufactured by Panduit Corp, designed for crimp termination of 10-12 AWG wire. This insulated terminal features a tin contact finish on copper material and is configured for free-hanging, in-line mounting applications. The product is classified as obsolete, necessitating identification of active equivalent components that maintain functional and dimensional compatibility for continued system support and procurement.

Substiute Parts

PMNF6-6F-L

Panduit CorpIn Stock: 1081PMNF6-6F-L Datasheet

Current PartRFQ

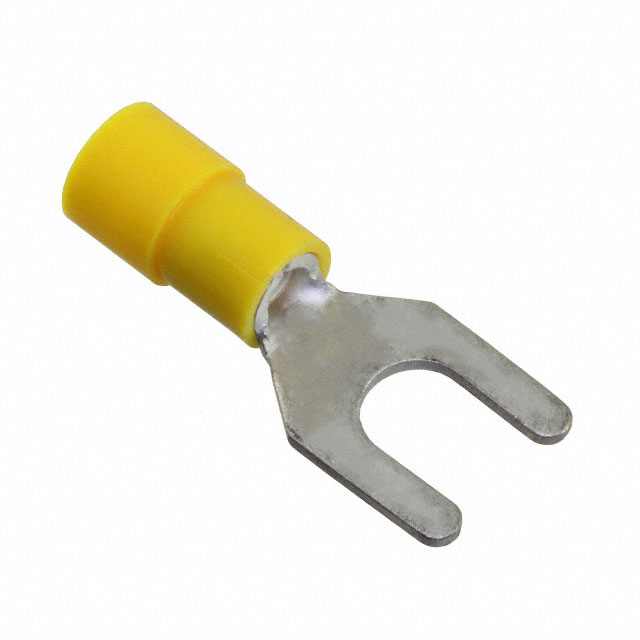

3240044

Phoenix ContactIn Stock: 18843240044 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PMNF6-6F-L is determined by strict equivalence across the following critical parameters:

• Stud/Tab Size: M6 stud configuration ensures mechanical compatibility with mating connectors and fastening systems
• Wire Gauge: 10-12 AWG range defines the conductor cross-section and current-carrying capacity
• Termination Method: Crimp termination requires compatible tooling and wire preparation
• Contact Material and Finish: Copper with tin finish ensures electrical conductivity and corrosion resistance
• Insulation Type: Insulated construction provides electrical isolation and safety
• Color Coding: Yellow designation indicates standard circuit identification
• Mounting Configuration: Free-hanging, in-line orientation defines spatial and installation requirements

The substitute part 3240044 (Phoenix Contact CLIPLINE series) satisfies all critical substitution criteria while offering active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The 3240044 (Phoenix Contact) terminal serves as the functional equivalent for the obsolete PMNF6-6F-L. Both components share identical critical specifications: M6 stud size, 10-12 AWG wire gauge, crimp termination, copper with tin contact finish, and yellow insulation color.

The Phoenix Contact substitute offers the following advantages for component selection:

• Active Product Status: Ensures ongoing availability and supply chain continuity
• RoHS3 Compliance: Meets current environmental and hazardous substance restrictions
• REACH Unaffected Status: Confirms regulatory compliance for European Union applications
• Moisture Sensitivity Level 1: Indicates unlimited shelf life without special storage requirements

Minor dimensional variations exist between the two components (width and overall length differences of approximately 0.039" and 0.051" respectively). These variations remain within acceptable tolerances for standard M6 stud mounting applications and do not affect functional compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 3240044 directly replace the PMNF6-6F-L in existing assemblies?

A: Yes. Both terminals share identical stud size (M6), wire gauge (10-12 AWG), termination method (crimp), contact material (copper with tin finish), and insulation color (yellow). The minor dimensional differences do not affect mechanical or electrical compatibility in standard mounting configurations.

Q: What is the significance of the obsolete product status for PMNF6-6F-L?

A: Obsolete status indicates that Panduit Corp has discontinued manufacturing and support for this component. Transition to an active equivalent such as 3240044 ensures continued procurement availability and access to current manufacturing quality standards.

Q: Are there compliance differences between the two terminals?

A: The 3240044 provides explicit RoHS3 compliance and REACH unaffected status certifications. The PMNF6-6F-L specifications do not include these compliance statements. Both components carry identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Q: What do the dimensional differences between the two terminals indicate?

A: The 3240044 exhibits slightly larger outer width (0.472" versus 0.433") and overall length (1.193" versus 1.142"). These differences reflect design variations between manufacturers but do not compromise functional compatibility for M6 stud applications. Verify clearance in space-constrained installations.

Q: How does the Moisture Sensitivity Level (MSL) affect component handling?

A: The PMNF6-6F-L lists MSL as not applicable, while the 3240044 specifies MSL 1 (unlimited shelf life). MSL 1 classification indicates no special moisture control requirements during storage or handling, simplifying logistics and inventory management.

Q: What packaging considerations apply to the substitute part?

A: The 3240044 is supplied in bulk packaging. Verify that bulk packaging meets your procurement and inventory requirements. The original PMNF6-6F-L packaging specification is not provided in the component data.
