PM-L54P Equivalent & Substitute Parts

Part Overview

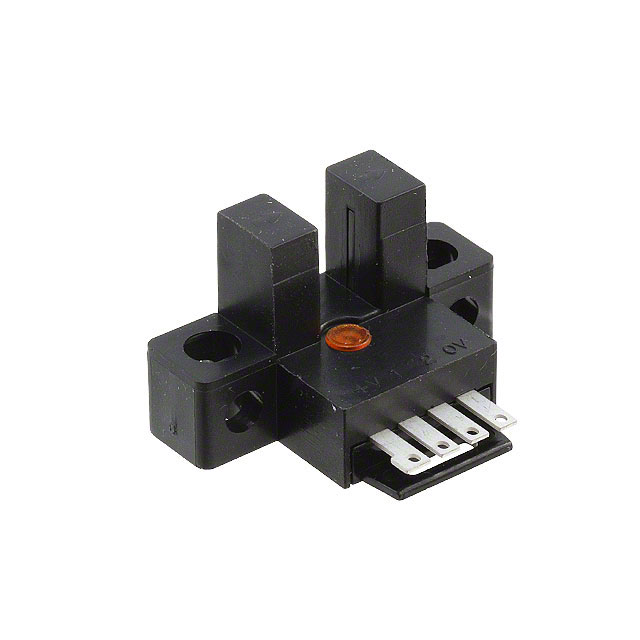

The PM-L54P is an optical sensor manufactured by Panasonic Industrial Automation Sales, designed as a through-beam slot-type module with selectable PNP output configuration (Dark-ON/Light-ON). This component operates at a 0.197" (5mm) sensing distance and is classified as an unamplified optical sensor with wire lead connections for chassis mounting.

The PM-L54P is currently listed as obsolete. Identifying equivalent and substitute parts is necessary to maintain system functionality in applications where original stock is depleted or long-term availability cannot be guaranteed.

Substiute Parts

PM-L54P

Panasonic Industrial Automation SalesIn Stock: 1181PM-L54P Datasheet

Current PartRFQ

PM-L45-P

Panasonic Industrial Automation SalesIn Stock: 1144PM-L45-P Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PM-L54P is determined by the following critical parameters:

Primary Compatibility Criteria:

• Sensing method: Through-Beam
• Output configuration: PNP topology
• Mounting type: Chassis Mount
• Package type: Module with wire leads
• Operating temperature range: -25°C ~ 55°C minimum
• Response time: 20µs or faster
• RoHS compliance status

Secondary Consideration:

• Sensing distance tolerance: The PM-L54P operates at 0.197" (5mm). Substitute parts with different sensing distances (such as 0.236" / 6mm) may be used in applications where the optical gap can be mechanically adjusted or where the application tolerates the distance variation.

The PM-L45-P qualifies as a substitute based on matching through-beam sensing method, PNP output configuration, chassis mount design, wire lead package, identical operating temperature range, and equivalent response time specifications. The increased sensing distance (0.236" vs 0.197") represents a mechanical design difference that does not prevent functional substitution in most slot-type sensor applications.

Parameter Comparison

Engineering Selection Recommendations

The PM-L45-P is the documented substitute for the PM-L54P based on Panasonic's internal cross-reference data. Selection of this substitute is supported by the following factors:

Compliance & Availability:

• PM-L45-P maintains active product status with confirmed inventory (1084 pcs), ensuring long-term availability compared to the obsolete PM-L54P
• Both components meet RoHS compliance requirements (RoHS Compliant vs ROHS3 Compliant)
• Both components carry MSL Level 1 rating, indicating identical moisture handling requirements

Functional Equivalence:

• Identical through-beam sensing method and PNP output topology
• Matching response time specification at 20µs
• Identical operating temperature range (-25°C ~ 55°C)
• Equivalent chassis mount and wire lead package configuration

Design Consideration:

• The PM-L45-P sensing distance of 0.236" (6mm) differs from the PM-L54P at 0.197" (5mm). This 1mm difference is a mechanical parameter that may require slot or gap adjustment in the application. Verify that the increased sensing distance is compatible with the mechanical design of the target application before final selection.

Frequently Asked Questions (FAQ)

Q: Can the PM-L45-P directly replace the PM-L54P without any modifications?

A: The PM-L45-P is electrically and functionally equivalent to the PM-L54P. However, the sensing distance differs by 1mm (6mm vs 5mm). Direct replacement is possible if the application's optical gap can accommodate the 6mm sensing distance. If the mechanical slot or gap is fixed at 5mm, physical adjustment or redesign may be required.

Q: What is the difference between "Dark-ON/Light-ON - Selectable" and "Open Collector" output configurations?

A: The PM-L54P offers selectable output logic, allowing configuration for either dark-ON (output active when beam is blocked) or light-ON (output active when beam is clear) operation. The PM-L45-P uses open collector output topology, which requires external pull-up resistor configuration. Both are PNP configurations; the difference lies in output logic flexibility versus fixed topology.

Q: Are there any supply voltage differences between these parts?

A: The PM-L54P specifications do not include supply voltage data in the provided parameters. The PM-L45-P operates at 5V ~ 24V supply range. Verify the PM-L54P supply voltage requirement from the original datasheet before substitution to ensure power supply compatibility.

Q: What does MSL Level 1 mean for these components?

A: Moisture Sensitivity Level (MSL) 1 indicates unlimited shelf life with no special moisture control requirements during storage or handling. Both the PM-L54P and PM-L45-P carry this rating, meaning they can be stored under standard conditions without desiccant packaging or controlled humidity environments.

Q: Why is the PM-L54P listed as obsolete?

A: Product obsolescence is determined by the manufacturer based on market demand, technology evolution, and production decisions. The PM-L45-P represents the active successor in Panasonic's optical sensor product line, offering equivalent functionality with continued manufacturing support and availability.

Q: Can the PM-L45-P be used in applications originally designed for the PM-L54P?

A: Yes, provided that the application can accommodate the 6mm sensing distance and the output logic configuration (open collector) is compatible with the system's signal processing circuit. Mechanical and electrical integration testing is recommended for critical applications.
