Panasonic PM-L54 Optical Sensor Equivalent & Substitute Parts

Part Overview

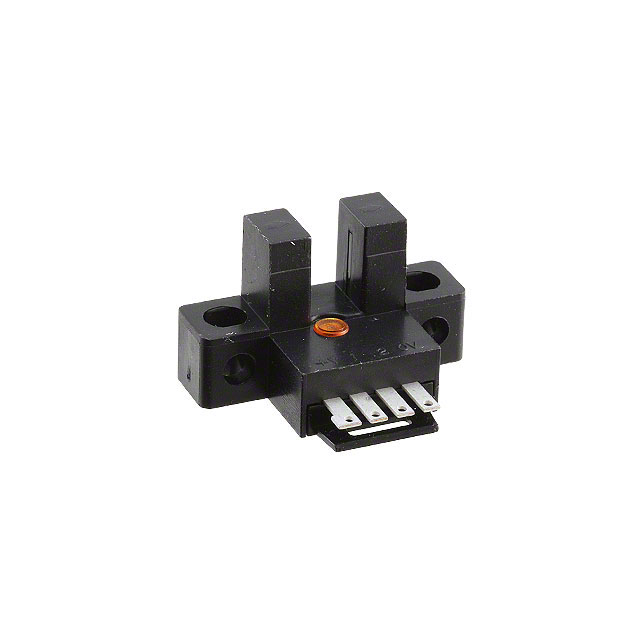

The Panasonic PM-L54 is an optical through-beam sensor module with NPN output configuration and selectable Dark-ON/Light-ON operation. This component features a 0.197" (5mm) sensing distance and is designed for slot-type mounting applications with wire leads. The PM-L54 is classified as obsolete, making identification of compatible substitute parts essential for ongoing system maintenance and new design implementations where equivalent functionality is required.

Substiute Parts

PM-L54

Panasonic Industrial Automation SalesIn Stock: 78771PM-L54 Datasheet

Current PartRFQ

PM-L45

Panasonic Industrial Automation SalesIn Stock: 1957PM-L45 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PM-L54 is determined by the following critical parameters:

• Sensing Method: Through-beam operation is mandatory for functional equivalence
• Output Configuration: NPN output type is required for circuit compatibility
• Mounting Type: Chassis mount with wire leads ensures mechanical fit
• Response Time: 20µs response time establishes performance baseline
• Operating Temperature Range: -25°C ~ 55°C defines environmental compatibility
• Electrical Ratings: Collector current (15 mA max) and voltage ratings (30 V max) establish load compatibility

The PM-L45 qualifies as a substitute based on these core parameters. While the sensing distance differs (0.236" vs 0.197"), both sensors maintain through-beam operation, NPN output, chassis mount configuration, and compatible electrical specifications within the defined operating envelope.

Parameter Comparison

Engineering Selection Recommendations

The PM-L45 is an active product with current manufacturing status and ROHS3 compliance, providing supply chain continuity for applications previously using the obsolete PM-L54. Both sensors maintain identical operating temperature ranges (-25°C ~ 55°C) and response time specifications at 20µs, ensuring functional compatibility in timing-critical applications.

The primary design consideration is the increased sensing distance of the PM-L45 (0.236" / 6mm) compared to the PM-L54 (0.197" / 5mm). This 0.039" (1mm) difference must be evaluated against specific application slot geometry and object detection requirements. The PM-L45 output configuration operates as NPN Open Collector, compared to the PM-L54's selectable Dark-ON/Light-ON mode; circuit design must accommodate this functional difference.

Both components share identical electrical maximum ratings (15 mA collector current, 30 V collector-emitter breakdown voltage) and mounting methodology, supporting direct mechanical and electrical integration with appropriate circuit modifications.

Frequently Asked Questions (FAQ)

Q: Can the PM-L45 directly replace the PM-L54 without circuit modifications?

A: Mechanical and thermal compatibility is direct. However, the PM-L45 output configuration (NPN Open Collector) differs from the PM-L54's selectable Dark-ON/Light-ON mode. Circuit logic must be evaluated to confirm output behavior matches application requirements.

Q: What is the impact of the 0.039" (1mm) sensing distance difference?

A: The PM-L45 sensing distance of 0.236" (6mm) is longer than the PM-L54's 0.197" (5mm). Applications with tight slot geometry or specific object positioning may require mechanical adjustment or re-qualification of detection performance.

Q: Are both sensors electrically compatible with existing power supplies?

A: Yes. Both sensors operate within -25°C ~ 55°C temperature range and share identical maximum electrical ratings (15 mA collector current, 30 V breakdown voltage). Supply voltage specifications for the PM-L45 are 5V ~ 24V, which must be confirmed against the original PM-L54 circuit design.

Q: What is the significance of the PM-L45 being an active product?

A: Active product status ensures ongoing manufacturing, availability, and supply chain support. The obsolete PM-L54 has limited inventory; the PM-L45 provides long-term sourcing reliability for new designs and system maintenance.

Q: Do both sensors have equivalent RoHS compliance?

A: Both sensors are RoHS compliant. The PM-L54 carries RoHS Compliant status, while the PM-L45 carries ROHS3 Compliant status, indicating updated compliance with current environmental regulations.
