Equivalent & Substitute Parts Reference for Flex Power Modules PMG8218TP

Part Overview

The Flex Power Modules PMG8218TP is a non-isolated PoL DC-DC converter module providing a single output of 0.8V at up to 12A, designed for ITE (commercial) applications. This product is classified as obsolete, necessitating the identification and selection of substitute models with equivalent electrical and mechanical parameters to ensure continued system compatibility and performance.

Key Parameters

Manufacturer Part Number	Type	Number of Outputs	Voltage - Input (Min)	Voltage - Input (Max)	Voltage - Output 1	Current - Output (Max)	Power (Watts)	Applications	Operating Temperature	Efficiency	Mounting Type	Package / Case	Size / Dimension	RoHS Status	REACH Status	ECCN	HTSUS	Product Status
PMG8218TP	Non-Isolated PoL Module	1	10.8V	13.2V	0.8V	12A	9.6W	ITE (Commercial)	-40°C ~ 85°C (With Derating)	89.3%	Through Hole	10-DIP Module	1.37" L x 0.62" W x 0.35" H	ROHS3 Compliant	REACH Unaffected	EAR99	8504.40.9580	Obsolete

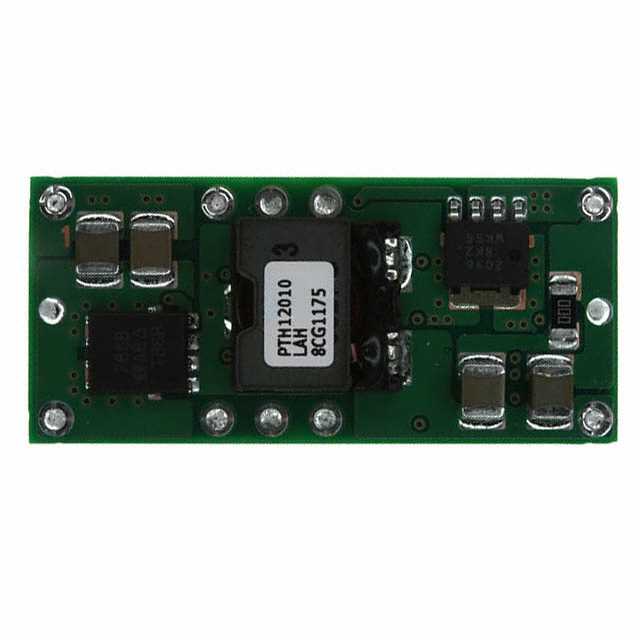

PTH12010LAH	Non-Isolated PoL Module	1	10.8V	13.2V	0.8 ~ 1.8V	12A	-	ITE (Commercial)	-40°C ~ 85°C	89%	Through Hole	10-DIP Module	1.37" L x 0.62" W x 0.36" H	ROHS3 Compliant	REACH Unaffected	EAR99	8504.40.9580	Active

Substitute Part Grouping Explanation

Substitution is determined strictly by the match of key electrical and mechanical parameters. These include: module type (non-isolated PoL), number of outputs, input voltage range, output voltage capability, maximum output current, mounting type, case/package, RoHS/REACH compliance, operating temperature range, and inventory status. Substitute parts must match or exceed all these criteria to ensure compatibility.

Parameter Comparison

Parameter	PMG8218TP	PTH12010LAH
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Number of Outputs	1	1
Voltage - Input (Min)	10.8V	10.8V
Voltage - Input (Max)	13.2V	13.2V
Voltage - Output 1	0.8V	0.8 ~ 1.8V
Current - Output (Max)	12A	12A
Applications	ITE (Commercial)	ITE (Commercial)
Operating Temperature	-40°C ~ 85°C (With Derating)	-40°C ~ 85°C
Efficiency	89.3%	89%
Mounting Type	Through Hole	Through Hole
Package / Case	10-DIP Module	10-DIP Module
Size / Dimension	1.37" L x 0.62" W x 0.35" H	1.37" L x 0.62" W x 0.36" H
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected
ECCN	EAR99	EAR99
HTSUS	8504.40.9580	8504.40.9580
Product Status	Obsolete	Active

Engineering Selection Recommendations

Selection between PMG8218TP and PTH12010LAH is based on product status, compliance, and certifications. PMG8218TP is listed as obsolete, while PTH12010LAH is active with inventory available. Both parts comply with ROHS3 and REACH requirements and have identical trade and export classifications. Parameters required for certification and application in regulated environments are matched.

Frequently Asked Questions (FAQ)

Q1: What are the critical parameters for substituting a PMG8218TP DC-DC converter?
A1: Critical parameters include type (non-isolated PoL module), number of outputs, input voltage range, output voltage range, maximum output current, mounting type, package/case, size/dimension, operating temperature range, regulatory compliance, and inventory/status.

Q2: Is the footprint and form factor of PTH12010LAH identical to PMG8218TP?
A2: Both modules use a 10-DIP package with similar dimensions, supporting compatible through-hole mounting in designs configured for PMG8218TP.

Q3: Are the substitute parts compliant with ROHS and REACH directives?
A3: Both PMG8218TP and PTH12010LAH are listed as ROHS3 compliant and REACH unaffected.

Q4: Can a substitute with a wider output voltage range be directly used?
A4: PTH12010LAH provides an adjustable output voltage range (0.8 ~ 1.8V), encompassing the fixed 0.8V of PMG8218TP, within identical electrical and mechanical constraints.

Q5: How does product status affect selection?
A5: With PMG8218TP classified as obsolete, selection should be based on active substitutes that match all specified substitution criteria.

Q6: Are there differences in operating temperature ratings?
A6: PMG8218TP specifies -40°C ~ 85°C with derating, while PTH12010LAH specifies -40°C ~ 85°C. Both cover the same industrial/commercial temperature range according to the listed data.
