PM6-8R-X Ring Terminal Connector M8 Crimp Equivalent & Substitute Parts

Part Overview

The PM6-8R-X is a circular ring terminal connector manufactured by Panduit Corp, designed for 10-12 AWG wire gauges with M8 stud mounting. This component features a brazed seam construction with serrated termination and tin-plated copper contact material. The part is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and system maintenance.

Substiute Parts

PM6-8R-X

Panduit CorpIn Stock: 927PM6-8R-X Datasheet

Current PartRFQ

3240086

Phoenix ContactIn Stock: 34783240086 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PM6-8R-X is determined by the following critical parameters:

Primary Compatibility Criteria:

• Terminal type must be circular
• Stud size must be M8
• Termination method must be crimp
• Contact material must be copper with tin finish
• Mounting configuration must be free hanging (in-line)
• Insulation type must be non-insulated

Secondary Compatibility Criteria:

• Wire gauge range must accommodate 10-12 AWG minimum
• Physical dimensions (thickness, width, length) must be within acceptable tolerance ranges for mechanical fit

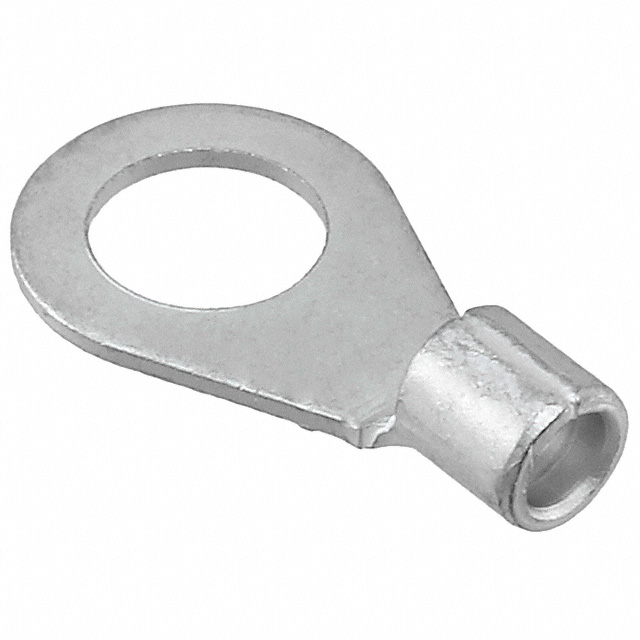

The substitute part 3240086 (Phoenix Contact CLIPLINE series) meets all primary compatibility criteria and extends wire gauge accommodation to 10-14 AWG, providing broader application flexibility while maintaining M8 stud compatibility and crimp termination methodology.

Parameter Comparison

Engineering Selection Recommendations

The 3240086 (Phoenix Contact CLIPLINE series) is the qualified substitute for the obsolete PM6-8R-X. Selection rationale is based on the following factors:

Functional Equivalence: The substitute maintains identical M8 stud configuration, crimp termination methodology, and non-insulated copper-tin contact construction. Physical dimension variances (thickness 0.001", width 0.029", length 0.052") are within acceptable mechanical tolerance ranges for free-hanging terminal applications.

Product Status: The 3240086 is classified as active with current manufacturing status, ensuring long-term availability and supply chain continuity. The PM6-8R-X obsolete status necessitates transition to an active equivalent.

Compliance Posture: The 3240086 carries ROHS3 compliance certification and REACH unaffected status, meeting contemporary regulatory requirements. Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications.

Wire Gauge Accommodation: The extended 10-14 AWG range of the 3240086 provides backward compatibility with the PM6-8R-X 10-12 AWG specification while enabling application flexibility for 14 AWG conductor terminations.

Frequently Asked Questions (FAQ)

Q: Can the 3240086 directly replace the PM6-8R-X in existing assemblies?

A: Yes. The 3240086 maintains identical M8 stud mounting, crimp termination, and non-insulated copper-tin contact specifications. Physical dimension variances are negligible for mechanical fit compatibility in free-hanging terminal applications.

Q: What is the significance of the extended 10-14 AWG wire gauge range in the 3240086?

A: The 3240086 accommodates the full 10-12 AWG specification of the PM6-8R-X while extending capability to 14 AWG conductors. This provides application flexibility without compromising compatibility with existing 10-12 AWG wire specifications.

Q: Are there packaging differences between the PM6-8R-X and 3240086?

A: The PM6-8R-X is supplied in unspecified packaging, while the 3240086 is supplied in bulk packaging. Procurement quantities and handling procedures may require adjustment based on bulk packaging requirements.

Q: How do the physical dimensions compare between these parts?

A: Thickness variance is 0.001" (0.03mm), width variance is 0.029" (0.74mm), and length variance is 0.052" (1.30mm). These minor dimensional differences do not affect mechanical compatibility in M8 stud mounting applications.

Q: What compliance certifications apply to the 3240086 substitute?

A: The 3240086 is ROHS3 compliant and REACH unaffected. Both the original PM6-8R-X and substitute share EAR99 ECCN and 8536.90.4000 HTSUS classifications.

Q: Is the 3240086 suitable for applications requiring non-insulated terminals?

A: Yes. The 3240086 is manufactured as a non-insulated terminal, matching the PM6-8R-X specification. Both parts feature exposed copper-tin contact construction.
