PM2-5R-X Equivalent & Substitute Parts

Part Overview

The PM2-5R-X is a ring terminal connector manufactured by Panduit Corp, designed for circular stud applications with 14-16 AWG wire gauge capacity. This non-insulated crimp terminal features a 5 stud configuration and is part of the Pan-Term® series. The product is currently classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing maintenance, repair, and replacement applications where this connector type is specified in existing designs or systems.

Substiute Parts

PM2-5R-X

Panduit CorpIn Stock: 1054PM2-5R-X Datasheet

Current PartRFQ

165295

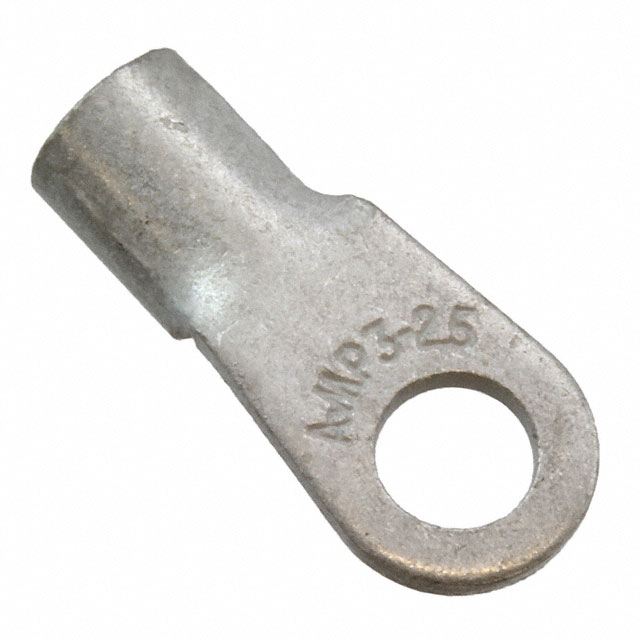

TE Connectivity AMP ConnectorsIn Stock: 7673165295 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the PM2-5R-X is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

• Terminal Type: Circular
• Stud/Tab Size: 5 Stud
• Wire Gauge: 14-16 AWG
• Termination Method: Crimp
• Insulation: Non-Insulated
• Contact Material: Copper
• Contact Finish: Tin
• Mounting Type: Free Hanging (In-Line)

The substitute part TE Connectivity AMP Connectors 165295 satisfies all mandatory matching parameters. This part is classified as active product status, ensuring ongoing availability and supply chain continuity. Both the main part and substitute are assigned identical HTSUS and ECCN classifications, confirming regulatory equivalence for trade and export purposes.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity AMP Connectors 165295 is the functional equivalent for the obsolete PM2-5R-X. Selection of this substitute is supported by the following engineering factors:

Product Status: The 165295 is classified as active product status, providing assured supply chain availability and manufacturer support. The PM2-5R-X obsolete status creates supply risk and limits access to technical documentation and manufacturing consistency.

Regulatory Compliance: Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications, confirming equivalent regulatory treatment for procurement and export documentation.

RoHS Compliance: The 165295 is RoHS3 compliant, meeting current environmental and hazardous substance restrictions. This compliance status supports use in applications subject to RoHS directives.

Dimensional Consistency: Thickness measurements are equivalent (0.032" vs. 0.031"), confirming mechanical fit compatibility in standard mounting applications. Width variation (0.350" vs. 0.236") reflects design differences between manufacturers but does not affect functional performance in free-hanging in-line mounting configurations where stud diameter and wire gauge are the controlling dimensions.

Electrical Equivalence: Copper contact material with tin finish, combined with matching wire gauge and stud size specifications, ensures electrical performance parity for crimp termination applications.

Frequently Asked Questions (FAQ)

Q: Can the TE Connectivity 165295 be used as a direct replacement for the Panduit PM2-5R-X?

A: Yes. Both parts meet identical specifications for terminal type (circular), stud size (5 stud), wire gauge (14-16 AWG), termination method (crimp), contact material (copper), and contact finish (tin). The 165295 is functionally equivalent and is classified as active product status, ensuring supply availability.

Q: What is the significance of the width difference between these parts?

A: The PM2-5R-X has an outer edge width of 0.350" (8.89mm), while the 165295 measures 0.236" (6.00mm). This variation reflects design differences between manufacturers but does not affect functional performance in applications where the controlling dimensions are stud diameter and wire gauge capacity. Both parts are designed for free-hanging in-line mounting.

Q: Are there compliance or regulatory differences between these parts?

A: No. Both parts share identical ECCN (EAR99) and HTSUS (8536.90.4000) classifications. The 165295 carries RoHS3 compliance certification, which exceeds the environmental standards applicable to the obsolete PM2-5R-X.

Q: Why is the PM2-5R-X classified as obsolete?

A: Obsolete product status indicates that the manufacturer (Panduit Corp) has discontinued production and support for this part. The TE Connectivity 165295 remains in active production, providing continuity for applications requiring this connector type.

Q: What packaging format is the substitute available in?

A: The TE Connectivity 165295 is supplied in box packaging. Inventory availability is 7,593 pieces of new original stock.

Q: Are the crimp termination specifications identical between these parts?

A: Yes. Both parts use crimp termination and feature serrated termination design. The PM2-5R-X includes brazed seam construction, while the 165295 specification does not reference this feature. Both are suitable for 14-16 AWG wire gauge applications.

Q: What is the moisture sensitivity level (MSL) of the substitute part?

A: The TE Connectivity 165295 is rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling. The PM2-5R-X is rated as Not Applicable for MSL.
