PL375MC-201 Equivalent & Substitute Parts

Part Overview

The PL375MC-201 is a TRT (Twinaxial) connector plug manufactured by Cinch Connectivity Solutions Trompeter. This male pin connector features crimp termination for both center contact and shield, designed for free-hanging in-line applications. The part is classified as Active product status with 1083 pieces currently in stock. Alternative equivalent parts are necessary to support supply chain flexibility, procurement optimization, and design redundancy in applications requiring twinaxial RF connectivity.

Substiute Parts

PL375MC-201

Cinch Connectivity Solutions TrompeterIn Stock: 1112PL375MC-201 Datasheet

Current PartRFQ

PL375C-201

Cinch Connectivity Solutions TrompeterIn Stock: 952PL375C-201 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the PL375MC-201 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: TRT, Twinaxial
• Connector Type: Plug, Male Pin (Concentric)
• Contact Termination: Crimp
• Shield Termination: Crimp
• Impedance: Non-Constant
• Mounting Type: Free Hanging (In-Line)
• Frequency - Max: 500 MHz
• Number of Ports: 1
• Operating Temperature Range: -65°C ~ 165°C
• Voltage Rating: 400 V
• Mating Cycles: 500
• Cable Group: M17/176-00002
• Fastening Type: Threaded

The substitute part PL375C-201 meets all mandatory matching parameters and is therefore classified as a parametric equivalent. Both parts belong to the same base product family (PL375) and series (370), confirming functional and mechanical interchangeability within the specified electrical and environmental constraints.

Parameter Comparison

Engineering Selection Recommendations

PL375C-201 as Primary Substitute:

The PL375C-201 is a direct parametric equivalent to the PL375MC-201. Both parts are Active product status and manufactured by the same supplier. All electrical, mechanical, and environmental specifications are identical.

Compliance Considerations:

• PL375MC-201: RoHS Compliant
• PL375C-201: ROHS3 Compliant

The PL375C-201 meets the more recent ROHS3 standard, indicating enhanced regulatory compliance. Both parts carry EAR99 export classification and are subject to REACH regulations (PL375C-201 explicitly noted as REACH Affected).

Package Differentiation:

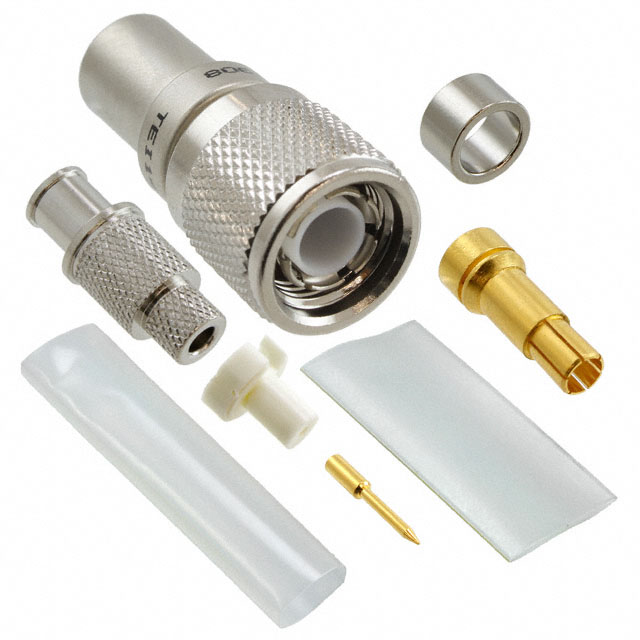

The PL375C-201 includes supplementary components (heat shrink and strain relief) not specified for the PL375MC-201. This packaging difference does not affect electrical or mechanical interchangeability but may influence procurement decisions based on assembly requirements.

Inventory Availability:

Current stock levels differ: PL375MC-201 (1083 pcs) versus PL375C-201 (852 pcs). Selection should account for project timeline and supply chain requirements.

Frequently Asked Questions (FAQ)

Q: Are PL375MC-201 and PL375C-201 electrically interchangeable?

A: Yes. Both parts share identical electrical specifications including 500 MHz maximum frequency, 400 V voltage rating, and non-constant impedance characteristics. They are suitable for direct substitution in applications requiring TRT twinaxial connectors with crimp termination.

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 represents the current iteration of the Restriction of Hazardous Substances directive with updated substance restrictions. Both designations indicate compliance with hazardous substance limitations. ROHS3 compliance on the PL375C-201 reflects alignment with the latest regulatory requirements.

Q: Does the inclusion of heat shrink and strain relief in the PL375C-201 package affect compatibility?

A: No. The supplementary components in the PL375C-201 package are assembly aids and do not alter the connector's electrical or mechanical interface. The core connector specifications remain identical to the PL375MC-201.

Q: Can I use PL375C-201 in place of PL375MC-201 in existing designs?

A: Yes. The PL375C-201 meets all parametric requirements for direct substitution. No design modifications are required. Verify that your procurement and compliance documentation account for the ROHS3 designation if regulatory tracking is necessary.

Q: What cable specifications are compatible with both connectors?

A: Both connectors are rated for M17/176-00002 cable group. This specification defines the compatible cable types for crimp termination with these twinaxial connectors.

Q: Are there any environmental or temperature limitations that differ between these parts?

A: No. Both parts operate across the identical temperature range of -65°C to 165°C and maintain the same mating cycle rating of 500 cycles. Environmental performance is equivalent.

Q: Which part should I select for new designs?

A: Selection should be based on supply chain availability, compliance documentation requirements, and assembly process needs. The PL375C-201 offers ROHS3 compliance and includes assembly components. The PL375MC-201 offers higher current inventory availability. Both are functionally equivalent for RF twinaxial applications.
