PL22CHLR110 Equivalent & Substitute Parts

Part Overview

The PL22CHLR110 is an LED panel indicator manufactured by Carlo Gavazzi Inc., designed for 110V AC/DC applications with 18mA current consumption. This red LED indicator features a 22mm round panel cutout and IP65 ingress protection rating, making it suitable for industrial control panels and signaling applications. The part is currently in active production status with 802 units available in stock. Substitute parts are identified to provide alternative sourcing options when the primary part number is unavailable or when inventory constraints require component flexibility.

Substiute Parts

PL22CHLR110

Carlo Gavazzi Inc.In Stock: 904PL22CHLR110 Datasheet

Current PartRFQ

PL22SFLR110

Carlo Gavazzi Inc.In Stock: 1007PL22SFLR110 Datasheet

Parametric EquivalentRFQ

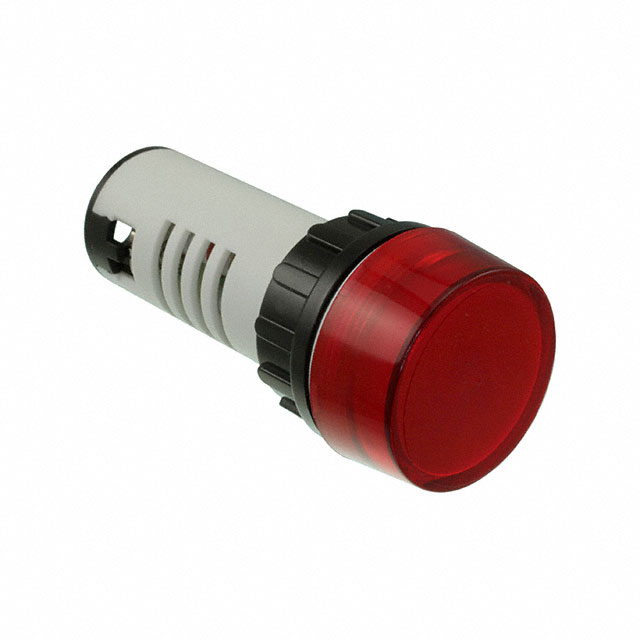

PL22SHLR110

Carlo Gavazzi Inc.In Stock: 754PL22SHLR110 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the PL22CHLR110 are identified based on strict parametric equivalence within the Carlo Gavazzi PL series. The substitution criteria are limited to the following parameters that must remain identical:

• Voltage rating: 110V AC/DC
• Current consumption: 18mA
• Lamp color: Red
• Panel cutout shape and dimensions: Round, 0.866" (22.00mm)
• Lens size and style: 29.00mm diameter, round with flat top
• Ingress protection rating: IP65
• Manufacturer: Carlo Gavazzi Inc.
• Series: PL
• Product status: Active

The substitute parts PL22SFLR110 and PL22SHLR110 meet all these criteria and are therefore electrically and mechanically interchangeable with the PL22CHLR110 in applications requiring these exact specifications.

Parameter Comparison

Engineering Selection Recommendations

All three part numbers—PL22CHLR110, PL22SFLR110, and PL22SHLR110—are manufactured by Carlo Gavazzi Inc. and maintain active product status. Each part carries identical electrical and mechanical specifications, ensuring direct interchangeability in 110V AC/DC red LED indicator applications. Selection between these parts should be based on inventory availability and lead time requirements. All parts comply with REACH regulations and carry EAR99 ECCN classification. The IP65 ingress protection rating is maintained across all variants, supporting deployment in industrial environments requiring moisture and dust resistance.

Frequently Asked Questions (FAQ)

Q: Can PL22SFLR110 and PL22SHLR110 be used interchangeably with PL22CHLR110?

A: Yes. All three parts share identical electrical ratings (110V AC/DC, 18mA), mechanical dimensions (22mm round cutout, 29mm lens diameter), lens style (round with flat top), and IP65 protection rating. They are direct parametric equivalents within the Carlo Gavazzi PL series.

Q: What determines whether a part can substitute for the PL22CHLR110?

A: Substitution is determined by matching the following parameters: voltage rating, current consumption, lamp color, panel cutout dimensions, lens size and style, ingress protection rating, and manufacturer series. Any deviation in these parameters disqualifies a part as a direct substitute.

Q: Are there differences in packaging or compliance between these parts?

A: All three parts are supplied in box packaging and share identical compliance status: REACH Unaffected, EAR99 ECCN classification, and HTSUS code 8541.41.0000. No packaging or regulatory differences exist between them.

Q: Which part should I select based on availability?

A: Selection should prioritize current inventory levels and procurement lead times. PL22SFLR110 currently has the highest inventory (953 units), followed by PL22CHLR110 (802 units) and PL22SHLR110 (735 units). All parts are in active production status.

Q: Are these parts suitable for both AC and DC applications?

A: Yes. All three parts are rated for 110V AC/DC operation, making them suitable for both alternating and direct current applications at the specified voltage.
