PL20-2 Equivalent & Substitute Parts – Coaxial Connectors (RF)

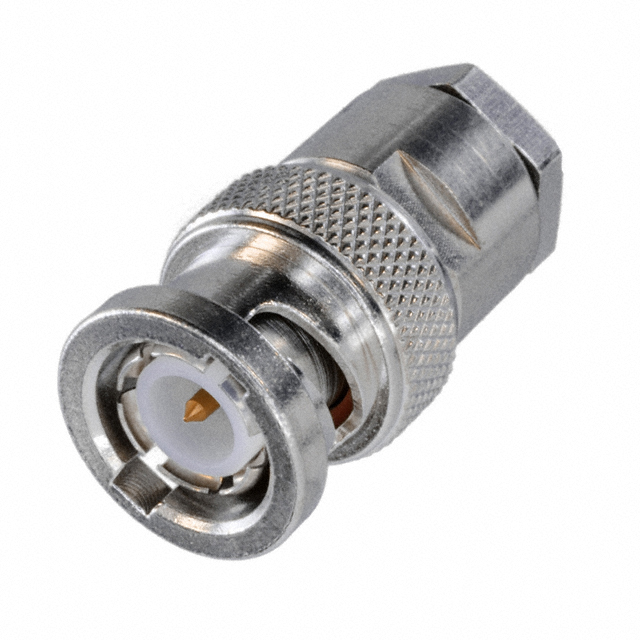

Part Overview
The Cinch Connectivity Solutions Trompeter PL20-2 is a BNC Connector Plug, Male Pin, 50 Ohms, Free Hanging (In-Line), Solder type, with a wrench clamp shield termination and bayonet lock fastening. This part is categorized under Coaxial Connectors (RF) and is suitable for use on RG-59 cable groups. It is currently active, with 706 pieces available from new original stock. Due to requirements such as continuity of supply, cable compatibility, or inventory levels, finding substitute or equivalent models with matching electrical and mechanical parameters is sometimes necessary.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | PL20-2 |
| Manufacturer | Cinch Connectivity Solutions Trompeter |
| Category | Coaxial Connectors (RF) |
| Description | CONN BNC PLUG STR 50 OHM SOLDER |
| Connector Style | BNC |
| Connector Type | Plug, Male Pin |
| Contact Termination | Solder |
| Shield Termination | Wrench Clamp |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Cable Group | RG-59 |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Number of Ports | 1 |
| Body Material | Brass |
| Body Finish | Nickel |
| Center Contact Plating | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Operating Temperature | -65°C ~ 165°C |
| Voltage Rating | 500 V |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Packaging | Bulk |
| Part Status | Active |
Substitute Part Grouping Explanation
Substitute and equivalent parts for PL20-2 are grouped based on matching key electrical, mechanical, and compliance parameters. The selection includes matching connector style (BNC), type (Plug, Male Pin), contact and shield termination (Solder, Wrench Clamp), impedance (50 Ohms), mounting (Free Hanging/In-Line), bayonet locking, frequency rating (4 GHz), voltage rating (500 V), body material and finish, and compliance status. The cable group is also considered to ensure mechanical compatibility. All parameters referenced are as explicitly described in the part specifications.
Parameter Comparison

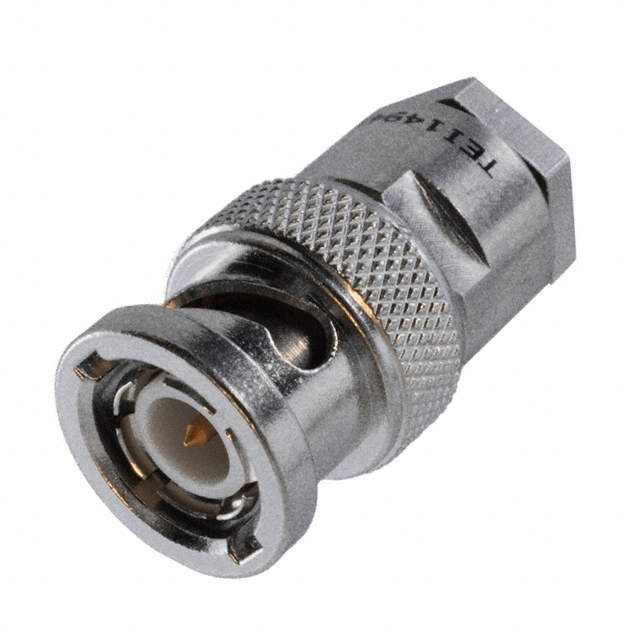

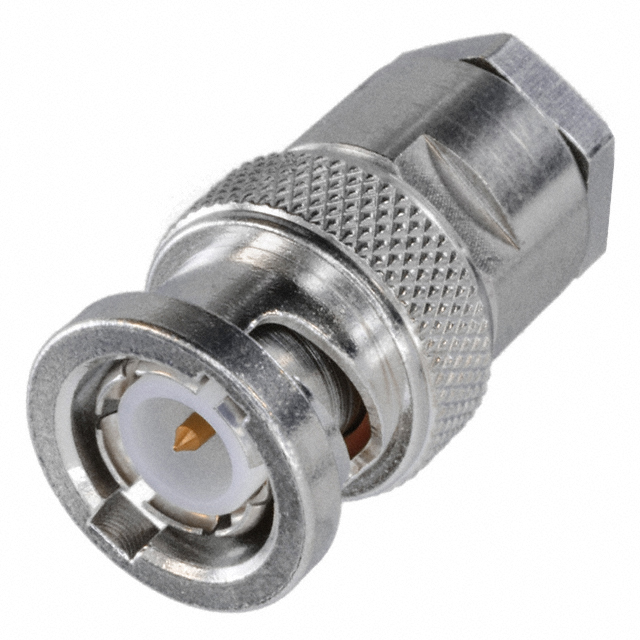

| Parameter | PL20-2 | PL20-3 | PL20-5 | VBS10-2031 |
|---|---|---|---|---|
| Manufacturer Part Number | PL20-2 | PL20-3 | PL20-5 | VBS10-2031 |
| Manufacturer | Cinch Connectivity Solutions Trompeter | Cinch Connectivity Solutions Trompeter | Cinch Connectivity Solutions Trompeter | Cinch Connectivity Solutions |
| Category | Coaxial Connectors (RF) | Coaxial Connectors (RF) | Coaxial Connectors (RF) | Coaxial Connectors (RF) |
| Description | CONN BNC PLUG STR 50 OHM SOLDER | CONN BNC PLUG STR 50 OHM SOLDER | CONN BNC PLUG STR 50 OHM SOLDER | CONN BNC PLUG STR 50 OHM SOLDER |
| Connector Style | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder | Solder |
| Shield Termination | Wrench Clamp | Wrench Clamp | Wrench Clamp | Wrench Clamp |
| Impedance | 50 Ohms | 50 Ohms | 50 Ohms | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Cable Group | RG-59 | RG-223 | RG-174 | RG-59 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Body Material | Brass | Brass | Brass | Brass |
| Body Finish | Nickel | Nickel | Nickel | Nickel |
| Center Contact Plating | Gold | Gold | Gold | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) | Polyoxymethylene (POM) |
| Operating Temperature | -65°C ~ 165°C | -65°C ~ 165°C | -65°C ~ 165°C | -55°C ~ 85°C |
| Voltage Rating | 500 V | 500 V | 500 V | 500 V |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Part Status | Active | Active | Active | Active |
Engineering Selection Recommendations
All substitute parts—PL20-3, PL20-5, and VBS10-2031—are listed as active, bulk-packaged inventory with RoHS compliant (or ROHS3 compliant) status and Moisture Sensitivity Level 1 (Unlimited). All substitutes meet the provided requirements for product status and regulatory compliance.
Frequently Asked Questions (FAQ)
Q1: What key parameters determine if a coaxial connector is a valid substitute?
A1: Key parameters are connector style, connector type, contact termination, shield termination, impedance, mounting type, cable group, fastening type, frequency rating, voltage rating, body material, body finish, center contact plating, dielectric material, operating temperature, RoHS status, and MSL.
Q2: How important is the cable group in substitution?
A2: The cable group determines mechanical fit between the connector and the coaxial cable. Only use connectors specified for the correct cable group.
Q3: Are the substitute parts RoHS compliant?
A3: All listed substitutes are RoHS or ROHS3 compliant and have MSL 1 (Unlimited).
Q4: Do all substitutes meet the same electrical and mechanical parameters as PL20-2?
A4: All substitutes match the critical parameters provided for the application, including impedance, mounting, fastening, voltage rating, and regulatory status. Differences exist only in cable compatibility or minor material specification as explicitly listed.
Q5: What packaging style do the substitutes use?
A5: All equivalent and substitute parts are supplied in bulk packaging format.
